Hidden inside your 60 cm cabinet, this powerful hood works in secret – just choose the door you like to get a uniform look in the kitchen. The LED light source provides even lighting over the hob.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

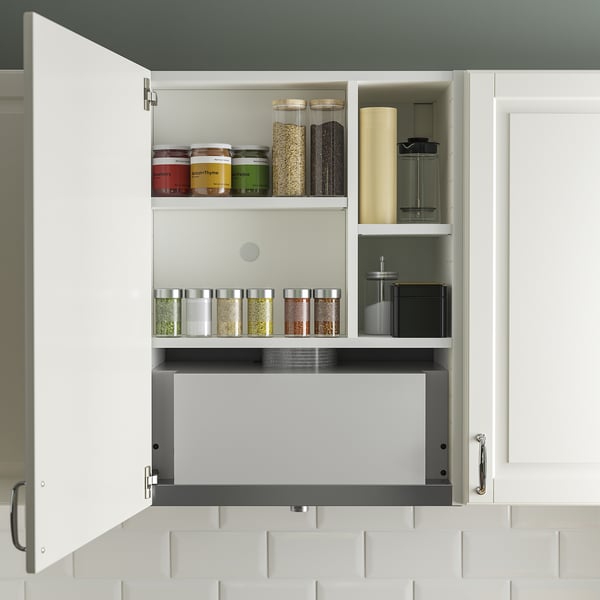

Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.

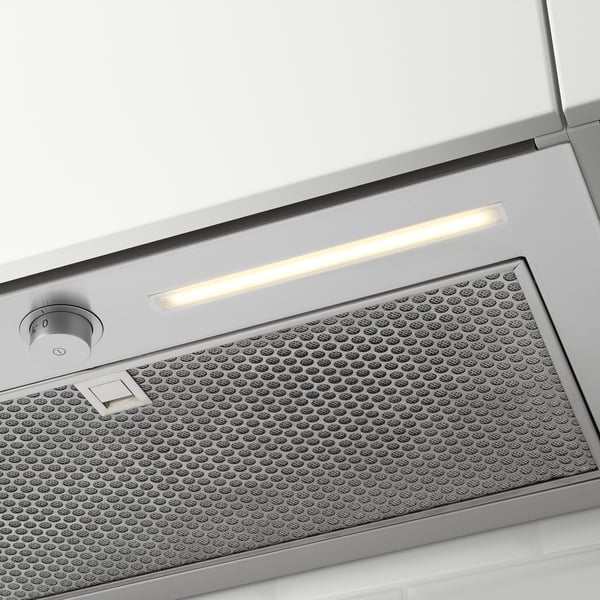

LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
Technical information
UNDERVERK
Built-in extractor hood, stainless steel, 60 cm
Article number703.891.39| Brand Name | IKEA |
| Model Identifier | UNDERVERK 70389139 |
| Annual energy consumption | 39 kWh/annum |
| Energy efficiency class | A+ |
| Fluid Dynamic Efficiency | 34.8 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 37.0 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 95.1 % |
| Grease Filtering Efficiency class | A |
| Air flow at minimum speed in normal use | 240 m³/h |
| Air flow at maximum speed in normal use | 630 m³/h |
| Air flow at maximum speed in normal use, recirculation | 365 m³/h |
| Air flow at intensive or boost setting | n/a m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 45 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 64 dB |
| Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation | 79 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | n/a dB |
| Power consumption in Off mode | 0 Watt |
| Power consumption in standby mode | 0 Watt |

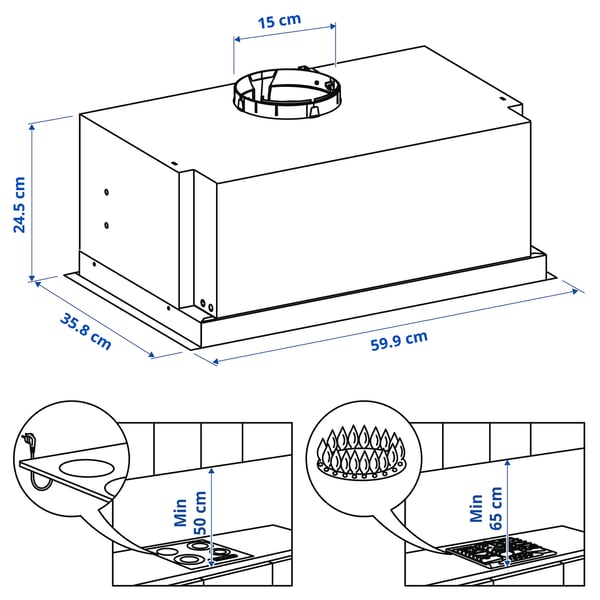

Measurements
- Width: 59.9 cm
- Depth: 35.8 cm
- Height: 24.5 cm
- Weight: 11.00 kg
- Cord length: 110.0 cm
- Motor power: 250 W
Customer reviews
Recommended for you
Find your perfect appliance!
Discover the IKEA Appliance Guide, here to help you find the perfect appliance. Answer a few simple questions and we’ll guide you to the ideal oven, fridge and more for your home. Start your journey and choose with ease!
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
