2 year guarantee
Kitchen hood in white with LED lighting and all the basic functions you need. It can be mounted in a wall cabinet for a uniform look in the kitchen. Combines with LAGAN oven and LAGAN hob.
Product details
2-year guarantee. Read about the terms in the guarantee brochure.
The included LED bulb provides energy saving.
Control panel placed at front for easy access and use.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Technical information
LAGAN

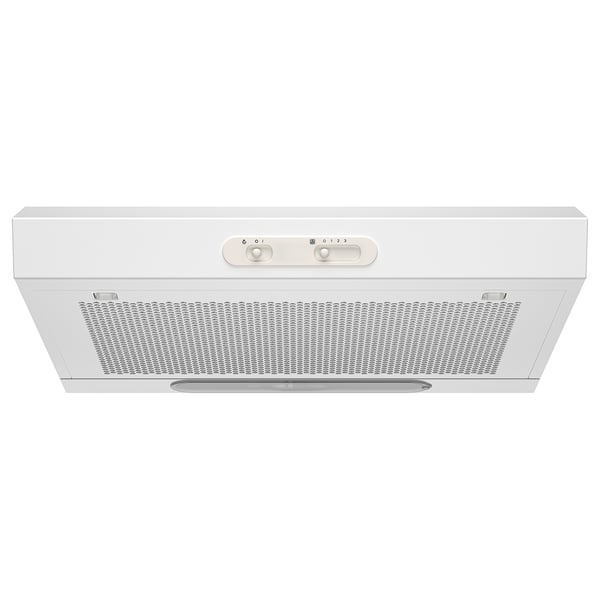

Wall mounted extractor hood, white, 60 cm
Article number504.013.83| Brand Name | IKEA |
| Model Identifier | LAGAN 50401383 |
| Annual energy consumption | 63 kWh/annum |
| Energy efficiency class | D |
| Fluid Dynamic Efficiency | 8,1 % |
| Fluid Dynamic Efficiency class | E |
| Lighting Efficiency | 29 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 66 % |
| Grease Filtering Efficiency class | D |
| Air flow at minimum speed in normal use | 115 m³/h |
| Air flow at maximum speed in normal use | 272 m³/h |
| Air flow at maximum speed in normal use, recirculation | 75 m³/h |
| Air flow at intensive or boost setting | n.a m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 52 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 71 dB |
| Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation | 71 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | n.a dB |
| Power consumption in Off mode | n.a Watt |
| Power consumption in standby mode | n.a Watt |

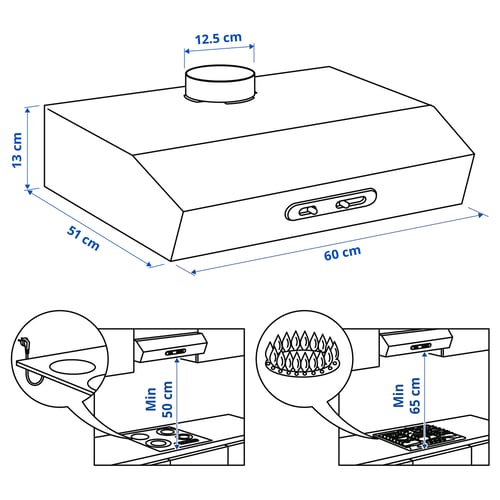

Measurements
- Width: 60 cm
- Depth: 51 cm
- Height: 13 cm
- Cord length: 133.0 cm
- Weight: 7.20 kg
- Motor power: 118 W
Customer reviews
Recommended for you
Find your perfect appliance!
Discover the IKEA Appliance Guide, here to help you find the perfect appliance. Answer a few simple questions and we’ll guide you to the ideal oven, fridge and more for your home. Start your journey and choose with ease!
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
