How to get it
Bamboo is a natural, hardwearing material that gives a warm expression.
Product details

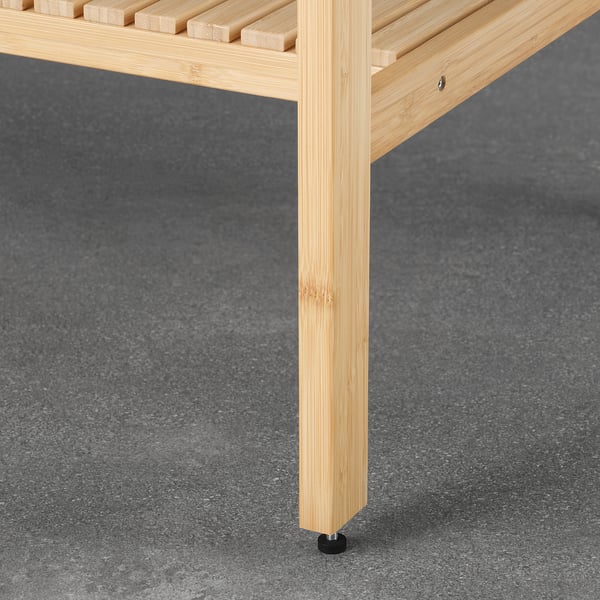

Adjustable feet for increased stability and protection against floor moisture.
The open shelf makes it easy for you to see and reach your things.

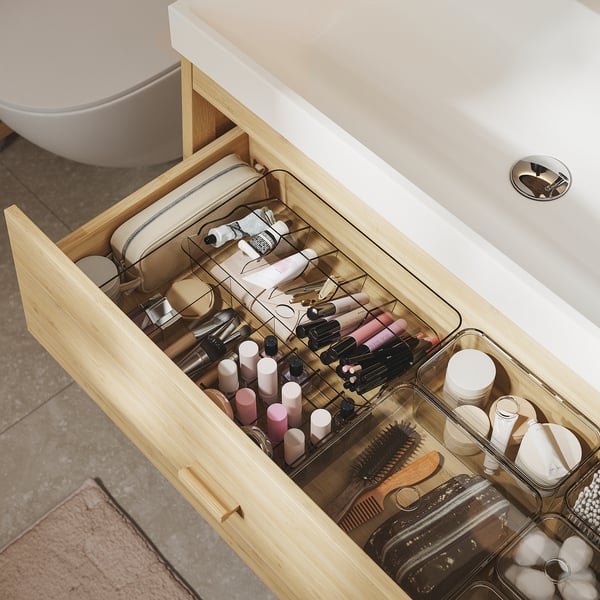

The roomy drawer has space for things like brushes, sprays and accessories while towels are conveniently kept on the shelf underneath.
The smooth-running drawer with pull-out stop opens all the way for a good overview without falling out.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Basematerial/ Drawer front/ Drawer side:
- Bamboo, Clear acrylic lacquer
- Side panel:
- Fibreboard, Bamboo veneer
- Drawer bottom:
- Fibreboard, Bamboo veneer, Clear acrylic lacquer
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Safety and compliance
Assembly and documents
Assembly instructions
RÅGRUND Open wash-stand with 1 drawer506.105.79BACKSJÖN Wash-basin805.451.20BROGRUND Wash-basin mixer tap905.320.99RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
BACKSJÖN Wash-basin805.451.20BROGRUND Wash-basin mixer tap905.320.99BROGRUND Wash-basin mixer tap905.320.99Technical information
BROGRUND
Wash-basin mixer tap, chrome-plated
Article Number905.320.99| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

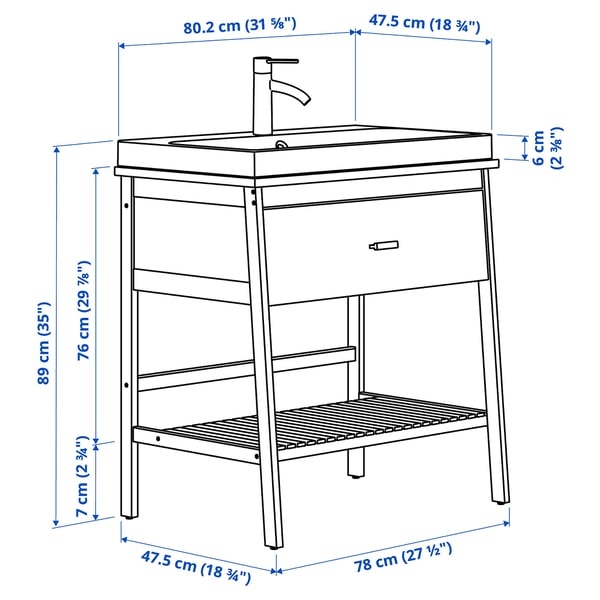

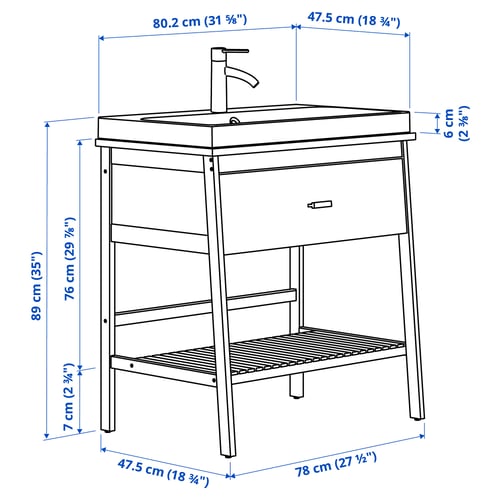

Measurements
- Width: 80.2 cm
- Depth: 47.5 cm
- Height: 89 cm
Packaging
RÅGRUND
Article Number506.105.79- Width: 56 cm
- Height: 8 cm
- Length: 84 cm
- Weight: 13.61 kg
- Package(s): 1
BACKSJÖN
Article Number805.451.20- Width: 52 cm
- Height: 17 cm
- Length: 90 cm
- Weight: 15.30 kg
- Package(s): 1
BROGRUND
Article Number905.320.99- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.44 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
