This solution is all about symmetry and peaceful mornings where you have your own private space in a shared space. Designed for two with handy accessories to keep things nice and tidy.
Product details
Cabinet code ENHET B108
This combination offers a harmonious mix of open and closed storage with two wash-basins and two mirror cabinets that give you your own space while brushing your teeth and preparing for the day ahead.
Different types of storage complement each other. The wash-basin cabinets with drawers gives a good overview of smaller items and the open frame with shelves is ideal for baskets and folded towels.
You can easily add ENHET accessories to extend the use of your storage combination. And best of all – you don’t have to drill. Sold separately.
The unique wedge dowels make assembly easy and the fittings are nearly invisible.
With white doors and drawer fronts you create a clean, bright and fresh expression that you can match with accents in all colours of the rainbow. Easy to enjoy and always in style.
Good to know
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Knob or handle, sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Basematerial:
- Particleboard
- Front side/ Backside:
- Plastic foil
- Edge:
- Plastic edging
- Side panel:
- Particle- and fibreboard with honeycomb paper filling (100% recycled paper), Plastic foil, Plastic edging
- Bottom panel/ Back rail:
- Particleboard, Plastic foil
- Drawer:
- Steel, Epoxy/polyester powder coating
- Drawer bottom:
- Fibreboard, Plastic foil
- Tubes:
- Steel, Powder coating
- Shelf:
- Galvanized steel, Powder coating
- Wedge:
- Steel, Epoxy/Acrylic coating
- Door:
- Particleboard, Plastic foil, Plastic edging
- Mirror:
- Glass, Plastic foil
- Rail:
- Steel, Polyester powder coating
- Side panel/ Bottom panel/ Top panel/ Shelf:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.
Safety and compliance
Assembly and documents
Assembly instructions
Advice and care instructions
ENHET Drawer front704.521.64ENHET Base cb f washbasin w 2 drawers004.405.13ENHET Base cb f washbasin w 2 drawers004.405.13ENHET Base fr w shelves604.489.50ENHET Mirror door904.577.35ENHET Wall cb w 2 shelves104.404.47ENHET Wall cb w 2 shelves104.404.47ENHET Wall fr w shelves704.489.35TVÄLLEN Single wash-basin804.508.24PILKÅN Wash-basin mixer tap505.328.50PILKÅN Wash-basin mixer tap505.328.50Technical information
PILKÅN
Wash-basin mixer tap, chrome-plated
Article Number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

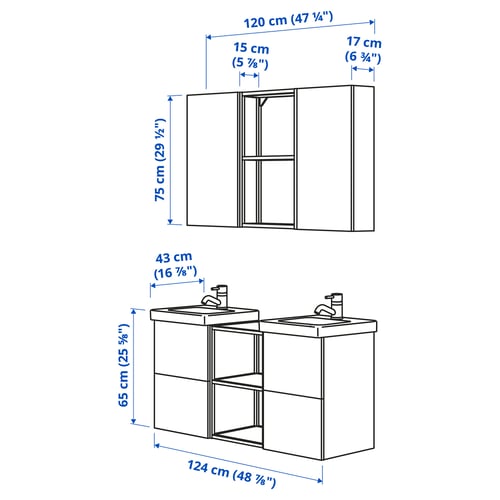

Measurements
- Width: 124 cm
- Depth: 43 cm
- Height: 65 cm
Packaging
ENHET
Article Number704.521.64- Width: 31 cm
- Height: 4 cm
- Length: 46 cm
- Weight: 2.89 kg
- Package(s): 2
ENHET
Article Number004.405.13- Width: 41 cm
- Height: 12 cm
- Length: 65 cm
- Weight: 12.78 kg
- Package(s): 2
ENHET
Article Number604.489.50- Width: 41 cm
- Height: 6 cm
- Length: 74 cm
- Weight: 6.80 kg
- Package(s): 1
ENHET
Article Number904.577.35- Width: 43 cm
- Height: 2 cm
- Length: 81 cm
- Weight: 5.73 kg
- Package(s): 2
ENHET
Article Number104.404.47- Width: 23 cm
- Height: 9 cm
- Length: 80 cm
- Weight: 6.76 kg
- Package(s): 2
ENHET
Article Number704.489.35- Width: 18 cm
- Height: 6 cm
- Length: 77 cm
- Weight: 4.31 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 2
TVÄLLEN
Article Number804.508.24- Width: 48 cm
- Height: 20 cm
- Length: 48 cm
- Weight: 13.70 kg
- Package(s): 2
PILKÅN
Article Number505.328.50- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 2
