UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm
UTDRAG Built-in extractor hood, stainless steel, 60 cm

UTDRAG Built-in extractor hood, stainless steel, 60 cm

Price £ 149
Product fiche
Flexible pipe for fan and charcoal filter sold separately.

Must be completed with

How to get it

Available services
Product features

  • 5 year guarantee

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.

Article Number903.923.29

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

Pulls out to provide a larger exhaust area.

You can easily remove and clean the grease filter in the dishwasher.

Designer

IKEA of Sweden

Article Number903.923.29

Good to know

Extraction rate in exhausting mode: 340 m³/h.

Noise level at max. exhaust speed: 67 dB (A).

Extraction rate in re-circulation mode: 140 m³/h.

Noise level at max. re-circulation speed: 72 dB (A).

Voltage: 220-240V.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.

Built in extractor hood with 3 different speeds.

Flexible pipe for fan and charcoal filter sold separately.

IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

Materials and care

Care

Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Safety and compliance

This product bears the UK CA mark.This product bears the CE mark.

Technical information

UTDRAG

Built-in extractor hood, stainless steel, 60 cm

Article Number903.923.29
Lighting Efficiency16 Lux/watt
Lighting Efficiency classD
Power consumption in standby moden.a. Watt
Grease Filtering Efficiency classB
Air flow at minimum speed in normal use170 m³/h
Energy efficiency classB
Power consumption in Off mode0 Watt
Airborne acoustical A-weighted sound power emissions at intensive or boost settingN/A dB
Brand NameIKEA
Fluid Dynamic Efficiency18,1 %
Model IdentifierUTDRAG 903.923.29
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use54 dB
Fluid Dynamic Efficiency classC
Grease Filtering Efficiency85,1 %
Air flow at maximum speed in normal use340 m³/h
Air flow at intensive or boost settingN/A m³/h
Annual energy consumption39 kWh/annum
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use67 dB

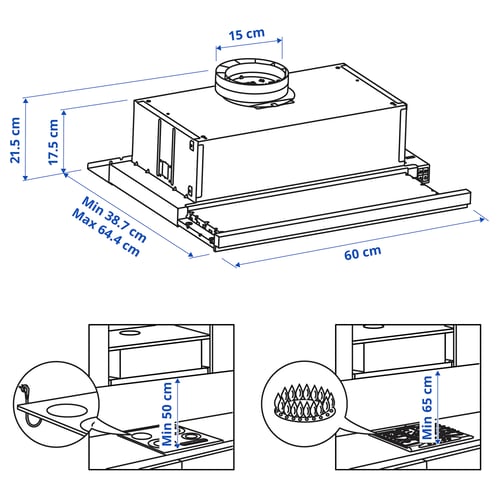

Weight & measurements

  • Width: 60.0 cm
  • Min. depth: 38.7 cm
  • Max. depth: 64.4 cm
  • Height: 21.5 cm
  • Weight: 7.60 kg
  • Cord length: 109.0 cm
  • Motor power: 110 W

Package details

UTDRAG

Article Number903.923.29
  • Width: 38 cm
  • Height: 27 cm
  • Length: 68 cm
  • Weight: 8.60 kg
  • Package(s): 1

Reviews

Cheap and awfulAnonymous reviewerInstalling the mesh grease filters is a nightmare. Sharp edges and just won’t sit right. Dissatisfied with the quality and ease of use. Looks and feels cheap.2
Looks good but recirculating is nastyAnonymous reviewerTotally happy with the look and feel of this, and find the lights v helpful for cooking. But I'm using this in recirculating mode and after 12 months of use it has created a horrible grease blotch on the wall where the air vents. I've just been through the manual assuming we'd missed a filter, but no the 2 charcoal filters are on as per the instructions. We're both vegetarian and don't deep fry!3
Great productAnonymous reviewerEasy to secure. Easy to operate!5
Stainless Steel trim is not stainlessAnonymous reviewerThe stainless steel pull out handle has started to tarnish after a few months of use. Really disappointed!3
Not best qualityAnonymous reviewerThe finish could be better, control buttons not sitting square to cabinet. Unit doesn't feel particularly robust. Unit is relatively noisy compared to other manufacturers.4
Neat and smartAnonymous reviewerExcellent has storage and a nice sleek look works well5
Integrated Cooker HoodAnonymous reviewerBought this cooker hood because it matched what was similar to what was installed as I have an IKEA kitchen. Checked my measurements because it was integrated so sizes needed to be accurate. It fitted perfectly with some tweaks to the fan tubing for an external exhaust. It is very light in construction which made it easier for fitting, good illumination from the 2 lights, powerful exhaust fan with 3 speed settings.5
Happy with our extractor fanAnonymous reviewerLovely discreet extractor fan, works well, handy lights which cast a nice glow into the room at night5
Quality cheap and flimsyAnonymous reviewer I replaced this but is so much thinner less sturdy not as stylish or efficient. Poor Quality Very fiddly to install 2
Range hoodAnonymous reviewerAverage. Very noisy and you can’t Turn on the lights separately from the fan2
Discrete extractorAnonymous reviewerThis extractor unit is not too difficult to fit and is hidden completely within a standard upper cabinet. The amount of storage space left within the cabinet is not great, but still very useful. Ours was connected to an outside vent through a hole in the wall and there is an electrical socket (now hidden) behind the cabinet. If there was an extractor there previously, this unit should fit, but please do measure accurately. When installed and you open the door you see one shelf with the metal extractor tube occupying it. We got an extra shelf, cut it to fit halfway down, fitted it vertically and it covers it nicely. 5
Quality slipped now very cheap and flimsyAnonymous reviewerI bought this to replace an existing Utdrag in a rental flat that had broken after 5 years thinking this would be the same. Its definitely not and has been redesigned, in contrast to the one I replaced everything is thinner less sturdy fiddly to fit and not as stylish or efficient. I have another one from 10 years ago that is still working and excellent - the new one is just a watered down version and not in a good way...1
Quality slipped now very cheap and flimsyAnonymous reviewerI bought this to replace an existing Utdrag in a rental flat that had broken after 5 years thinking this would be the same. Its definitely not and has been redesigned, in contrast to the one I replaced everything is thinner less sturdy fiddly to fit and not as stylish or efficient. I have another one from 10 years ago that is still working and excellent - the new one is just a watered down version and not in a good way...1
the hood product works asAnonymous reviewerthe hood product works as you expected5
Compact and great priceAnonymous reviewerCompact and great price1
not bad but certainly not greatAnonymous reviewerthis is the second one we had to buy to replace the existing one (Ikea kitchen easy swap like for like). anyway not the best suction, best to use 125mm ducting but the worst part was the light won't stay on unless the hood is pulled fully out3
It's just o.k.Anonymous reviewerIt is o.k. looks cheap and doesn't add anything looks of kitchen. Works ok.2

Customer reviews

3.2Average rating
17Reviews

Quality

Sensitive to noise or have an open-plan home?

For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.

Function solution

Sound levels

Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
