Built-in stainless steel kitchen hood, featuring led lights and a sleek design.
UTDRAG Built-in extractor hood, stainless steel, 60 cm

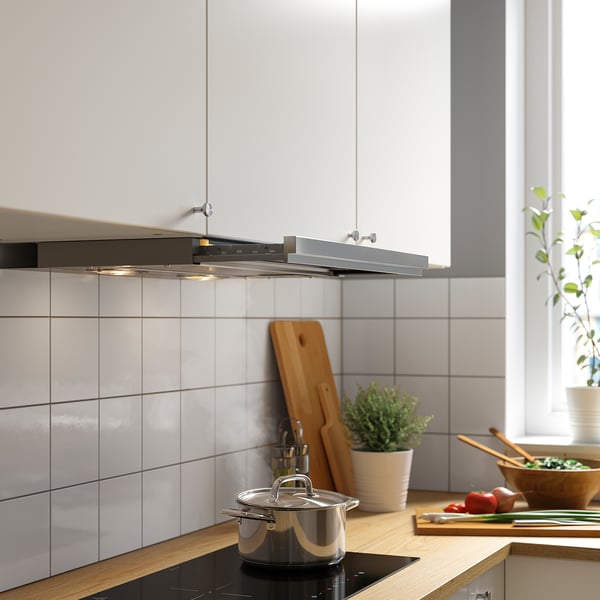

Modern kitchen with white UTDRAG hood above wooden countertop, cookware, and plant.

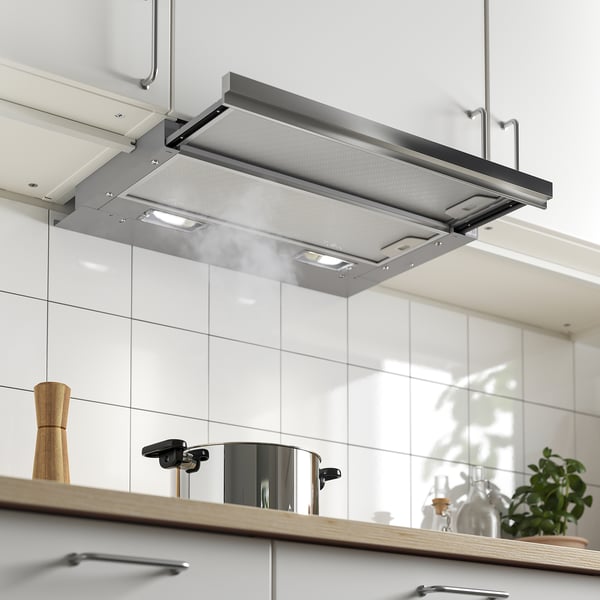

Stainless steel range hood embedded in white kitchen cabinet, illuminated with led lights, showing its extracted state.

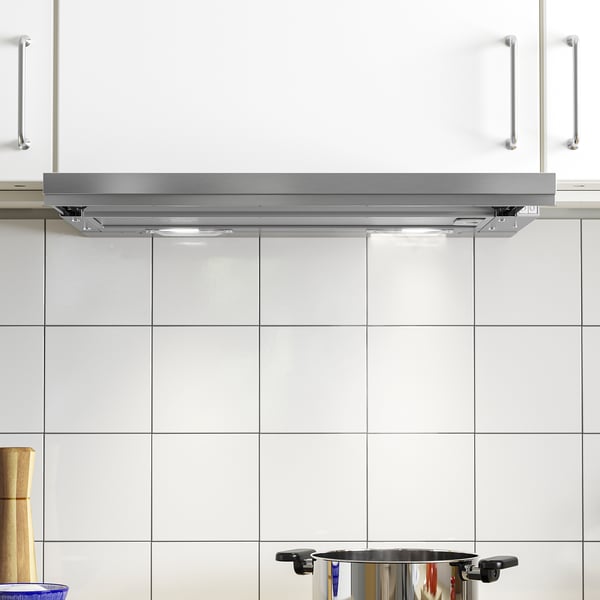

Modern kitchen with built-in UTDRAG range hood, led lights, and extractor fan.

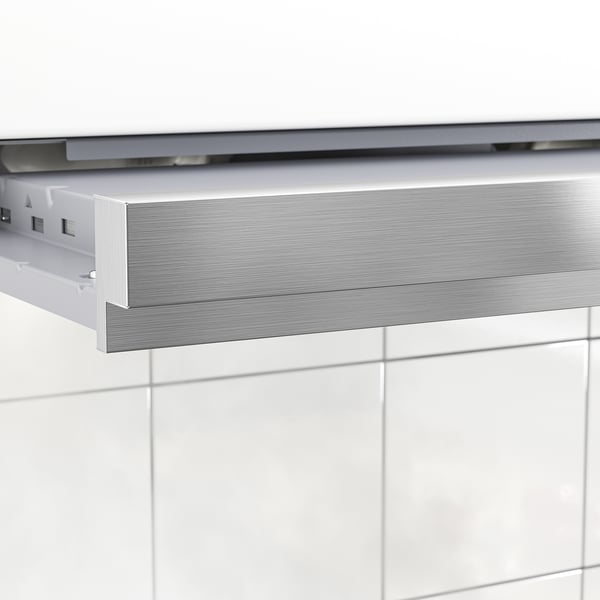

Built-in extractor hood with sleek, modern design. Mounted in cabinet; pulls out for use. Led lighting included.

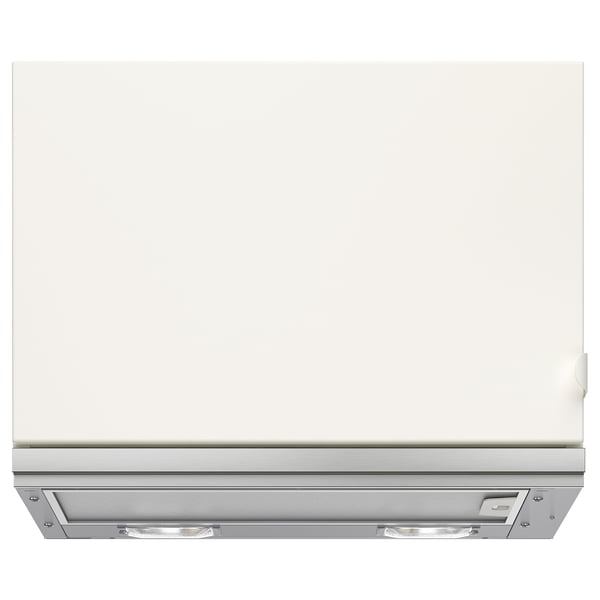

Open kitchen cabinet with UTDRAG built-in extractor; reveals pull-out lower part, led light, and shelves with jars and kitchen items.
Modern kitchen with white cabinets, plants.

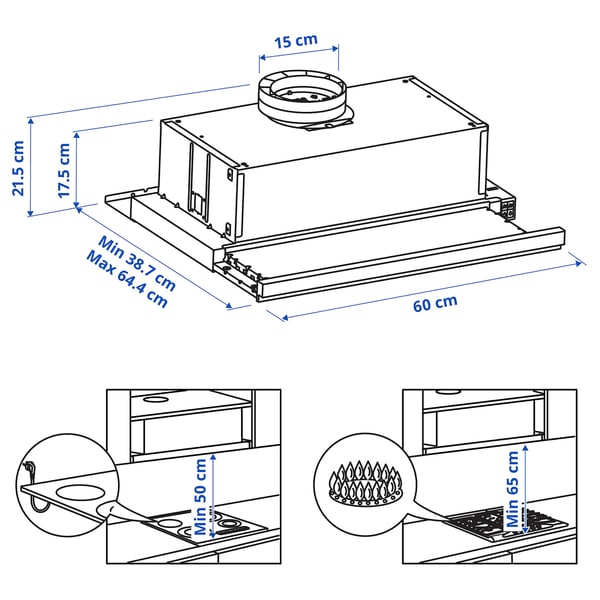

Illustration with measurements for the product: UTDRAG.

UTDRAG Built-in extractor hood, stainless steel, 60 cm

Price 149€
Product fiche
(222)
Flexible pipe for fan and charcoal filter sold separately.

Must be completed with

NYTTIG TUB 150: tall, silver, cylindrical aluminum. Intricate wire mesh design.

NYTTIG TUB 150 flexible pipe for fan

Price 25€

How to get it

  • 5 year guarantee

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.

Article number103.891.42

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

Pulls out to provide a larger exhaust area.

You can easily remove and clean the grease filter in the dishwasher.

Designer

IKEA of Sweden

  • Extraction rate in exhausting mode: 340 m³/h.

    Noise level at max. exhaust speed: 67 dB (A).

    Extraction rate in re-circulation mode: 140 m³/h.

    Noise level at max. re-circulation speed: 72 dB (A).

    Voltage: 220-240V.

    For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

    For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.

    Built-in extractor hood with 3 different speeds.

    Flexible pipe for fan and charcoal filter sold separately.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the Serbian mark of conformity.This product bears the CE mark.

  • Assembly instructions

    UTDRAG Built-in extractor hood103.891.42

    Advice and care instructions

    UTDRAG Built-in extractor hood103.891.42UTDRAG Built-in extractor hood103.891.42UTDRAG Built-in extractor hood103.891.42UTDRAG Built-in extractor hood103.891.42

Technical information

UTDRAG

Built-in extractor hood, stainless steel, 60 cm

Article number103.891.42
Brand NameIKEA
Model IdentifierUTDRAG 103.891.42
Annual energy consumption39 kWh/annum
Energy efficiency classB
Fluid Dynamic Efficiency18,1 %
Fluid Dynamic Efficiency classC
Lighting Efficiency16 Lux/watt
Lighting Efficiency classD
Grease Filtering Efficiency85,1 %
Grease Filtering Efficiency classB
Air flow at minimum speed in normal use170 m³/h
Air flow at maximum speed in normal use340 m³/h
Air flow at maximum speed in normal use, recirculation140 m³/h
Air flow at intensive or boost settingn/a m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use54 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use67 dB
Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation72 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingn/a dB
Power consumption in Off mode0 Watt
Power consumption in standby moden.a. Watt

Measurements

  • Width: 60.0 cm
  • Min. depth: 38.7 cm
  • Max. depth: 64.4 cm
  • Height: 21.5 cm
  • Weight: 7.60 kg
  • Cord length: 109.0 cm
  • Motor power: 110 W

  • UTDRAG

    Article number103.891.42
    • Width: 38 cm
    • Height: 27 cm
    • Length: 68 cm
    • Weight: 8.60 kg
    • Package(s): 1
