UNDERVERK white hood, hidden design
Modern kitchen with gray cabinets, black cooktop, stainless hood, marble backsplash, and countertop utensils and greenery.
Modern kitchen with marble backsplash and wooden utensils.
Modern kitchen with stainless hood emitting steam, integrated above marble backsplash, lighted and functional.
Kitchen cabinet with spice jars and containers, including hidden extractor hood.

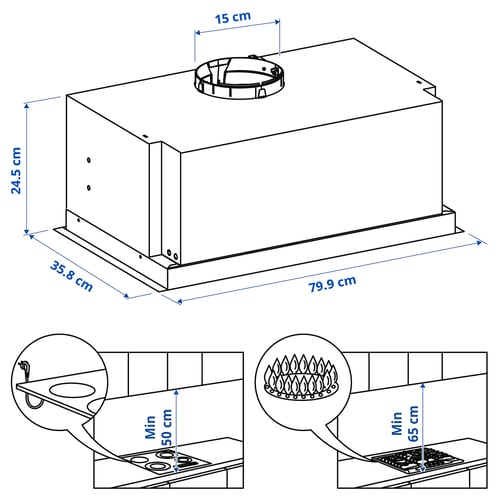

Illustration with measurements for the product: UNDERVERK.

UNDERVERK Built-in extractor hood, stainless steel, 80 cm

Price 399€
Product fiche
(84)
Flexible pipe for fan and charcoal filter sold separately.

Must be completed with

NYTTIG TUB 150: tall, silver, cylindrical aluminum. Intricate wire mesh design.

NYTTIG TUB 150 flexible pipe for fan

Price 25€

How to get it

  • 5 year guarantee

Hidden inside your 80 cm cabinet, this powerful hood works in secret – just choose the doors you like to get a uniform look in the kitchen. The LED light source provides even lighting over the hob.

Article number103.939.74

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Designer

IKEA of Sweden

  • Extraction rate in exhausting mode: 630 m³/h.

    Noise level at max. exhaust speed: 64 dB (A).

    Extraction rate in re-circulation mode: 365 m³/h.

    Noise level at max. re-circulation speed: 79 dB (A).

    Voltage: 220-240V.

    Wall-mounted extractor hood with 3 different speeds.

    Cabinet, front(s), hinges and knob(s) or handle(s) sold separately.

    For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

    For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

    Developed to fit into METOD kitchen system.

    Flexible pipe for fan and charcoal filter sold separately.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the Serbian mark of conformity.This product bears the CE mark.

  • Assembly instructions

    UNDERVERK Built-in extractor hood103.939.74

    Advice and care instructions

    UNDERVERK Built-in extractor hood103.939.74UNDERVERK Built-in extractor hood103.939.74UNDERVERK Built-in extractor hood103.939.74UNDERVERK Built-in extractor hood103.939.74

Technical information

UNDERVERK

Built-in extractor hood, stainless steel, 80 cm

Article number103.939.74
Brand NameIKEA
Model IdentifierUNDERVERK 10393974
Annual energy consumption39 kWh/annum
Energy efficiency classA+
Fluid Dynamic Efficiency34.8 %
Fluid Dynamic Efficiency classA
Lighting Efficiency37.0 Lux/watt
Lighting Efficiency classA
Grease Filtering Efficiency95.1 %
Grease Filtering Efficiency classA
Air flow at minimum speed in normal use240 m³/h
Air flow at maximum speed in normal use630 m³/h
Air flow at maximum speed in normal use, recirculation365 m³/h
Air flow at intensive or boost settingn/a m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use45 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use64 dB
Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation79 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingn/a dB
Power consumption in Off mode0 Watt
Power consumption in standby mode0 Watt

Measurements

  • Width: 79.9 cm
  • Depth: 35.8 cm
  • Height: 24.5 cm
  • Cord length: 110.0 cm
  • Weight: 12.00 kg
  • Motor power: 250 W

  • UNDERVERK

    Article number103.939.74
    • Width: 43 cm
    • Height: 34 cm
    • Length: 85 cm
    • Weight: 11.40 kg
    • Package(s): 1

Customer reviews

3Average rating
84Reviews
Guiding

Find your perfect appliance!

Discover the IKEA Appliance Guide, here to help you find the perfect appliance. Answer a few simple questions and we’ll guide you to the ideal oven, fridge and more for your home. Start your journey and choose with ease!

Function solution

Sound levels

Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
