LAGAN Wall mounted extractor hood, white, 60 cm
Must be completed with
How to get it
Kitchen hood in white with LED lighting and all the basic functions you need. It can be mounted in a wall cabinet for a uniform look in the kitchen. Combines with LAGAN oven and LAGAN hob.
Product details
The included LED bulb provides energy saving.
Control panel placed at front for easy access and use.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 273 m³/h.
Noise level at max. exhaust speed: 71 dB (A).
Extraction rate in re-circulation mode: 75 m³/h.
Noise level at max. re-circulation speed: 71 dB (A).
Voltage: 220-230V.

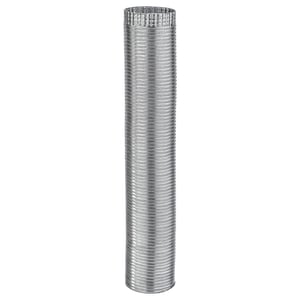

For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG TUB 125 flexible pipe and NYTTIG FIL 900 charcoal filter.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Wall mounted extractor hood with 3 different speeds.
Flexible pipe for fan and charcoal filter sold separately.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
LAGAN Wall mounted extractor hood705.093.30Advice and care instructions

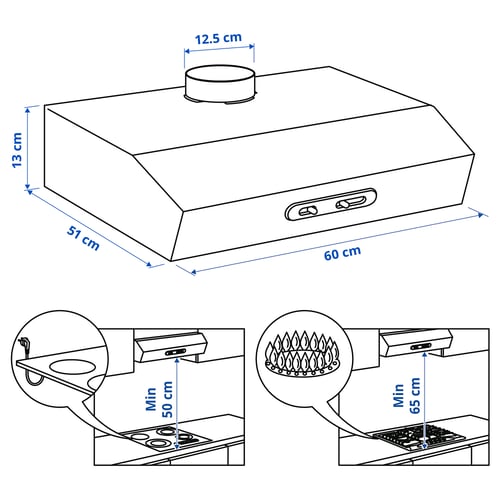

LAGAN Wall mounted extractor hood705.093.30LAGAN Wall mounted extractor hood705.093.30Measurements
- Width: 60 cm
- Depth: 51 cm
- Height: 13 cm
- Cord length: 133.0 cm
- Weight: 7.20 kg
- Motor power: 115 W
Packaging
LAGAN
Article number705.093.30- Width: 54 cm
- Height: 15 cm
- Length: 62 cm
- Weight: 7.12 kg
- Package(s): 1
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
