5 year guarantee
A 5-zone gas hob with a bold look for the aspiring chef. Electronic ignition and a sleek, easy-clean glass surface. No wobbling pots or pans thanks to the sturdy cast iron supports that make cooking safer.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
No need to use matches or a lighter as the burners ignite by just pushing in and turning the knobs.
You can cook with more precision because the burners give you better control over both heat and cooking time.
Cooking is easier and safer thanks to sturdy cast iron pan supports that keep your pots and pans stable when you cook.

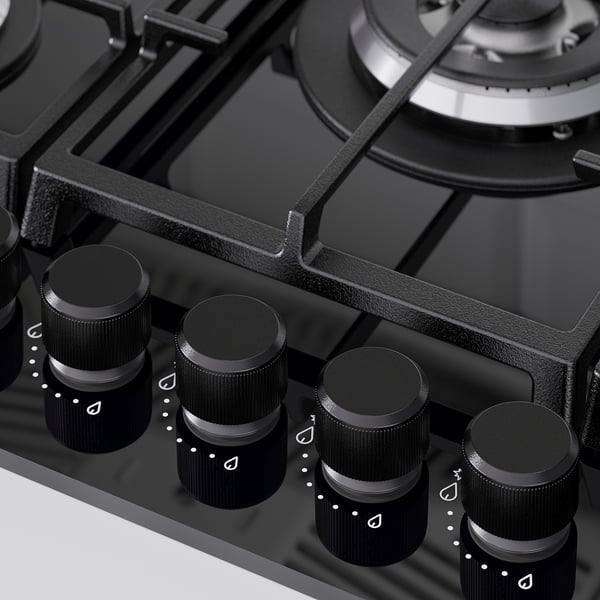

Easier to see and adjust the burners as the control knobs are conveniently located at the front.
The smooth gas on glass surface is easier to clean than conventional gas hobs.
Integrated safety valves shut off the gas flow automatically in case the flame goes out.
IKEA of Sweden
Good to know
Hob with gas cooking zones:
Right front: 5 cm –1000W.
Left front: 6.2 cm – 2000W.
Left rear: 6.2 cm – 2000W.
Right rear: 6.2 cm - 4000W.
Centre: 11.5 cm – 4000W.
Wired-in installation. Installation to be made by a qualified installer.
Installation of this appliance must comply with local regulations.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.
Cord/cable included.
Plug not included.
Installation kit included.
Conversion kit included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wash burner caps and crowns by hand. Use soapy water and dry with a soft cloth before use.
Wash pan supports by hand. Use soapy water and dry with a soft cloth before use.
After cleaning, be sure to wipe dry with a soft cloth.
Remove stains and food residue after each use using a cloth damped with warm water and a mild detergent.
Safety and compliance
Assembly and documents
Assembly instructions
VASASTAN Gas hob505.236.00Advice and care instructions
VASASTAN Gas hob505.236.00VASASTAN Gas hob505.236.00VASASTAN Gas hob505.236.00Weight & measurements

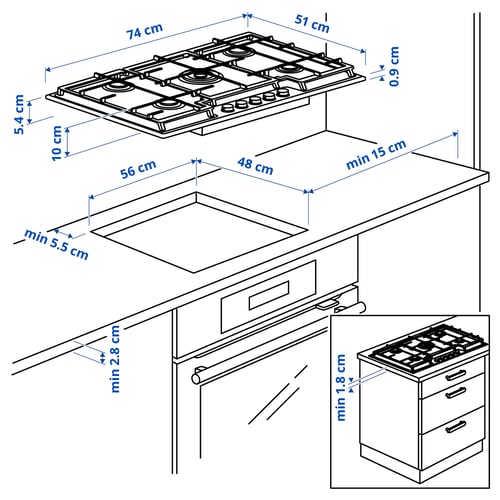

- Width: 74.0 cm
- Depth: 51.0 cm
- Height: 10.0 cm
- Weight: 17.00 kg
- Cord length: 110.0 cm
- Cut-out width: 56.0 cm
- Cut-out depth: 48.0 cm
Package details
VASASTAN
Article Number505.236.00- Width: 60 cm
- Height: 15 cm
- Length: 85 cm
- Weight: 19.00 kg
- Package(s): 1
