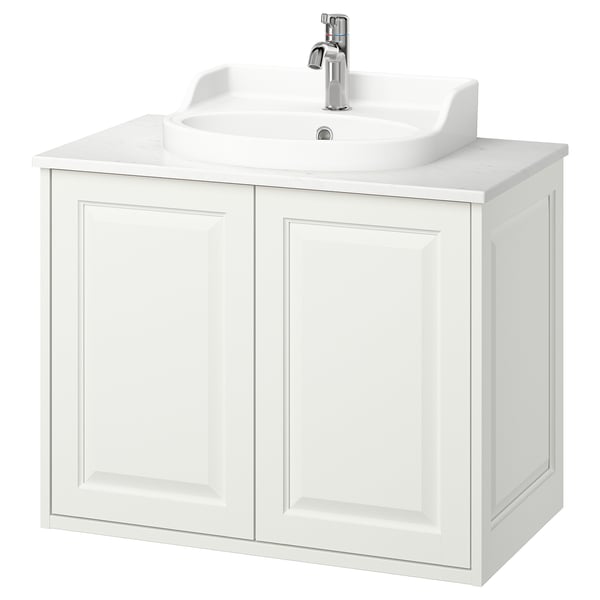

TÄNNFORSEN / RUTSJÖN Wash-stnd w doors/wash-basin/tap, white/white marble effect, 82x49x76 cm
Must be completed with
How to get it
10 year guarantee
TÄNNFORSEN bathroom furniture expresses classic elegance with bevelled edges. This wash-stand with doors, semi-recessed wash-basin and countertop creates a personal centrepiece with a crafted look.
Product details
Closed storage with capacity for bulkier or taller items, like bottles and baskets, keeping them dust-free and out of sight.
A truly classic look in white that is enhanced by beautiful details such as bevelled panels. An expression that breathes tradition and will never become outdated.
The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
Utilise the full depth of the shelf for storage or fold ¾ of the shelf to make space for piping.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with doors, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Side frame/ Support rail/ Door frame:
- Fibreboard, Plastic foil (min. 70% recycled), Plastic edging, Plastic edging (min. 50% recycled)
- Inner side filling/ Door filling:
- Fibreboard, Plastic foil (min. 70% recycled), Melamine foil
- Bottom panel:
- Particleboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Shelf/ Bottom rail:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Fibreboard, Plastic foil, Melamine foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
TÄNNFORSEN Wash-stand with doors605.351.22TOLKEN Countertop503.547.01RUTSJÖN Semi-recessed wash-basin405.453.96VOXNAN Wash-basin mixer tap105.332.72RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
TÄNNFORSEN Wash-stand with doors605.351.22TÄNNFORSEN Wash-stand with doors605.351.22TOLKEN Countertop503.547.01TOLKEN Countertop503.547.01RUTSJÖN Semi-recessed wash-basin405.453.96RUTSJÖN Semi-recessed wash-basin405.453.96VOXNAN Wash-basin mixer tap105.332.72VOXNAN Wash-basin mixer tap105.332.72Technical information
VOXNAN
Wash-basin mixer tap, chrome-plated
Article Number105.332.72| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 0.5 - 5 bar (0.05 - 0.5 MPa) (7.25 - 72.5 psi) |
| Min. working pressure | 0.2 bar (0,02MPa) (2.9 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 350 mm (13 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | KIWA |

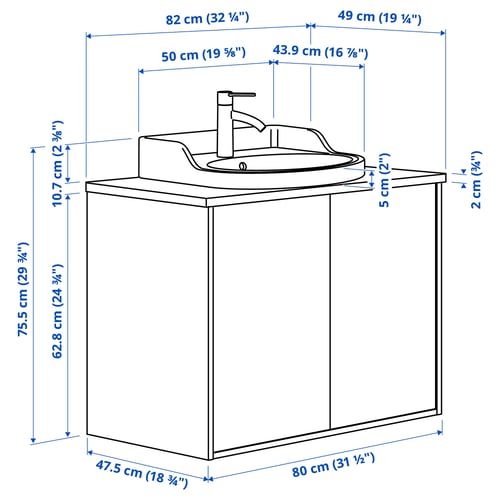

Weight & measurements
- Width: 82.0 cm
- Depth: 49.0 cm
- Height: 75.5 cm
- Door thickness: 16 mm
Package details
TÄNNFORSEN
Article Number605.351.22- Width: 61 cm
- Height: 7 cm
- Length: 83 cm
- Weight: 13.70 kg
- Package(s): 1
- Width: 61 cm
- Height: 7 cm
- Length: 83 cm
- Weight: 13.60 kg
- Package(s): 1
TOLKEN
Article Number503.547.01- Width: 50 cm
- Height: 3 cm
- Length: 94 cm
- Weight: 6.33 kg
- Package(s): 1
RUTSJÖN
Article Number405.453.96- Width: 51 cm
- Height: 23 cm
- Length: 55 cm
- Weight: 13.80 kg
- Package(s): 1
VOXNAN
Article Number105.332.72- Width: 18 cm
- Height: 7 cm
- Length: 35 cm
- Weight: 1.34 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
