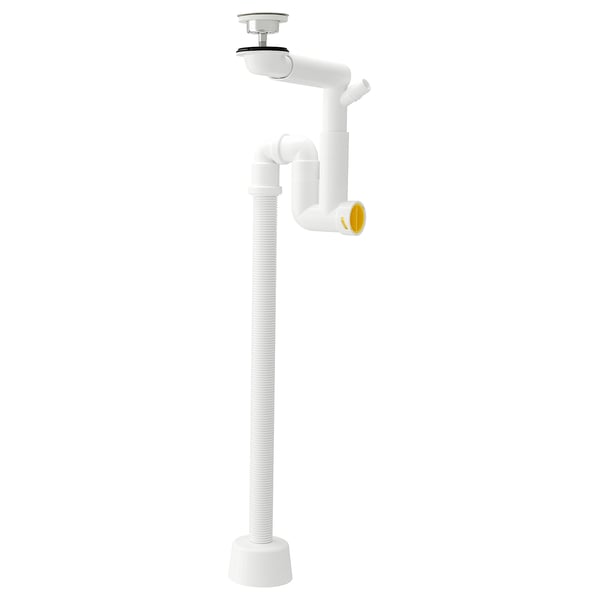

RÄNNILEN Water trap w flexible pipe, 1 bowl
RÄNNILEN Water trap w flexible pipe, 1 bowl

RÄNNILEN Water trap w flexible pipe, 1 bowl

Price £ 15
(8)
Wash-basin plug not included. Overflow kit not included.

How to get it

  • 10 year guarantee

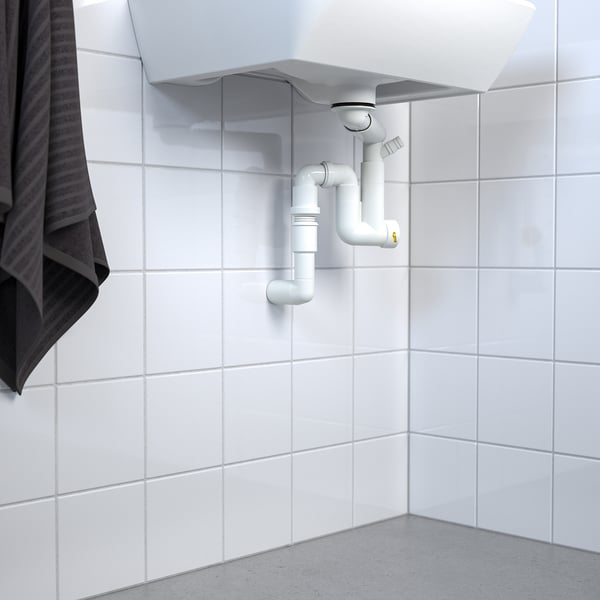

RÄNNILEN water trap has flexible piping and can be adjusted in length to fit inside a cabinet with drawers or to enable connection to a drain, washing machine or tumble dryer.

Article Number205.545.32

Product details

Telescopic water trap enables you to adjust the length to make room for a drawer - or to connect to a drain, washing machine or tumble dryer.

Unique water trap design gives room for a full sized drawer.

The universal design with flexible piping and adjustable length enables fit with all types of wash-basins.

Twist and remove plug for easy cleaning.

10 year guarantee. Read about the terms in the guarantee brochure.

Designer

IKEA of Sweden

  • The installation shall be made in accordance with valid local building and plumbing regulations. If you are uncertain about the installation, contact a professional.

    After a period of use check all connections to make sure they are tight.

    Waste grill is included.

    Wash-basin plug not included.

    Overflow kit not included.

    Fits all IKEA single bowl semi-recessed and integrated wash-basins.

    Fits Ø32 and 40 mm outlets, both in wall and floor.

    Waste outlet pipe diameter: 32 mm (1 1/4") / 40 mm (1 5/8").

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Material

    Water trap frame/ Cleaning plug/ Cover cap/ Outlet connector:
    Polypropylene plastic
    Sealing ring/ Gasket/ Seal:
    Synthetic rubber
    Waste pipe:
    Synthetic rubber, Polypropylene plastic
    Strainer:
    Stainless steel
    Seals:
    Polyethylene foam
    Outlet pipe:
    Polypropylene (min. 50% recycled)
    Assembly tool:
    ABS plastic

    Care

    Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.

    Do not use scouring-powder, steel wool, hard or sharp tools which can damage the surface.

  • Assembly instructions

    RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32

Weight & measurements

  • RÄNNILEN

    Article Number205.545.32
    • Width: 31 cm
    • Height: 8 cm
    • Length: 45 cm
    • Weight: 0.50 kg
    • Package(s): 1

Reviews

Brilliant use of spaceAnonymous reviewerWas able to install this waste above a cabinet, under worktop and have a cupboard under the sink without any pipework.5
The water trap did not fit the existing basin.Anonymous reviewerIKEA no longer supply the water trap that would fit my basin as they have changed the model….1
Not UK plumbing size - this is European standards.Anonymous reviewerVery disappointed with IKEA they are selling a product that complies with European plumbing sizes. I have a 32mm solvent weld pipe with current sink but this iKEA product will not fit. You have to buy an additional product -MCALPINE S28L-ISO COMPRESSION CONNECTION STRAIGHT CONNECTOR WHITE 32MM X 32MM. This then allows the IKEA item to be fitted in the UK. Why don't IKEA have this on the website or better still include the conversion joint in. I'm a dii'er so not a professional meaning it took hours of research to find how i could use the IKEA product. Be helpful IKEA and update your website with details a UK to EUROPEAN convertor is required. 1
Highly recommend Anonymous reviewerPerfect. Ideal if drawers or cupboard are underneath. 5
Highly recommended Anonymous reviewerEasy to use very good quality Excellent..5
HEMNES / ORRSJÖN Waste PipeAnonymous reviewerI replaced our old vanity unit with the HEMNES / ORRSJÖN, which comes with this outpipe which didn't connect to my existing waste - I bought a floplast wf07 flexi waste straight coupling from Screwfix to connect - works perfectly - flow is absolutely fine.4
Water flows far too slowlyAnonymous reviewerIt provides as a slim water trap for the IKEA cabinet with drawers, but the existing outflow water pipe is on the mid-level of high. As a result, the water flows far too slowly. 1
Not good for the existing outflow water pipe.Anonymous reviewerIt provides as a slim water trap for the IKEA cabinet with drawers, but the existing outflow water pipe is on the mid-level of high. As a result, the water flows far too slowly. We will have to find an alternative water trap.1
