KALLSJÖN Pillar tap, chrome-plated
How to get it
2 year guarantee

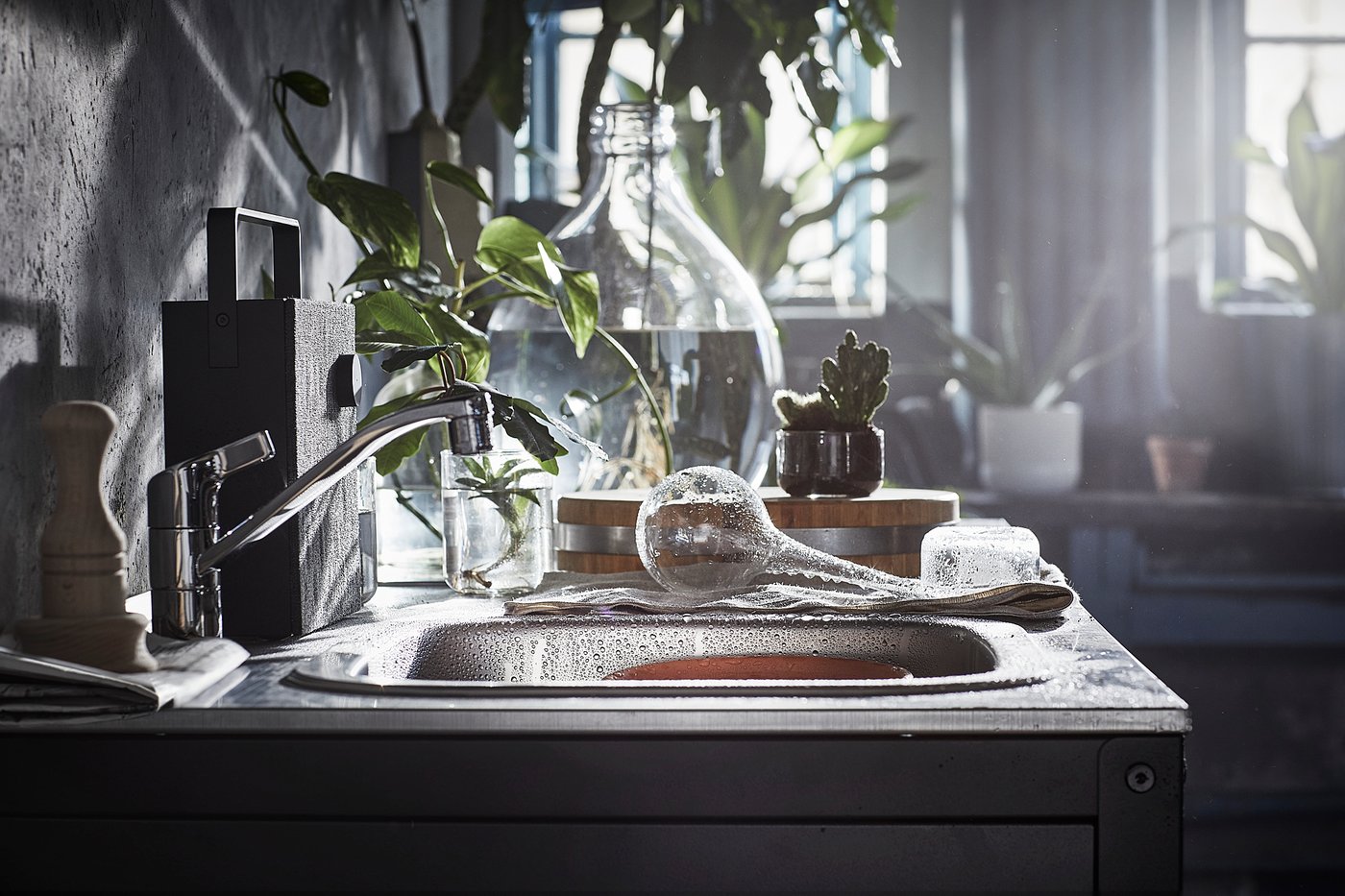

KALLSJÖN tap is a perfect addition to complete your outdoor kitchen in a modern design. It’s easy to connect to your garden water supply using the quick connector that comes included with the tap.
Product details
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
The handle sits on top of the tap, making it easy for you to reach when turning the water on or off.
2 year guarantee. Read about the terms in the guarantee brochure.
Developed for outdoor use and works perfectly together with GRILLSKÄR outdoor sink unit.
Suitable for indoor use as a cold water tap with swivel spout.
Good to know
For outdoor use.
To be stored in a frost-free space.
When outdoor temperatures are below freezing and it is time to turn off the water supply to KALLSJÖN outdoor pillar tap, click off the water hose and leave the tap in open position.
Quick-connect hose fitting for easy attachment included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
For outdoor use.
Never use a steel scourer, scourer pad or similar products as they can scratch the surface.
To protect the tap from frost damage, completely drain the tap from all water by disconnecting the water supply, then opening the tap (max. 1 minute) to allow all remaining water to drain.
Safety and compliance
Assembly and documents
Assembly instructions
KALLSJÖN Pillar tap904.863.56Advice and care instructions
KALLSJÖN Pillar tap904.863.56Technical information
KALLSJÖN
Pillar tap, chrome-plated
Article Number904.863.56| Brand Name | IKEA |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 448 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Max. hot water temperature | 80˚C (176˚F) |

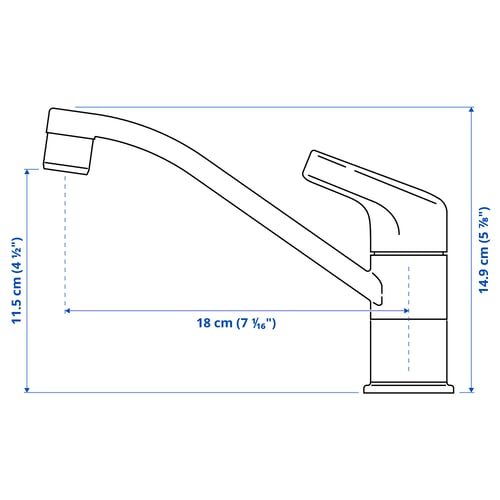

Weight & measurements
- Length: 18 cm
- Height: 15 cm
Package details
KALLSJÖN
Article Number904.863.56- Width: 23 cm
- Height: 6 cm
- Length: 25 cm
- Weight: 0.80 kg
- Package(s): 1
Related products
Recommended for you
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
