How to get it
5 year guarantee
Free your kitchen from a hanging hood and place your hob wherever you like. This sleek induction hob comes with an integrated extractor that is automated - the higher the heat the greater the extraction.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Induction hobs are extremely energy efficient, fast and precise as induction technology transfers energy directly into magnetic cookware.
With this induction hob with an integrated extractor hood, you have a better overview and accessibility to the hob since you don’t need a regular extractor hood over the cooking area.
The hob is perfect in an open-plan kitchen with, for example, a kitchen island in the middle of the room, but works just as well in a regular kitchen along a wall.
The extractor hood automatically adjusts to the heating level on the hob – the higher the heat, the more powerful the extraction capacity.

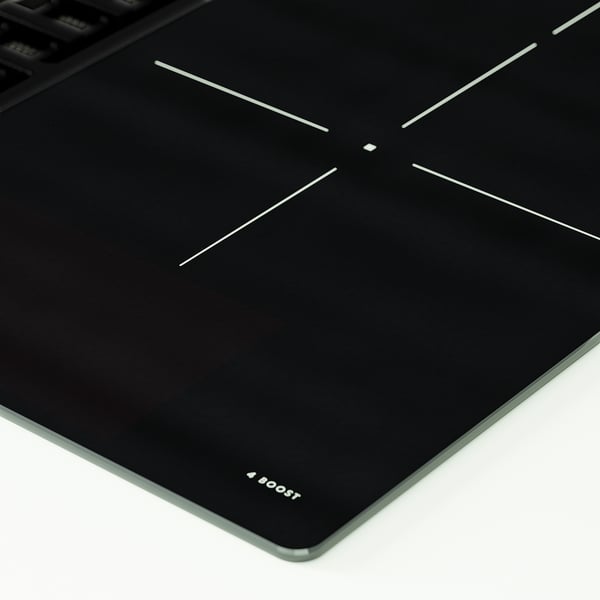

All zones have a booster function that quickly makes the zone extra hot – ideal for boiling water, browning meat and frying wok dishes.
Gives you the flexibility to use larger and different pots for special recipes or occasions as the bridge function allows you to connect 2 cooking zones into 1 large one when needed.
IKEA of Sweden
Good to know
Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.
If you install the hood for re-circulation in a kitchen island, you can choose if you want to direct the outgoing air out into the room from the plinth or via the back of the kitchen island.
The hood can be installed either for re-circulation with charcoal filter and pipes, or as an extractor hood with pipes.
Water that runs down the fan is collected in a water container that is easy to remove and empty.
Charcoal filter and pipes for installation are included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Care

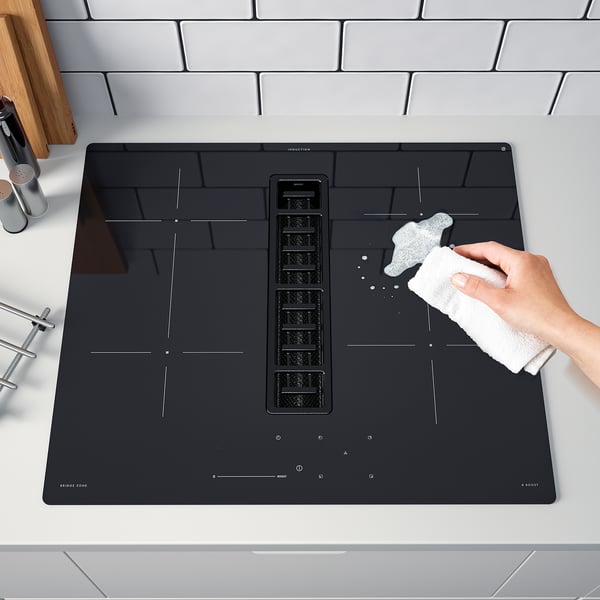

Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Clean spills on the cooking surface as soon as possible.
After cleaning, be sure to wipe dry with a soft cloth.
Safety and compliance
Assembly and documents
Assembly instructions
FÖRDELAKTIG Induction hob/integrated extractor505.348.54Advice and care instructions
FÖRDELAKTIG Induction hob/integrated extractor505.348.54Technical information
FÖRDELAKTIG
Induction hob/integrated extractor, IKEA 500 black, 60 cm
Article Number505.348.54| Lighting Efficiency | N/A Lux/watt |
| Power consumption in standby mode | N/A Watt |
| Grease Filtering Efficiency class | C |
| Air flow at minimum speed in normal use | 230 m³/h |
| Energy efficiency class | A+ |
| Power consumption in Off mode | 0,49 Watt |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | 72 dB |
| Brand Name | IKEA |
| Fluid Dynamic Efficiency | 33,1 % |
| Model Identifier | FÖRDELAKTIG 505.348.54 |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 49 dB |
| Fluid Dynamic Efficiency class | A |
| Grease Filtering Efficiency | 75,1 % |
| Air flow at maximum speed in normal use | 500 m³/h |
| Air flow at intensive or boost setting | 630 m³/h |
| Annual energy consumption | 40,9 kWh/annum |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 66 dB |

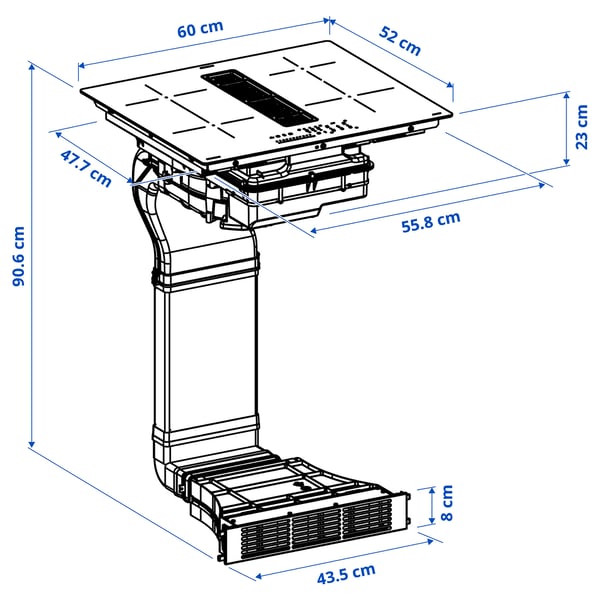

Weight & measurements
- Width: 60.0 cm
- Depth: 52.0 cm
- Height: 90.6 cm
- Weight: 14.30 kg
- Cut-out width: 56.0 cm
- Cut-out depth: 49.0 cm
Package details
FÖRDELAKTIG
Article Number505.348.54- Width: 63 cm
- Height: 46 cm
- Length: 87 cm
- Weight: 24.00 kg
- Package(s): 1
