Article Number195.475.90
Product details
Cabinet code ENHET B110
Good to know
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Base frame for washbasin/ wall fr w shelves
- Tubes:
- Steel, Powder coating
- Shelf:
- Galvanized steel, Powder coating
- Wedge:
- Steel, Epoxy/Acrylic coating
Hanging mirror f frame
- Frame/ Mounting plate:
- Galvanized steel, Powder coating
- Mirror:
- Glass, Plastic foil
- Plastic fitting:
- Acetal plastic
Legs f frame
- Tube:
- Steel, Powder coating
- Insert nut:
- Steel, Epoxy/Acrylic coating
Mixer tap
- Body:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide plastic
- Spout:
- Brass, Brass, Metallized
Water trap w flexible pipe, 1 bowl
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Single wash-basin
- Ceramics, Coloured glaze
Care
Legs f frame
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Base frame for washbasin/hanging mirror f frame/wall fr w shelves
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Mixer tap
Wipe dry with a clean cloth.
Single wash-basin
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Water trap w flexible pipe, 1 bowl
Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.
Safety and compliance
This furniture must be fixed to the wall with the enclosed wall fastener.Must be secured to the wall for a safe installation. Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home, sold separately.
Assembly and documents
Assembly instructions

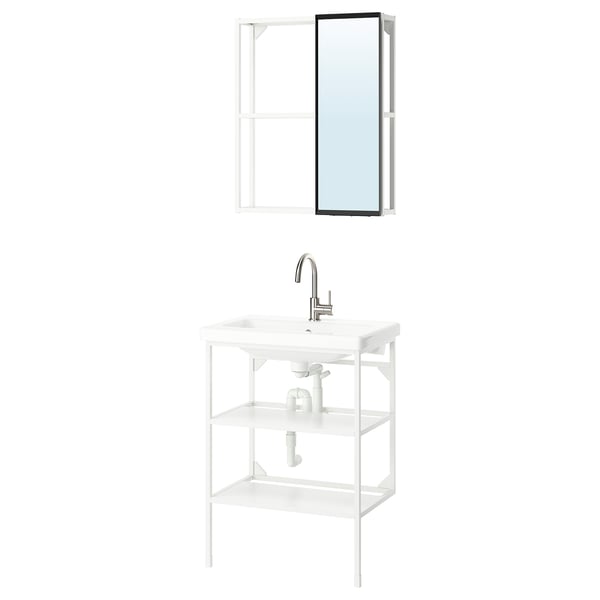

ENHET Bathroom, white, 64x43x87 cm
Technical information
GLYPEN
Mixer tap, stainless steel effect
Article Number304.423.89| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 498 kWh/p.a. |
| Recommended working pressure | 0.5 - 5 bar (0.05 - 0.5 MPa) (7.25 - 72.5 psi) |
| Min. working pressure | 0.2 bar (0,02MPa) (2.9 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | KIWA |

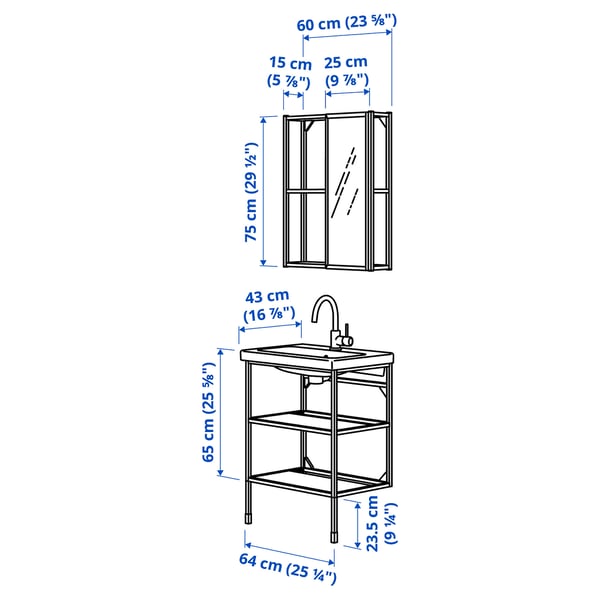

Weight & measurements
- Width: 64 cm
- Depth: 43 cm
- Height: 87 cm
Package details
This product comes as 8 packages.
ENHET
Article Number404.644.70- Width: 43 cm
- Height: 6 cm
- Length: 61 cm
- Weight: 6.60 kg
- Package(s): 1
ENHET
Article Number404.490.74- Width: 26 cm
- Height: 4 cm
- Length: 81 cm
- Weight: 3.07 kg
- Package(s): 1
ENHET
Article Number004.599.13- Width: 7 cm
- Height: 4 cm
- Length: 27 cm
- Weight: 0.36 kg
- Package(s): 2
ENHET
Article Number004.489.67- Width: 20 cm
- Height: 8 cm
- Length: 76 cm
- Weight: 5.37 kg
- Package(s): 1
GLYPEN
Article Number304.423.89- Width: 23 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.28 kg
- Package(s): 1
RÄNNILEN
Article Number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
TVÄLLEN
Article Number504.508.25- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
