BROGRUND Wash-basin mixer tap with sensor, chrome-plated
10 year guarantee
How to get it
Like magic, the water turns on at the slightest hand movement in front of the tap, at a pre-set temperature. A clean and simple design that’s hygienic too, since you don’t need to touch the tap.
Article Number704.233.55Product details
10 year guarantee. Read about the terms in the guarantee brochure.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
H Preutz/N Karlsson
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Additional aerator for low-pressure system included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
4 batteries (LR6 AA 1.5V) included.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Replacement batteries are available in most stores where alkaline batteries are sold.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
The water turns on automatically when the sensor detects your hands or an object in front of it, and turns off automatically 2 seconds after removing them.
The water temperature is controlled using the lever on the side of the mixer tap.
- MaterialCare
- Body:
- Zinc, Chrome-plated
- Inner body:
- Brass
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
- Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including WRAS or KIWA UK.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 0.5 – 5.0 bar (50 kPa – 500 kPa).
- Assembly instructionsBROGRUND Wash-basin mixer tap with sensor704.233.55
Technical information
BROGRUND
Wash-basin mixer tap with sensor
| Brand Name | IKEA |
| Annual energy consumption | 382 kWh/p.a. |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Amount of batteries | 4 pcs |
| Max. countertop thickness | 50 mm (2") |
| Connection hoses length | 575 mm (22 3/4") |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Battery type | AA |
| Noise level | I |
| Strainer included | No |
| Type of tap | Wash-basin mixer tap with sensor |
| UWLA QR code | www.uwla.eu |
| UWLA web address | www.uwla.eu |
| UWLA technical icons | Sensor Function |
| Hose connection size | G 1/2" (R15) " |
| Min. working pressure | 0.2 bar (0,02MPa) (2.9 psi) |
| Third party certified according to local standards by | KIWA |
| Recommended working pressure | 0.5 - 5 bar (0.05 - 0.5 MPa) (7.25 - 72.5 psi) |
| Max. flow rate at 3 bar | 5.7 l/min |

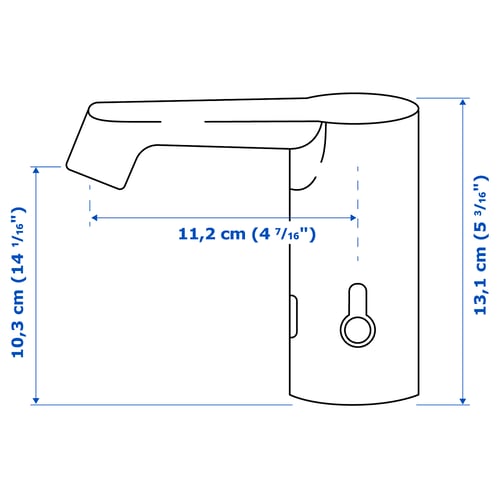

Measurements
Height: 13 cm
- BROGRUNDArticle Number704.233.55
Width: 21 cm
Height: 7 cm
Length: 35 cm
Weight: 1.65 kg
Package(s): 1
SustainabilityPeople and planet
Energy and resources
Did you know using water more efficiently can reduce your energy bills and help tackle climate change?
Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
Water-conscious commitment in bathrooms
Every time you brush your teeth, wash your hands, shave or take a bath, you can help with something essential – saving water. That’s why all our taps have an aerator that saves water and energy while keeping the water stream just right. But that’s just a small part of a bigger effort: conserving more clean water than we use.
Antony Smith, an engineer from England, remembers when he joined IKEA and the small team that develops our taps and showers. "I realized we practice what we preach about sustainability," Antony says. "It's a refreshing experience, but it makes our job really difficult because we genuinely have to deliver on sustainability with each product."
Water is precious, but often taken for granted
So, why conserving water? Because no organism on earth can survive without it, and no new water is created. It's constantly recycled, but our freshwater supply is overused and not evenly distributed. It’s impacted by pollution, contamination and climate change, too. "Those of us who live where you can just turn on your tap may not think about saving water; it's taken for granted," Antony says.
Thinking about water at every step
Behind the scenes, we constantly explore new ways to improve water efficiency. That includes providing factory workers and their families with fresh drinking water, ensuring all factory water is cleaned before release, reducing water usage in textile production and using rainwater to flush toilets in stores. And now we are working on new taps using sensors and spray technology – and new water-efficient showers – to save even more. Every water-saving action adds up.
Material
What are zinc and zamak?
Zinc is a metallic element while zamak is a mixture of zinc, aluminium, magnesium and copper. Both are durable materials and easy to cast into different shapes. They are good at conducting heat and electricity. Objects made of zinc or zamak are often given a surface treatment to resemble metals like gold, brass or stainless steel. Both zinc and zamak retain their good properties when they are recycled to become new objects.
