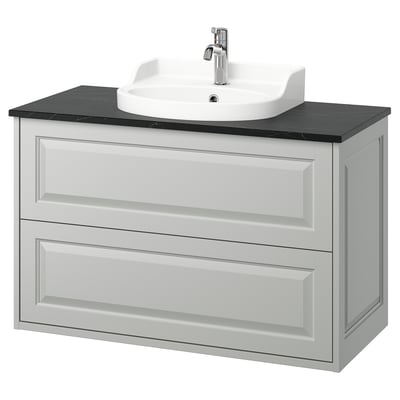

TÄNNFORSEN / VÄSTERSJÖN Wash-stnd w drawers/wash-basin/tap, light grey/black marble effect, 102x49x79 cm
How to get it
10 year guarantee
TÄNNFORSEN bathroom furniture expresses classic elegance with bevelled edges. This combo with countertop and round wash-basin with raised back forms a beautiful centrepiece with a crafted look.
Product details
A timeless feel in light grey with bevelled panels that add sense of craftmanship and attention to detail. You get a warm and graceful ambience that becomes a statement of your unique style.
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Ceramic countertop wash-basin with round bowl, softly rounded edges and raised back creates traditional expression that feels harmonious and inviting.
Technical information
VOXNAN
Wash-basin mixer tap, tall, chrome-plated
Article number505.331.66| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

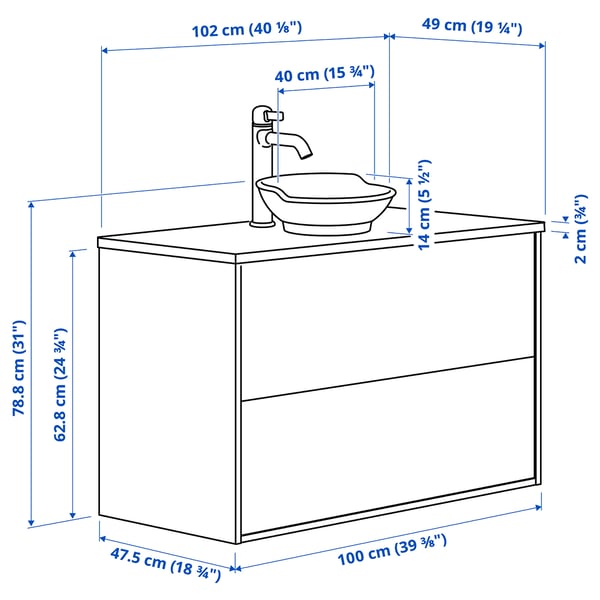

Measurements
- Width: 102 cm
- Depth: 49 cm
- Height: 78.8 cm
