10 year guarantee

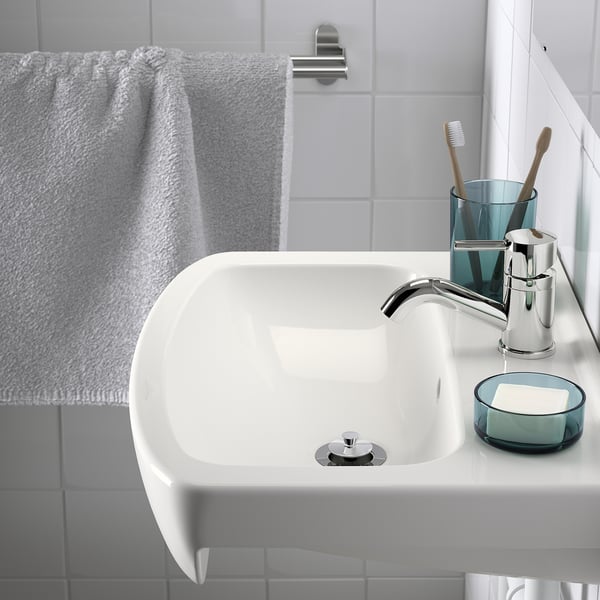

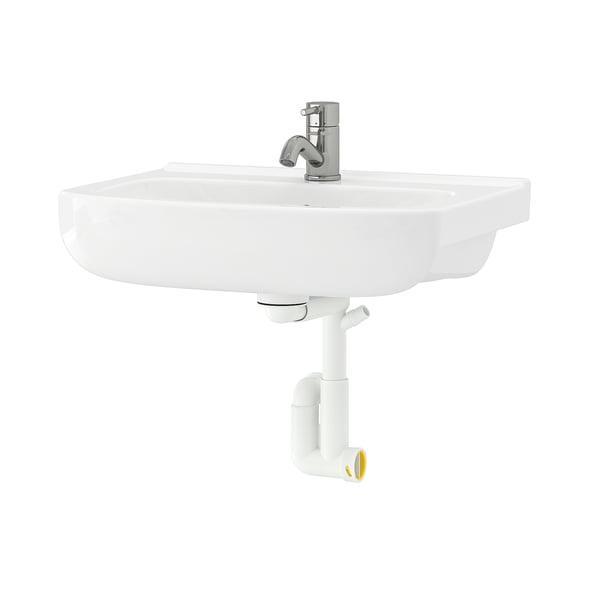

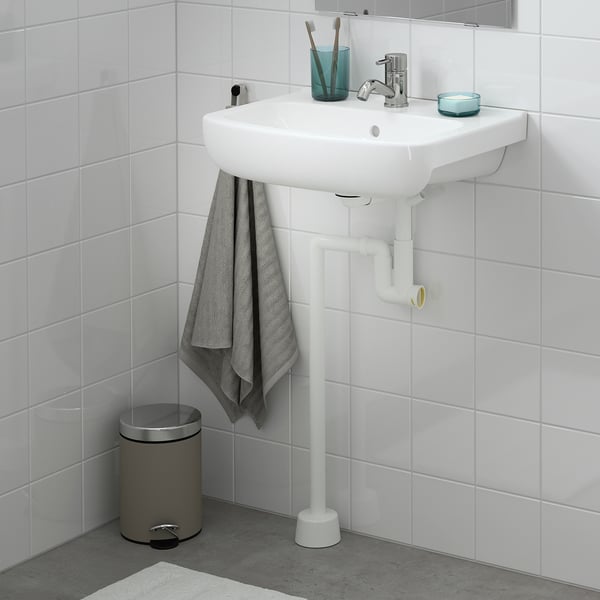

This combination includes all the parts for a complete wash-basin solution in your bathroom. Use it wall-mounted or fit it into a wash-basin cabinet.
Article number195.467.22
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
Technical information
PILKÅN

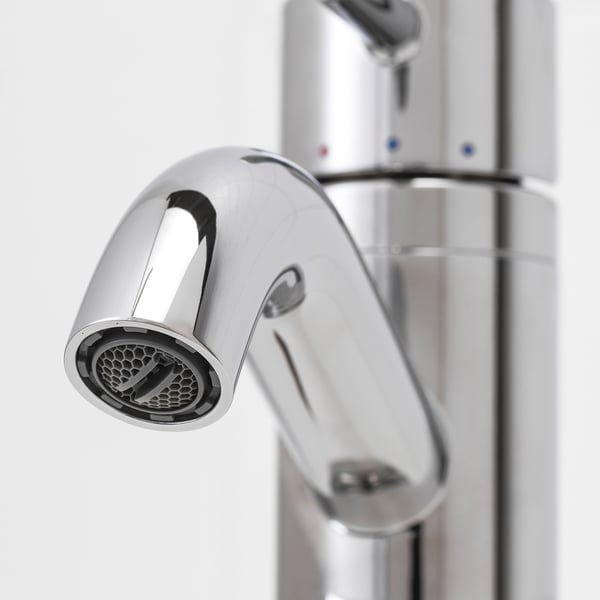

Wash-basin mixer tap, chrome-plated
Article number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 54 cm
- Depth: 40 cm
