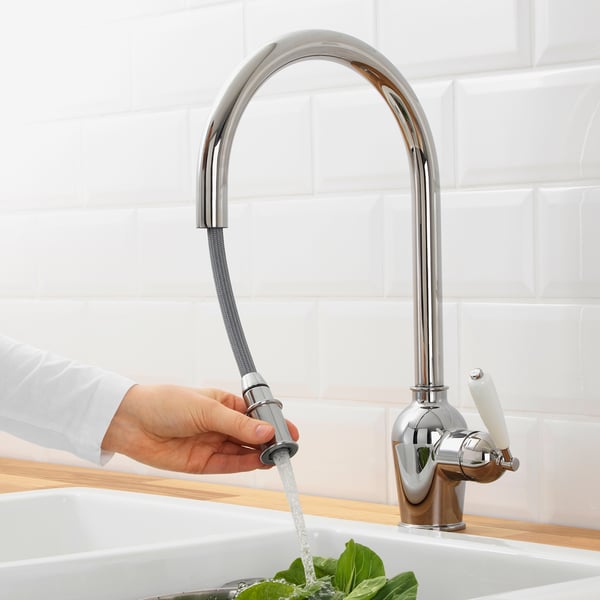

INSJÖN Kitchen faucet with pull-out spout, chrome plated
How to get it
It's OK to change your mind
Low Price Guarantee
More ways to pay
10 year limited warranty
INSJÖN faucet in chrome helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen faucet.
The high spout makes it easier to wash dishes, including large pots.
The faucet insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the faucet keeps the water flow just right while less water and energy is used.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 1⅜" hole in a max. 2¾" thick sink/countertop.
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with 9/16" connection included. Length: 13¾".
A tool is included that makes it easy to install the faucet in place.
Flow rate: 1.5 gpm which equals 5.7 l/minute.
Max. temperature hot water system 176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
The spout can be pulled out approx. 12".
Swivel spout is preset to 120° but can be changed to 90°.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
INSJÖN Kitchen faucet with pull-out spout703.418.78Advice and care instructions
INSJÖN Kitchen faucet with pull-out spout703.418.78Technical information
INSJÖN
Kitchen faucet with pull-out spout, chrome plated
Article Number703.418.78| Type of tap | Kitchen mixer tap with pull-out spout |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 525 mm (20 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Swivel spout | 120 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO |
Measurements
- Length: 11 ½ "
- Height: 16 7/8 "
Packaging
INSJÖN
Article Number703.418.78- Width: 12 ¾ "
- Height: 3 "
- Length: 27 ¾ "
- Weight: 8 lb 2 oz
- Package(s): 1
Reviews
Customer reviews
Related products
Recommended for you
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
