BYASJÖN / TVÄLLEN Bathroom vanity w doors/sink/faucet, oak effect, 26x14 3/8x23 1/4 "
How to get it
It's OK to change your mind
Low Price Guarantee
More ways to pay
10 year limited warranty
Space optimizing combo – the cabinet slides in under the wash-basin, concealing pipes and providing precious shelf space in an instant. The oak effect finish gives your bathroom a warm and welcoming glow.
Product details
There is plenty of shelf space inside and on top of the cabinet and space for piping in the back of the cabinet.
Soft-closing doors close quietly without slamming.
Durable and stable metal leg frame.
A perfect place to hide toilet paper or hygiene products that tend to clutter.
No need to drill holes in the walls as the robust construction stands steady on the floor.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
May be attached to the wall but not necessary.
One stationary shelf included.
All parts have protective edge bands fixed with humidity-resistant glue to prevent moisture and humidity from penetrating.
Adjustable feet ensure the cabinets stand steady on uneven floors.
Coordinates with ÄNGSJÖN bathroom furniture.
Materials and care
Material
- Frame/ Shelf:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fiberboard, Plastic foil, Plastic foil
- Door:
- Particleboard, Fiberboard, Plastic foil, Plastic edging
- Leg frame:
- Steel, Epoxy/Acrylic coating, Powder coating
Ceramic, Colored glaze
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a mild soapy solution.
Wipe clean with a dry cloth.
Assembly and documents
Assembly instructions
BYASJÖN Sink base cabinet805.954.12TVÄLLEN Sink605.168.83RÄNNILEN Water trap, 1 bowl504.224.13DALSKÄR Bath faucet905.325.27Advice and care instructions
BYASJÖN Sink base cabinet805.954.12DALSKÄR Bath faucet905.325.27DALSKÄR Bath faucet905.325.27Technical information
DALSKÄR
Bath faucet, chrome plated
Article Number905.325.27| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by |

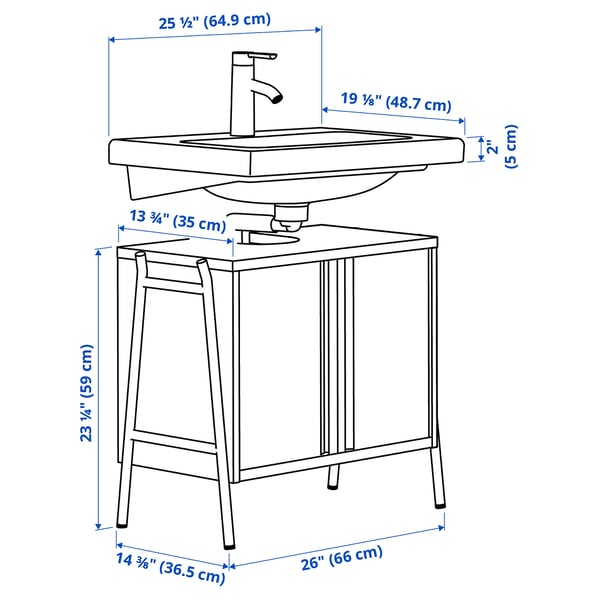

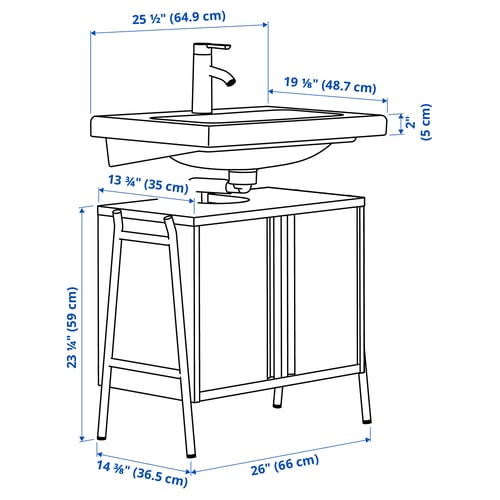

Measurements
- Width: 26 "
- Depth: 14 3/8 "
- Height: 23 1/4 "
Packaging
BYASJÖN
Article Number805.954.12- Width: 17 ¾ "
- Height: 6 ½ "
- Length: 25 ¾ "
- Weight: 40 lb 8 oz
- Package(s): 1
TVÄLLEN
Article Number605.168.83- Width: 21 "
- Height: 8 ¼ "
- Length: 27 "
- Weight: 46 lb 4 oz
- Package(s): 1
RÄNNILEN
Article Number504.224.13- Width: 10 ¾ "
- Height: 3 ¼ "
- Length: 17 ¼ "
- Weight: 14 oz
- Package(s): 1
DALSKÄR
Article Number905.325.27- Width: 7 "
- Height: 2 ¼ "
- Length: 13 ½ "
- Weight: 3 lb 1 oz
- Package(s): 1
