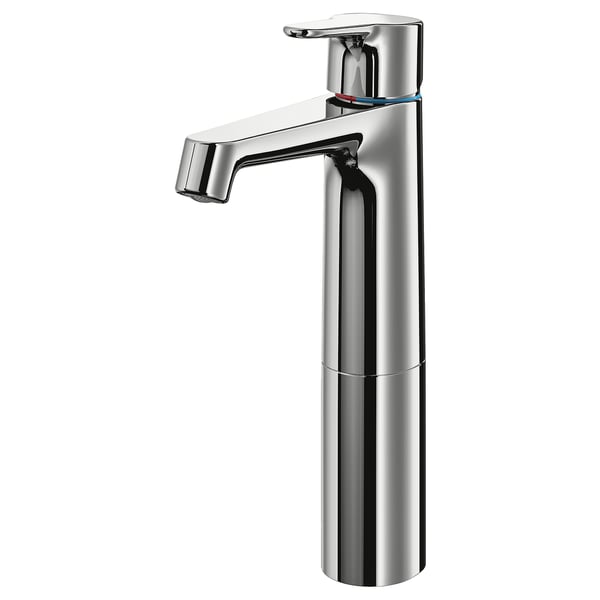

BROGRUND Bath faucet, tall, chrome plated
BROGRUND Bath faucet, tall, chrome plated
BROGRUND Bath faucet, tall, chrome plated
BROGRUND Bath faucet, tall, chrome plated
BROGRUND Bath faucet, tall, chrome plated

BROGRUND
Bath faucet, tall, chrome plated

Price $ 130.00
(16)

How to get it

More ways to pay

Checking payment options...

  • 10 year limited warranty

You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.

Article Number005.320.94

Product details

10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.

The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.

Hot water is released by turning the lever to the left. It is only then that hot water is consumed.

This is a durable faucet that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

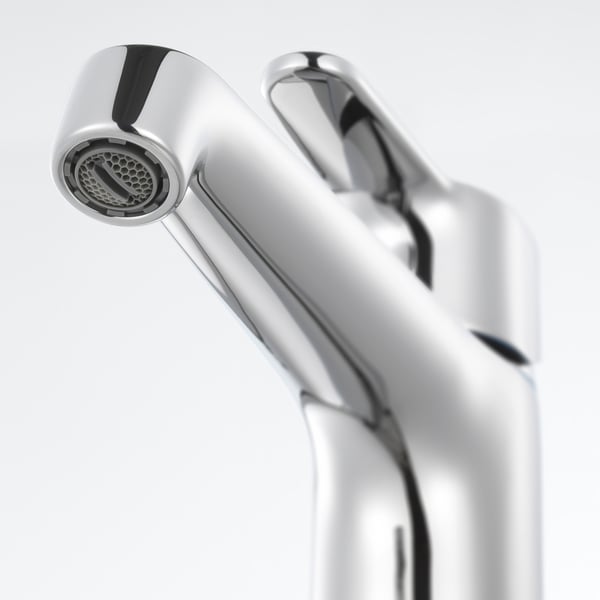

An aerator integrated in the faucet keeps the water flow just right while less water and energy is used.

Designer

H Preutz/N Karlsson

  • Water and energy saving aerator (1.2 gal/min.) for high-pressure systems included.

    Connection hoses with 9/16" connection included. Length: 13¾".

    A tool is included that makes it easy to install the faucet in place.

    Flow rate: 1.2 gal./min. (4.5 l/min.)

    Max. temperature hot water system 176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    Suitable for bathroom countertops only. For mounting behind or to the side of the sink according to assembly instructions.

  • Material

    Body:
    Brass, Metallized
    Spout:
    Brass, Brass, Metallized

    Care

    Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.

    Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.

  • Tested and certified according to applicable codes and standards including: ASME A112.18.1/CSA B125.1, NSF 61, NSF 372 and EPA WaterSense.

  • Assembly instructions

    BROGRUND Bath faucet, tall005.320.94

    Advice and care instructions

    BROGRUND Bath faucet, tall005.320.94BROGRUND Bath faucet, tall005.320.94

Technical information

BROGRUND

Bath faucet, tall, chrome plated

Article Number005.320.94
Type of tapSink mixer tap, tall
Max. flow rate at 3 bar5.7 l/min (1.5 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness50 mm (2")
Mounting hole measurement34-37 mm (1⅜-1 7/16")
Connection hoses length500 mm (19¾")
Hose connection size9/16" x 24UNEF
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Third party certified according to local standards by

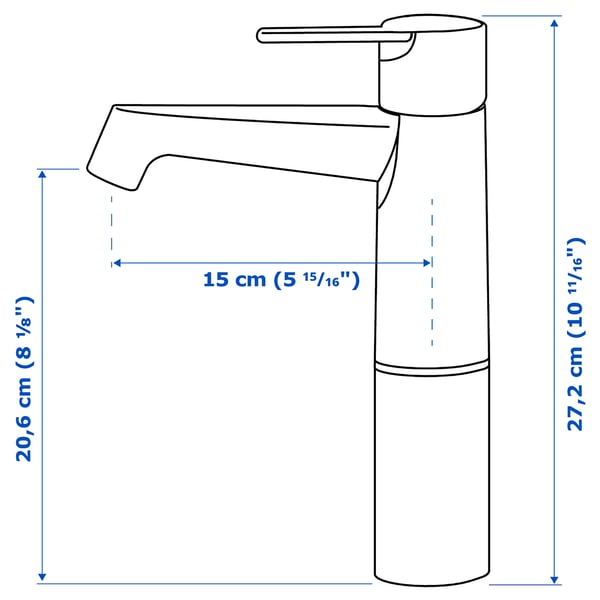

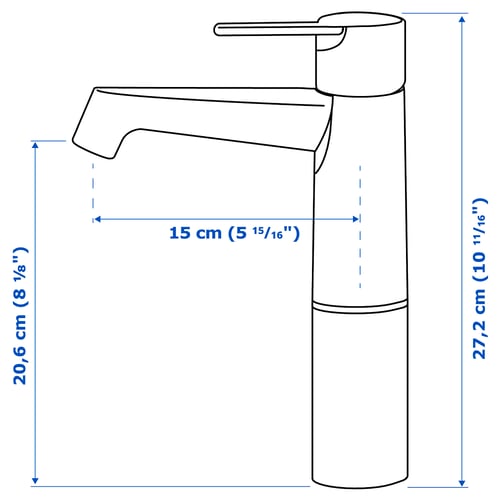

Measurements

  • Height: 11 "

  • BROGRUND

    Article Number005.320.94
    • Width: 8 ¾ "
    • Height: 2 ¼ "
    • Length: 16 ¼ "
    • Weight: 4 lb 1 oz
    • Package(s): 1
