VOXNAN Handshower+head/thermostatic faucet, chrome plated
How to get it
Checking availability...3-year warranty. Read about the terms in the warranty brochure.
3-year guarantee
Material
- Handheld showerhead inner housing/ Overhead showerhead inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead showerhead outer housing:
- ABS plastic, Chrome plated
- Inner hose:
- Silicone rubber
- Outer hose/ Pipe:
- Stainless steel
- Rail fixture:
- Steel, Zinc, Chrome plated
- Holder:
- Acetal plastic, Chrome plated
- Body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
VOXNAN Handshower+head/thermostatic faucet406.247.94
This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
The chrome-plated surface is a hard, durable and easy to clean.
The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.
You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.
The showerhead comes with full spray and the hand shower comes with full, mist and full/mist spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
5¾" fixed inlet centers.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic faucet is pre-set to a safety stop temperature of 100°F. Since operating conditions in each supply system varies, it might be necessary to calibrate the faucet according to the service and installation instructions.
Max. temperature hot water system 176°F.
Recommended hot water temperature: 140°F-149°F.
Recommended cold water temperature: 50°-59°F.
The hand shower consumes 1.5 gallons of water/min. and the showerhead consumes 2.5 gallons of water/min.
Material
- Handheld showerhead inner housing/ Overhead showerhead inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead showerhead outer housing:
- ABS plastic, Chrome plated
- Inner hose:
- Silicone rubber
- Outer hose/ Pipe:
- Stainless steel
- Rail fixture:
- Steel, Zinc, Chrome plated
- Holder:
- Acetal plastic, Chrome plated
- Body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
- The thermostatic shower faucet can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
Assembly instructions
VOXNAN Handshower+head/thermostatic faucet406.247.94
- 406.247.94
1 × VOXNAN

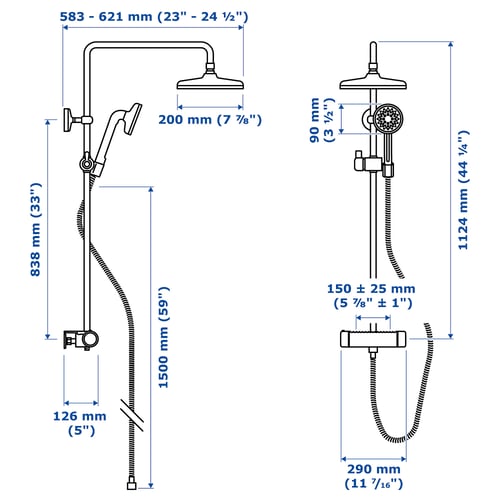

Handshower+head/thermostatic faucet- Width: 34 cm (13 ½ ")
- Height: 11 cm (4 ¼ ")
- Length: 86 cm (33 ¾ ")
- Weight: 6.68 kg (14 lb 12 oz)
