This is where the shower range comes in. We want to make it simple to save water and energy. With smart technology, the thermostatic mixer and shower arm make this simple. Antony Smith, who was part of the shower development team, has worked with mixers and showers since he finished university long ago. He describes the thermostatic mixer as the shower's engine "It's the mixer which ensures that there's an even water flow and the right temperature". Antony explains that it's thanks to the thermostatic mixer that your shower water is not affected if someone turns on the water in the kitchen. You can calmly continue singing in the shower ― without the risk of being burned or getting a cold shock. The mixers that the team developed also have a 38°C safety stop button, so there's no risk of you or any child accidentally raising the temperature.

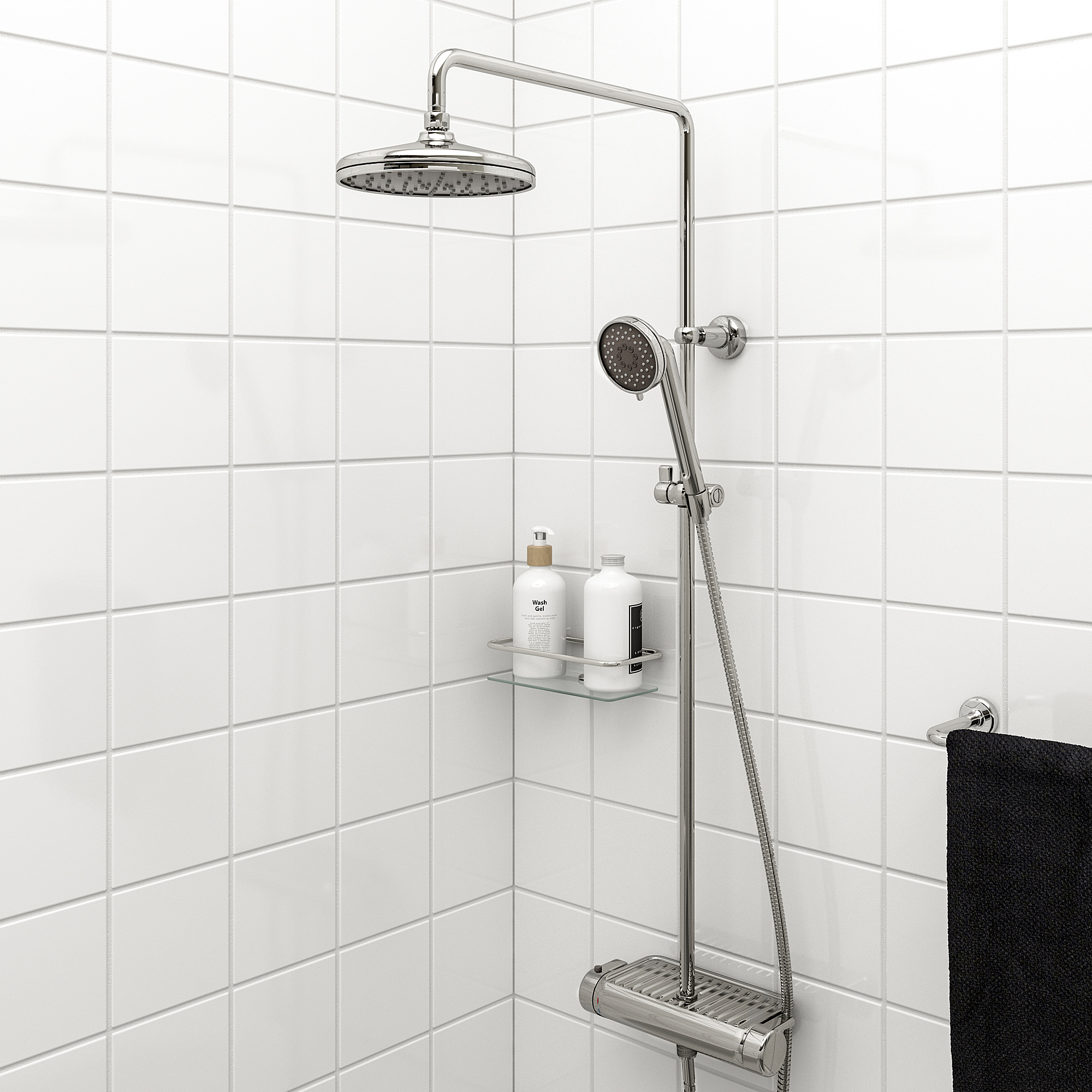

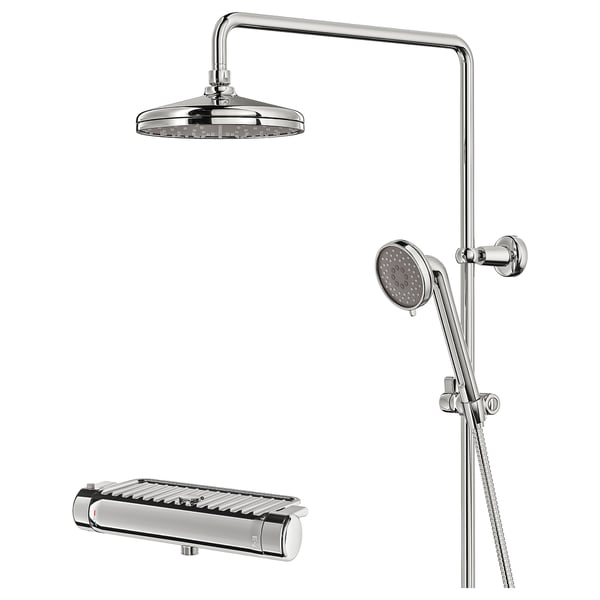

VOXNAN Handshower+head/thermostatic faucet, chrome plated
How to get it
A head/hand shower set with full spray and mesh spray with boosted force. The 100°F safety stop prevents water from getting too hot and the “cold touch” feature keeps a safe temperature on the mixer bar.
Product details
10 year limited warranty on the faucet and 3 year limited warranty on other parts. Read about the terms in the limited warranty brochure.

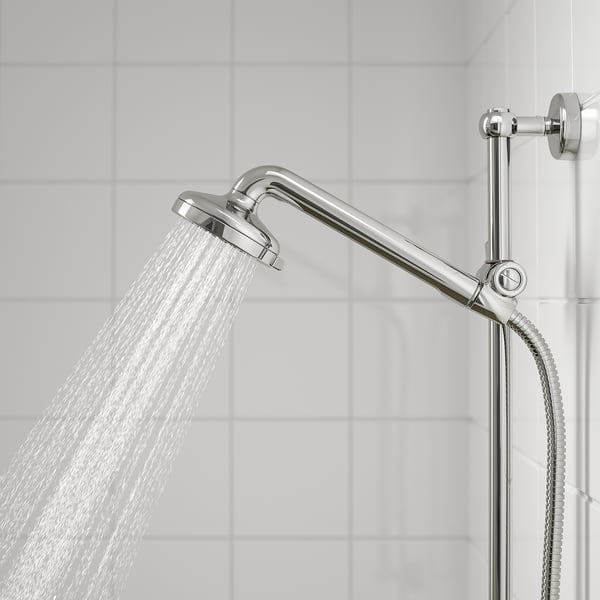

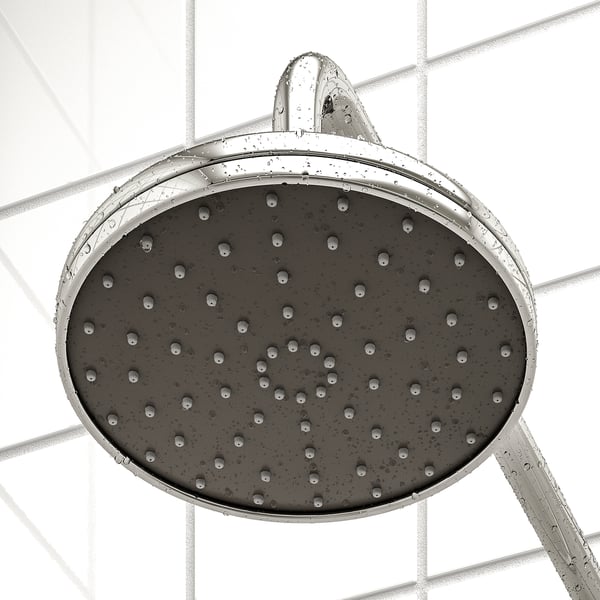

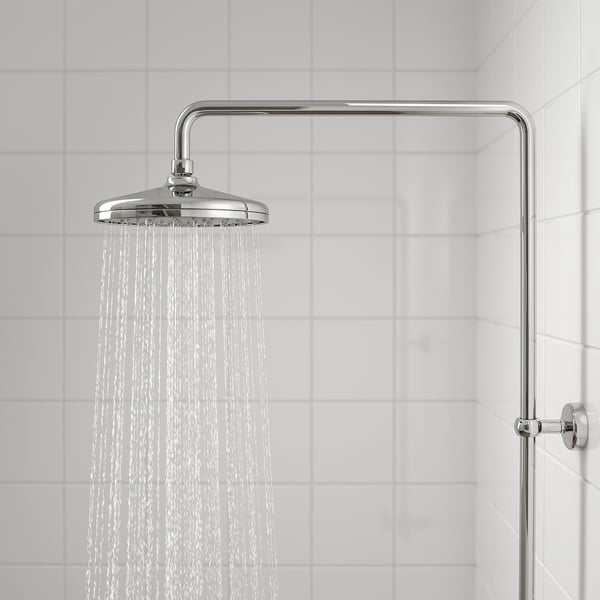

The full spray function of the showerhead gives a wide and even coverage over the body, for a calming rainfall feeling.

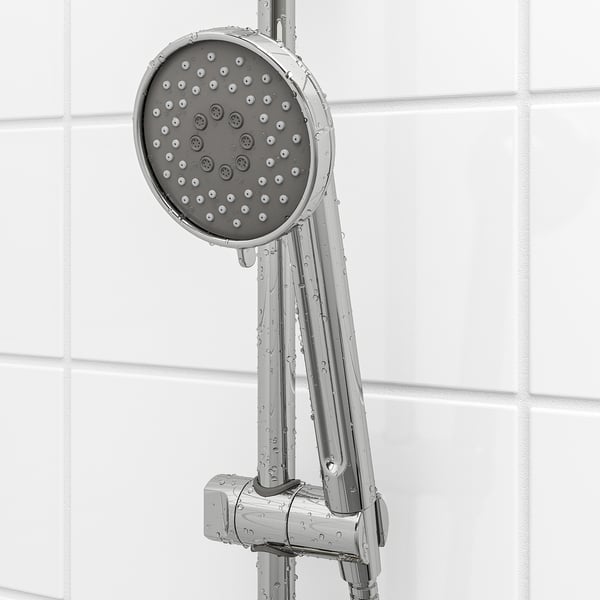

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.

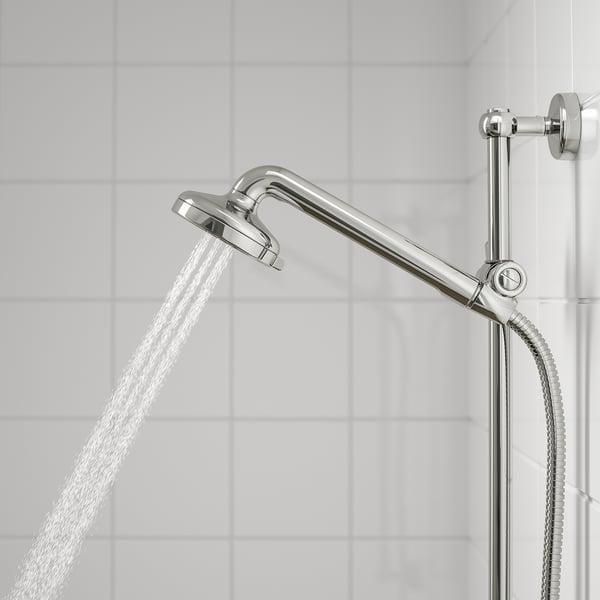

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.
You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.
Easy to clean by rubbing the rubber nozzles on the showerheads.

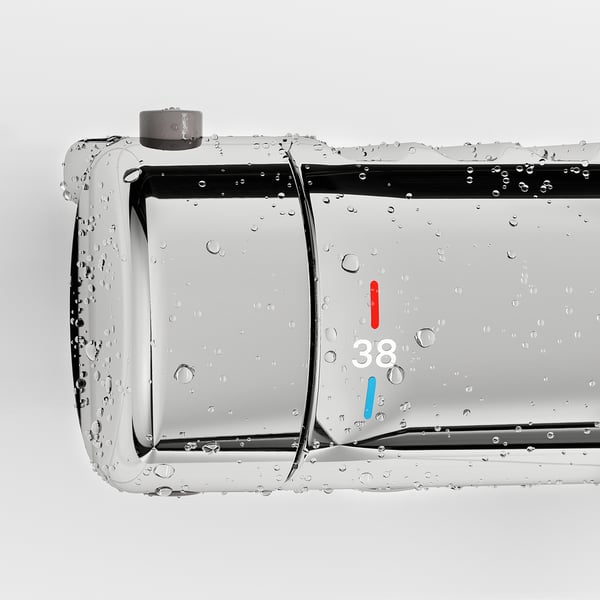

A 100°F safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.

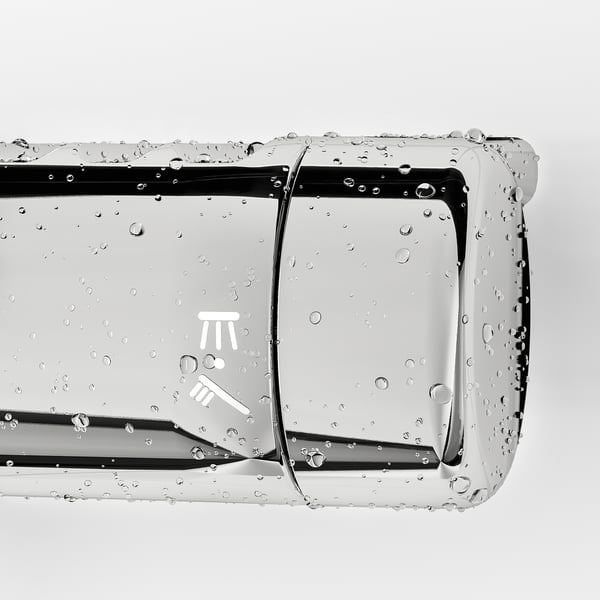

The shower faucet has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the faucet bar never heats up and is always safe to touch.

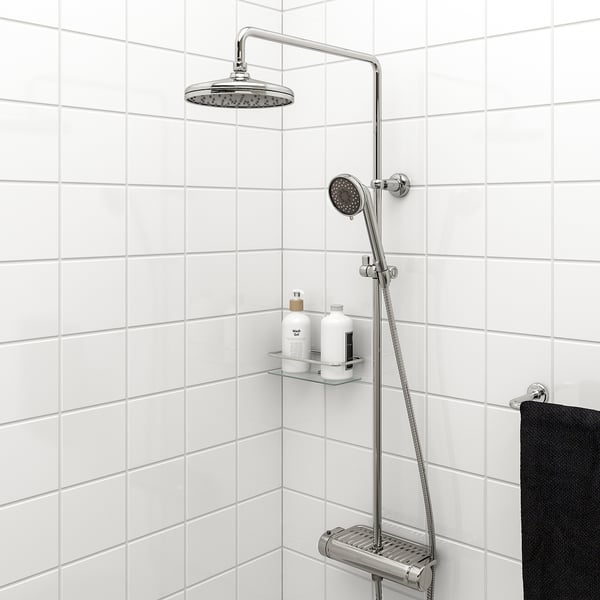

The built-in shelf on the shower faucet is perfect for all those tall shampoo bottles that are often tricky to store in the shower.
You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.
A washer integrated in the shower keeps the water flow just right while less water and energy is used.
H Preutz/N Karlsson
Good to know
The showerhead comes with full spray and the hand shower comes with full, mist and full/mist spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
5¾" fixed inlet centers.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic faucet is pre-set to a safety stop temperature of 100°F. Since operating conditions in each supply system varies, it might be necessary to calibrate the faucet according to the service and installation instructions.
Max. temperature hot water system 176°F.
Recommended hot water temperature: 140°F-149°F.
Recommended cold water temperature: 50°-59°F.
The hand shower consumes 1.5 gallons of water/min. and the showerhead consumes 2.5 gallons of water/min.
Spare parts can help to prolong the life of your IKEA product. For information about spare parts available in your market, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Handheld showerhead inner housing/ Overhead showerhead inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead showerhead outer housing:
- ABS plastic, Chrome plated
- Nozzle:
- Synthetic rubber
- Inner hose:
- Silicone rubber
- Outer hose:
- Stainless steel
- Pipe:
- Brass, Chrome plated
- Rail fixture:
- Steel, Zinc, Chrome plated
- Holder:
- Acetal plastic, Chrome plated
- Body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions

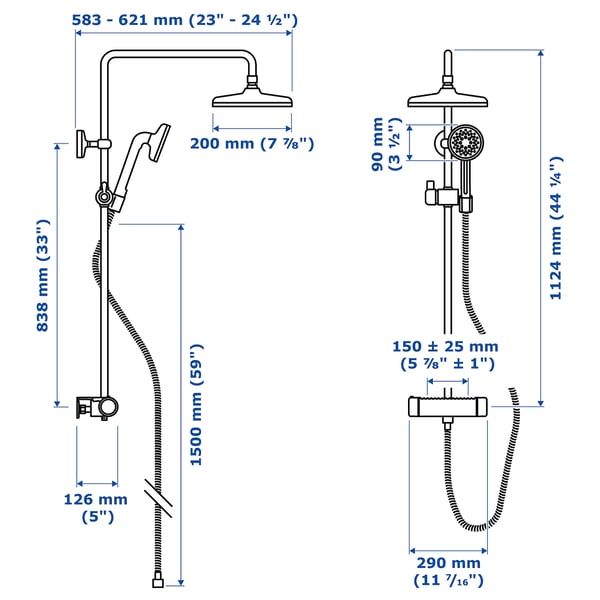

VOXNAN Handshower+head/thermostatic faucet203.426.01Measurements
- Connection center distance: 150 mm (6 ")
- Hand shower diameter: 90 mm (3 ½ ")
- Shower head diameter: 200 mm (7 ¾ ")
- Length of hose: 1500 mm (59 ")
- Width: 290 mm (11 ½ ")
- Depth: 580 mm (22 ¾ ")
- Height: 1160 mm (45 ¾ ")
Packaging
VOXNAN
Article number203.426.01- Width: 34 cm (13 ½ ")
- Height: 11 cm (4 ¼ ")
- Length: 86 cm (33 ¾ ")
- Weight: 6.72 kg (14 lb 13 oz)
- Package(s): 1
Reviews
Customer reviews
SustainabilityOur sustainable products
Sustainable life at home
Shower with a clean conscience
Each of our head/hand showers has a small pressure compensating washer (PCW) that reduces water flow while maintaining the pressure. It’s a small part of our bigger effort to conserve water. We’re committed to being water positive by 2020, that is, conserving more clean water than we use. And every water-saving action adds up.
Efficient showers for everyday indulgence
With VOXNAN, BROGRUND and VALLAMOSSE showers, we want to help you save water and energy while enjoying a warm and nice shower. To succeed, we had to find just the right balance between the pressure in the water spray of the showers and water consumption. So how could we find out that the balance was right? It was all about changing into swimwear and turning on the mixer.
But before we got that far ― even before looking at all the technical details ― we interviewed people in different countries about their bathrooms and shower habits. Then we understood how important a few minutes under spraying water can be. Since it's not just about being clean, getting in the shower can also be a way to rinse off stress and unwind ― to take a moment for yourself or just wake up to a new day. When you rub the sleep out of your eyes in the shower, the spraying water naturally helps. But did you know that only 3% of all water on the planet is freshwater? And most of it is actually bound in ice. Since this limited freshwater is a vital resource for all of life, we must help to nurture it.
The engine of the shower
Shower testing in swimwear
Another important key to creating both a comfortable and sustainable shower range is the small washer that sits in the shower arm which regulates the water flow. The challenge for the team was to find just the right balance between the water flow and pressure, so that you can use less water without affecting the shower experience. There was only one way for the team to see if they succeeded: "When we went to the supplier in China to test the first prototypes, we all packed our swimwear," says Antony smiling. With his swimwear on, he tested different water spray functions: full, mesh, mist, massage and various combinations of them. "How people prefer to shower is individual, and with the different streams, we allow everyone to adapt their shower experience. And maybe you'll enjoy showering a little more when you know that it's both water and energy efficient."
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
Function solution
A shower just the way you like it
Our shower heads and handheld showers provide individual comfort with the option to choose between 1, 3 or 5 spray functions. Choose FULL for a wide and even coverage; MESH to boost the force; MASSAGE to vary the flow; or MIST to de-stress with fine, gentle droplets. You can also choose combinations like FULL/MIST, FULL/MESH or FULL/MASSAGE. All shower faucets have a pressure compensating function that reduces water use and gives you an even flow – even when the water pressure changes.
