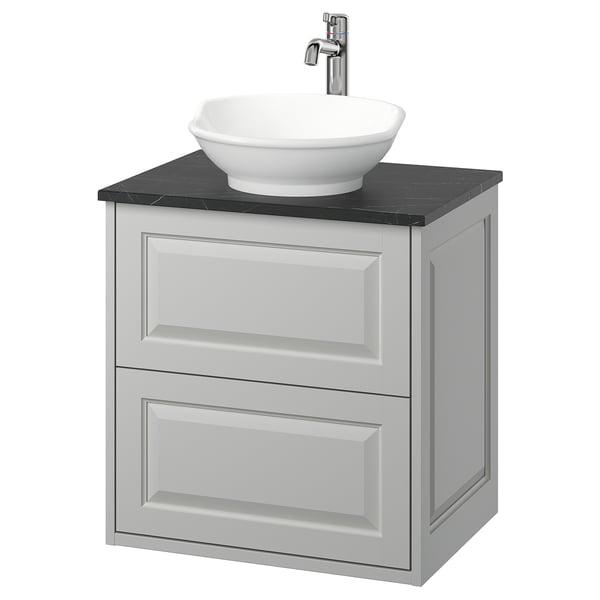

TÄNNFORSEN / VÄSTERSJÖN Bathroom vanity with sink & faucet
How to get it
10-year guarantee
TÄNNFORSEN bathroom furniture expresses classic elegance with beveled edges. This combo with countertop and round wash-basin with raised back forms a beautiful centerpiece with a crafted look.
Product details
A timeless feel in light grey with beveled panels that add sense of craftmanship and attention to detail. You get a warm and graceful ambience that becomes a statement of your unique style.
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Ceramic countertop wash-basin with round bowl, softly rounded edges and raised back creates traditional expression that feels harmonious and inviting.
Good to know
Comprises: 1 washstand with drawers, 1 countertop, 1 semi-recessed sink, 1 water trap and 1 faucet.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Must be secured to the wall for a safe installation. Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home, sold separately.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Materials and care
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Technical information
VOXNAN
Bath faucet, tall, chrome plated
Article number105.331.68| Type of tap | Sink mixer tap, tall |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 500 mm (19¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

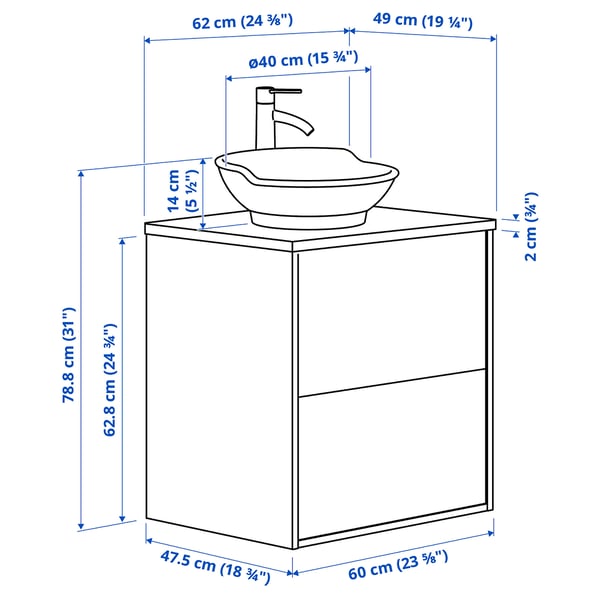

Measurements
- Width: 62 cm (24 3/8 ")
- Depth: 49 cm (19 1/4 ")
- Height: 78.8 cm (31 ")
Packaging
TÄNNFORSEN
Article number205.354.40- Width: 57 cm (22 ½ ")
- Height: 7 cm (2 ¾ ")
- Length: 82 cm (32 ¼ ")
- Weight: 15.52 kg (34 lb 3 oz)
- Package(s): 1
- Width: 35 cm (13 ¾ ")
- Height: 10 cm (3 ¾ ")
- Length: 61 cm (23 ¾ ")
- Weight: 10.58 kg (23 lb 5 oz)
- Package(s): 1
TOLKEN
Article number305.062.01- Width: 50 cm (19 ½ ")
- Height: 3 cm (1 ")
- Length: 74 cm (29 ¼ ")
- Weight: 4.87 kg (10 lb 12 oz)
- Package(s): 1
VÄSTERSJÖN
Article number405.810.06- Width: 43 cm (16 ¾ ")
- Height: 18 cm (7 ")
- Length: 43 cm (16 ¾ ")
- Weight: 8.07 kg (17 lb 13 oz)
- Package(s): 1
VOXNAN
Article number105.331.68- Width: 23 cm (8 ¾ ")
- Height: 7 cm (2 ¾ ")
- Length: 41 cm (16 ¼ ")
- Weight: 1.84 kg (4 lb 1 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
