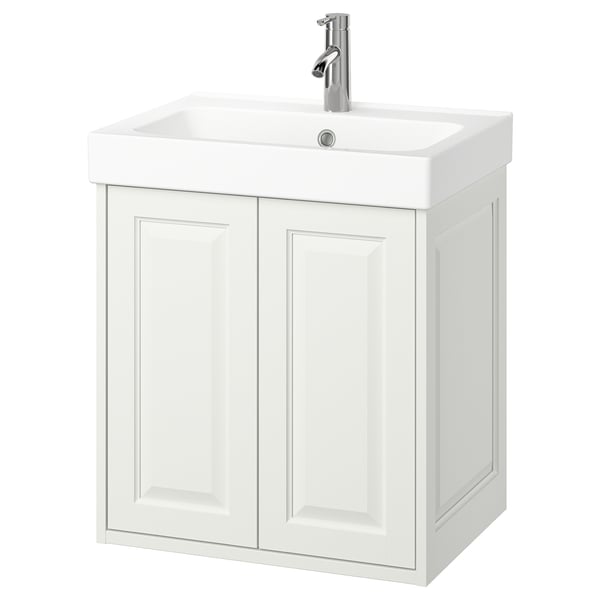

TÄNNFORSEN / ORRSJÖN Bathroom vanity with sink & faucet
How to get it
10-year guarantee
TÄNNFORSEN bathroom furniture expresses classic elegance with beveled edges that add a crafted look. This combo offers closed storage and a deep wash-basin that prevents spilling on the floor.
Product details
Closed storage with capacity for bulkier or taller items, like bottles and baskets, keeping them dust-free and out of sight.
A truly classic look in white that is enhanced by beautiful details such as beveled panels. An expression that breathes tradition and will never become outdated.
The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.

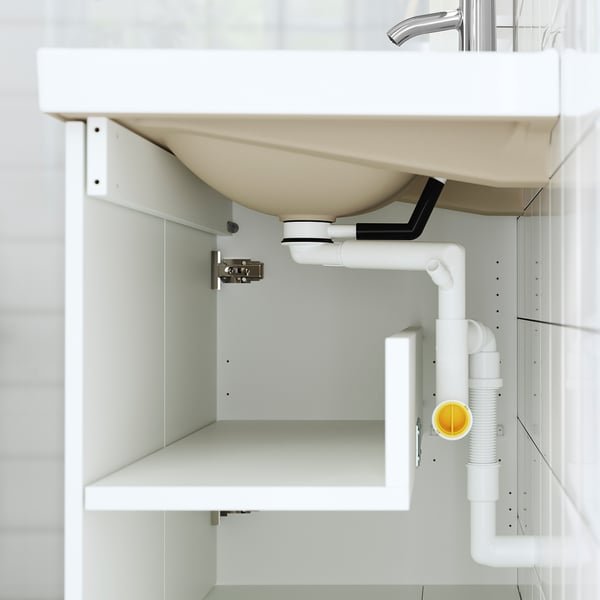

Utilize the full depth of the shelf for storage or fold ¾ of the shelf to make space for piping.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
Comprises: 1 washstand with doors, 1 countertop, 1 semi-recessed sink, 1 water trap and 1 faucet.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Materials and care
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
Assembly instructions
TÄNNFORSEN Bathroom vanity with doors805.354.61ORRSJÖN Deep sink205.451.04DALSKÄR Bath faucet305.321.20RÄNNILEN Water trap, 1 bowl504.224.13Advice and care instructions
TÄNNFORSEN Bathroom vanity with doors805.354.61DALSKÄR Bath faucet305.321.20DALSKÄR Bath faucet305.321.20Technical information
DALSKÄR
Bath faucet, chrome plated
Article number305.321.20| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 500 mm (19¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 62.4 cm (24 5/8 ")
- Depth: 49.4 cm (19 1/2 ")
- Height: 72.0 cm (28 3/8 ")
- Door thickness: 16 mm (5/8 ")
Packaging
TÄNNFORSEN
Article number805.354.61- Width: 56 cm (22 ¼ ")
- Height: 10 cm (4 ")
- Length: 68 cm (26 ½ ")
- Weight: 21.54 kg (47 lb 8 oz)
- Package(s): 1
ORRSJÖN
Article number205.451.04- Width: 55 cm (21 ½ ")
- Height: 27 cm (10 ½ ")
- Length: 66 cm (25 ¾ ")
- Weight: 20.80 kg (45 lb 14 oz)
- Package(s): 1
DALSKÄR
Article number305.321.20- Width: 18 cm (7 ")
- Height: 6 cm (2 ¼ ")
- Length: 35 cm (13 ½ ")
- Weight: 1.39 kg (3 lb 1 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
