Product features
10-year guarantee

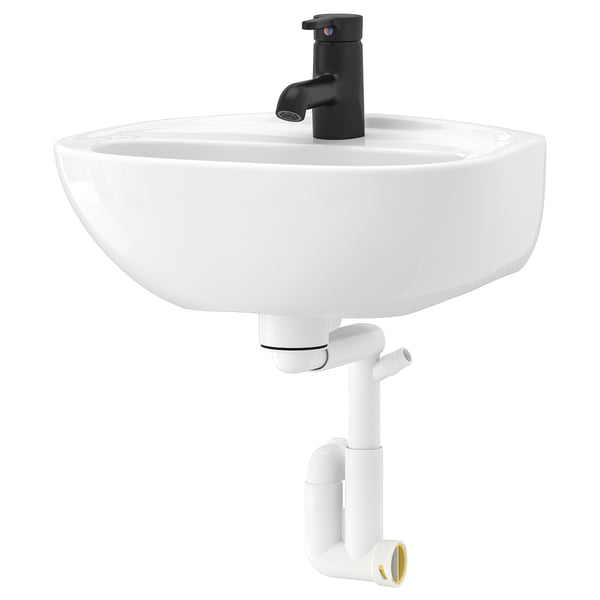

A small-size wash-basin for the small-size bathroom. Wall hung with soft-rounded shapes and generous depth make this wash-basin a perfect fit when you are tight of space.
Article number194.832.58
Product details
10-year Warranty. Read about the terms in the warranty brochure.
Space-saving design with a deep bowl to minimise splashing.
No corners to bump into as the wash-basin is softly rounded.
Materials and care
Material
Sink
China, Colored glaze
Bath faucet
ABS plastic
Water trap, 1 bowl
- Water trap frame/ Nut/ Outlet pipe:
- Polypropylene
- Washer/ Seals:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene
- Strainer:
- Stainless steel
- Assembly tool:
- ABS plastic
Care
Sink/bath faucet
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Sink w water trap/faucet
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
The sink is resistant to most chemicals, except for strong acids and strong alkalis.
Assembly and documents
Technical information
SALJEN
Bath faucet, black
Article number004.003.19| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 450 mm (17¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | BSMI, TISI |

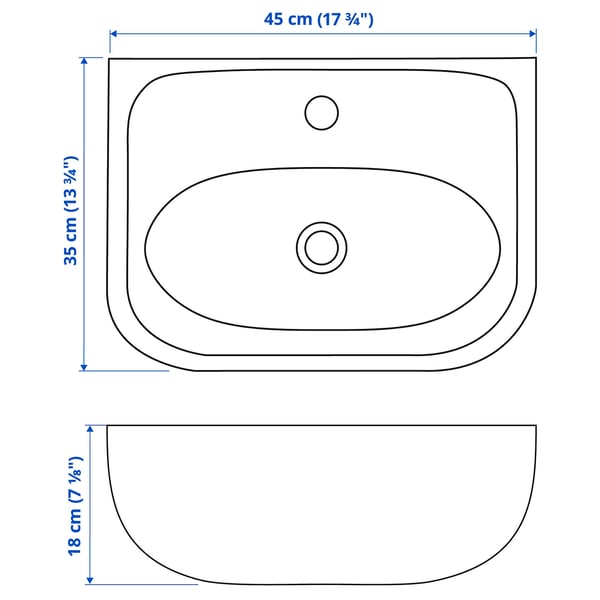

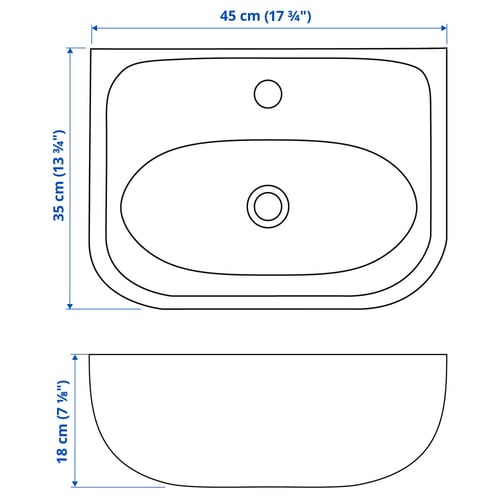

Measurements
- Width: 45 cm (17 3/4 ")
- Depth: 35 cm (13 3/4 ")
Packaging
This product comes as 3 packages.
SKATSJÖN
Article number505.042.63- Width: 38 cm (14 ¾ ")
- Height: 22 cm (8 ¾ ")
- Length: 49 cm (19 ")
- Weight: 12.50 kg (27 lb 9 oz)
- Package(s): 1
SALJEN
Article number004.003.19- Width: 22 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 26 cm (10 ")
- Weight: 0.48 kg (1 lb 1 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
