10-year guarantee
GLYPEN faucet in stainless steel helps lower water- and energy-use – so you can lower your bills too. The quality is guaranteed to outlast many years of pouring, washing and rinsing.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
The faucet insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

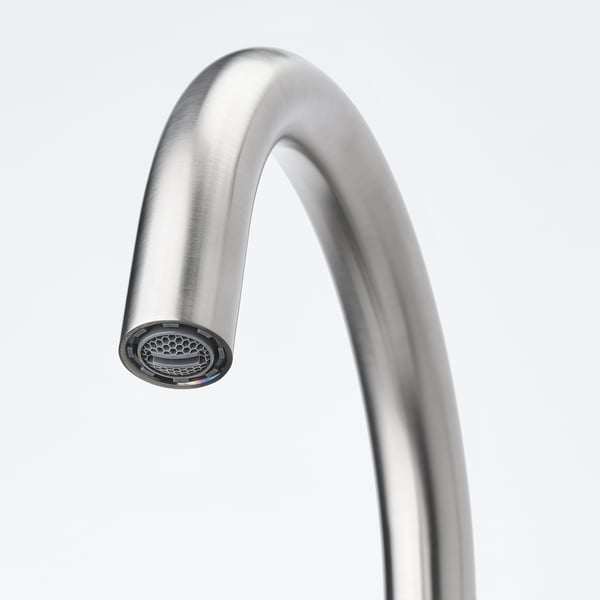

An aerator integrated in the faucet keeps the water flow just right while less water and energy is used.
Mikael Axelsson
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 1⅜" hole in a max. 2" thick sink/countertop.
A tool is included that makes it easy to install the faucet in place.
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with ½" connection included. Connection length: 20".
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is present to 360° but can be changed to 90° or 120°.
Fits IKEA sinks and standard sinks from other manufacturers.
Materials and care
Material
- Body:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide
- Spout:
- Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened with water and a mild dish detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
GLYPEN Faucet004.423.76Advice and care instructions
GLYPEN Faucet004.423.76Technical information
GLYPEN
Faucet, stainless steel effect
Article number004.423.76| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 550 mm (21¾") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 90° or 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | BSMI, TISI |

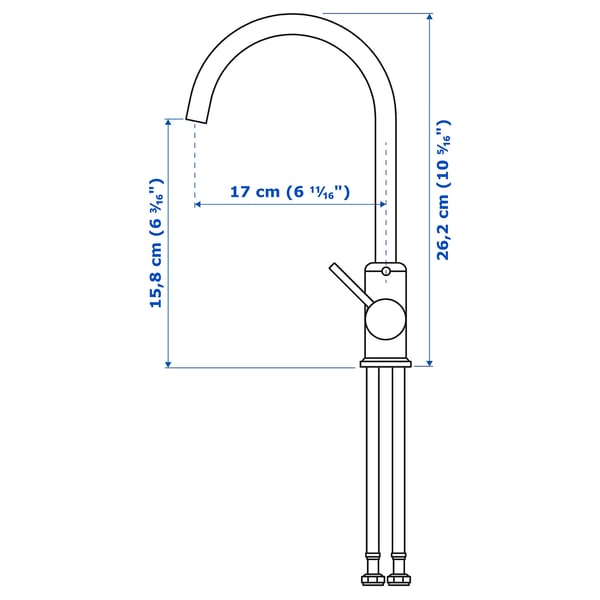

Measurements
- Length: 17 cm (6 ¾ ")
- Height: 26 cm (10 1/4 ")
Packaging
GLYPEN
Article number004.423.76- Width: 23 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 41 cm (16 ")
- Weight: 1.28 kg (2 lb 13 oz)
- Package(s): 1
Reviews
Customer reviews
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
