How to get it
10-year guarantee
This mixer tap delivers an efficient water flow and when you lift the lever straight up only cold water is released instead of mixed hot and cold, helping you to use less hot water.
Product details
The built-in pressure-compensating aerator keeps the water flow just right, helping to save water and energy.
The cold start function restricts opening the lever fully to the right. This means, when you lift the lever straight up, only cold water is released instead of mixed hot and cold.
Hot water is released by turning the lever to the left. It is only then that hot water is consumed.
Ceramic disc cartridge to ensure long-term drip-free operation.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Mikael Axelsson
Good to know
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with G½" connection included. Connection length: 13¾ in.
Max. temperature hot water system 176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA sinks and standard sinks from other manufacturers.
Sink strainer not included.
Materials and care
Material
- Polycarbonate/ABS plastic
Care
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
BERGVATTNET Bath faucet305.946.55Technical information
BERGVATTNET
Bath faucet
Article number305.946.55| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 450 mm (17¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | TISI |

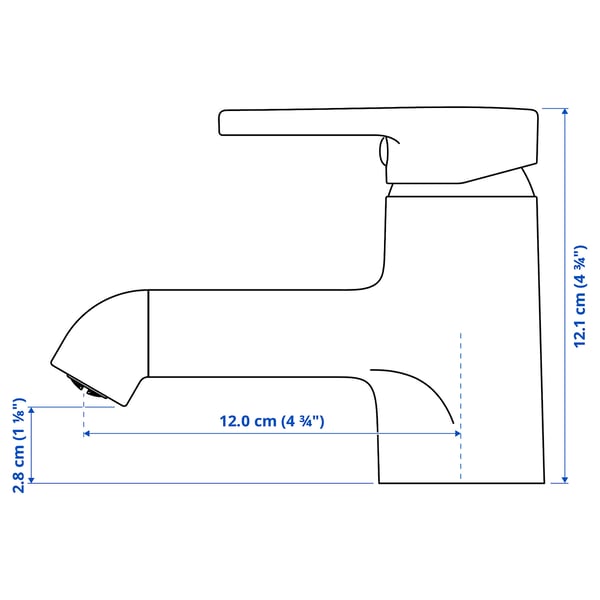

Measurements
- Height: 12 cm (4 3/4 ")
Packaging
BERGVATTNET
Article number305.946.55- Width: 22 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 26 cm (10 ")
- Weight: 0.48 kg (1 lb 1 oz)
- Package(s): 1
Customer reviews
Designer thoughts
Designer thoughts
“When designing BERGVATTNET wash-basin mixer tap, we used the same water- and energy-efficient components found throughout our tap range. To keep costs down, we opted for a plastic casing. However, one challenge with this was the visible seam that forms where the two halves of the mold meet. We chose to incorporate this into the design, making it a sleek and striking feature. The result? A bold, high-quality tap that offers exceptional value for money!
