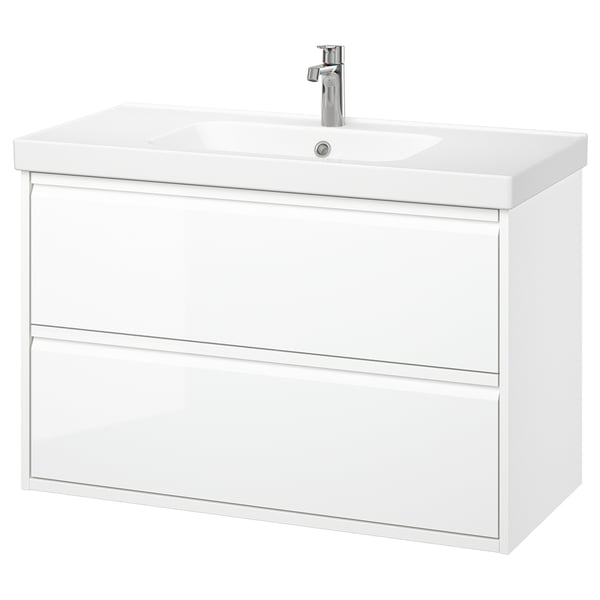

ÄNGSJÖN / ORRSJÖN Bathroom vanity with sink & faucet
How to get it
10-year guarantee
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 2 spacious drawers and room on the sink for toothbrush and soap.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The high gloss finish in white creates a sleek and contemporary expression emphasized with integrated handles for a refined look.
The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
Comprises: 1 washstand with drawers, 1 integrated sink, 1 water trap and 1 faucet.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
Assembly instructions
ÄNGSJÖN Bathroom vanity with drawers305.353.50ORRSJÖN Sink805.450.97BROGRUND Bath faucet905.321.03RÄNNILEN Water trap, 1 bowl504.224.13Advice and care instructions
ÄNGSJÖN Bathroom vanity with drawers305.353.50BROGRUND Bath faucet905.321.03BROGRUND Bath faucet905.321.03Technical information
BROGRUND
Bath faucet, chrome plated
Article number905.321.03| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 500 mm (19¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 102.3 cm (40 1/4 ")
- Depth: 49.4 cm (19 1/2 ")
- Height: 69.2 cm (27 1/4 ")
- Drawer front, thickness: 16 mm (5/8 ")
Packaging
ÄNGSJÖN
Article number305.353.50- Width: 48 cm (19 ")
- Height: 8 cm (3 ")
- Length: 114 cm (45 ")
- Weight: 20.43 kg (45 lb 1 oz)
- Package(s): 1
- Width: 50 cm (19 ½ ")
- Height: 7 cm (2 ½ ")
- Length: 104 cm (41 ")
- Weight: 17.32 kg (38 lb 3 oz)
- Package(s): 1
ORRSJÖN
Article number805.450.97- Width: 55 cm (21 ½ ")
- Height: 18 cm (7 ¼ ")
- Length: 106 cm (41 ¾ ")
- Weight: 28.56 kg (62 lb 15 oz)
- Package(s): 1
BROGRUND
Article number905.321.03- Width: 18 cm (7 ")
- Height: 6 cm (2 ¼ ")
- Length: 35 cm (13 ½ ")
- Weight: 1.50 kg (3 lb 5 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
