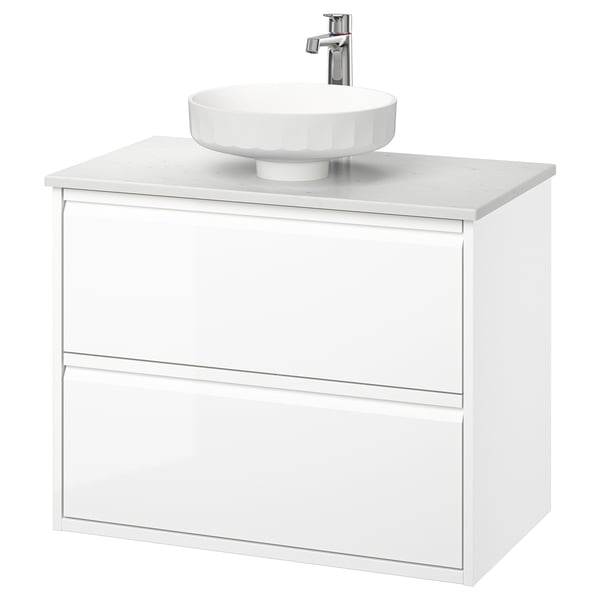

ÄNGSJÖN / LERSJÖN Bathroom vanity with sink & faucet
Must be completed with
How to get it
10-year guarantee
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details. This wash-stand with countertop and a round countertop wash-basin creates a personal and stylish centerpiece in your bathroom.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The high gloss finish in white creates a sleek and contemporary expression emphasized with integrated handles for a refined look.
The sink is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
Comprises: 1 washstand with drawers, 1 countertop, 1 semi-recessed sink, 1 water trap and 1 faucet.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Technical information
BROGRUND
Bath faucet, tall, chrome plated
Article number605.320.86| Type of tap | Sink mixer tap, tall |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 500 mm (19¾") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 82.0 cm (32 1/4 ")
- Depth: 49.0 cm (19 1/4 ")
- Height: 78.8 cm (31 ")
Packaging
ÄNGSJÖN
Article number205.353.41- Width: 61 cm (23 ¾ ")
- Height: 6 cm (2 ½ ")
- Length: 84 cm (33 ")
- Weight: 17.10 kg (37 lb 11 oz)
- Package(s): 1
- Width: 61 cm (23 ¾ ")
- Height: 6 cm (2 ½ ")
- Length: 84 cm (33 ")
- Weight: 15.20 kg (33 lb 8 oz)
- Package(s): 1
TOLKEN
Article number303.547.02- Width: 50 cm (19 ½ ")
- Height: 3 cm (1 ")
- Length: 94 cm (37 ")
- Weight: 6.33 kg (13 lb 15 oz)
- Package(s): 1
LERSJÖN
Article number605.929.52- Width: 40 cm (15 ¾ ")
- Height: 17 cm (6 ¾ ")
- Length: 40 cm (15 ¾ ")
- Weight: 6.00 kg (13 lb 4 oz)
- Package(s): 1
BROGRUND
Article number605.320.86- Width: 23 cm (8 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 41 cm (16 ¼ ")
- Weight: 1.86 kg (4 lb 2 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
