ÄNGSJÖN / BACKSJÖN Bathroom vanity with drawer
How to get it
10-year guarantee

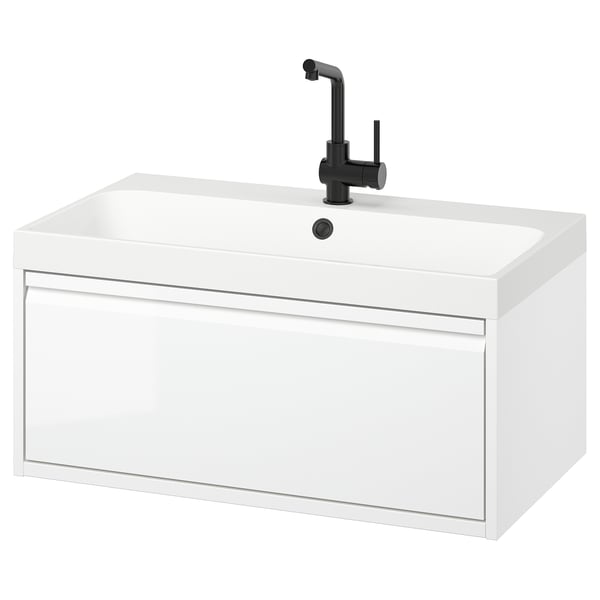

ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 1 drawer with full storage capacity and a sleek sink with crisp edges.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawer. The drawer opens all the way for a good overview.
The high gloss finish in white creates a sleek and contemporary expression emphasized with integrated handles for a refined look.
The sink is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Comprises: 1 washstand with drawers, 1 integrated sink, 1 water trap and 1 faucet.
Materials and care
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the sink.
Safety and compliance
Assembly and documents
Assembly instructions
ÄNGSJÖN Bathroom vanity with drawer805.353.81BACKSJÖN Sink605.499.54LUNDSKÄR Bath faucet805.325.56RÄNNILEN Water trap, 1 bowl504.224.13Advice and care instructions
ÄNGSJÖN Bathroom vanity with drawer805.353.81LUNDSKÄR Bath faucet805.325.56Technical information
LUNDSKÄR
Bath faucet, black
Article number805.325.56| Type of tap | Sink mixer tap |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 450 mm (17¾") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | BSMI, TISI |
Measurements
- Width: 80.2 cm (31 5/8 ")
- Depth: 47.5 cm (18 3/4 ")
- Height: 38.8 cm (15 1/4 ")
- Drawer front, thickness: 16 mm (5/8 ")
Packaging
ÄNGSJÖN
Article number805.353.81- Width: 47 cm (18 ½ ")
- Height: 9 cm (3 ½ ")
- Length: 90 cm (35 ¼ ")
- Weight: 17.74 kg (39 lb 2 oz)
- Package(s): 1
BACKSJÖN
Article number605.499.54- Width: 51 cm (20 ")
- Height: 17 cm (6 ¾ ")
- Length: 90 cm (35 ½ ")
- Weight: 14.80 kg (32 lb 10 oz)
- Package(s): 1
LUNDSKÄR
Article number805.325.56- Width: 20 cm (7 ¾ ")
- Height: 6 cm (2 ¼ ")
- Length: 35 cm (13 ¾ ")
- Weight: 1.68 kg (3 lb 11 oz)
- Package(s): 1
RÄNNILEN
Article number504.224.13- Width: 27 cm (10 ¾ ")
- Height: 8 cm (3 ¼ ")
- Length: 44 cm (17 ¼ ")
- Weight: 0.39 kg (14 oz)
- Package(s): 1
