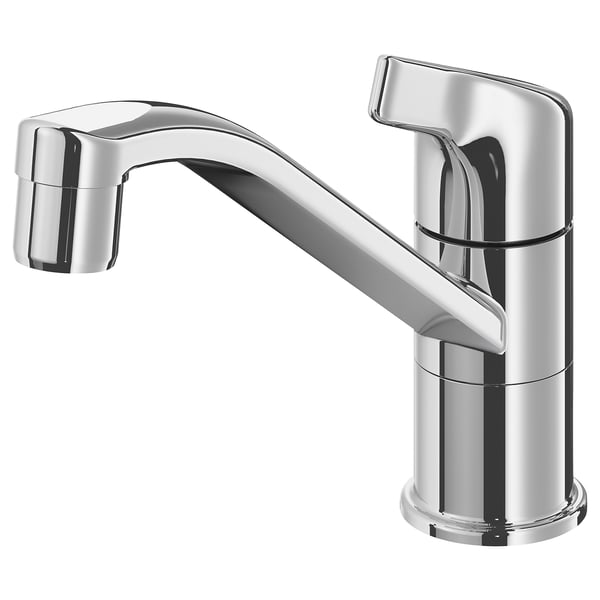

KALLSJÖN Pillar tap, chrome-plated
How to get it
2 year guarantee
KALLSJÖN tap is a perfect addition to complete your outdoor kitchen in a modern design. It’s easy to connect to your garden water supply using the quick connector that comes included with the tap.
Product details
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
The handle sits on top of the tap, making it easy for you to reach when turning the water on or off.
2 year guarantee. Read about the terms in the guarantee brochure.

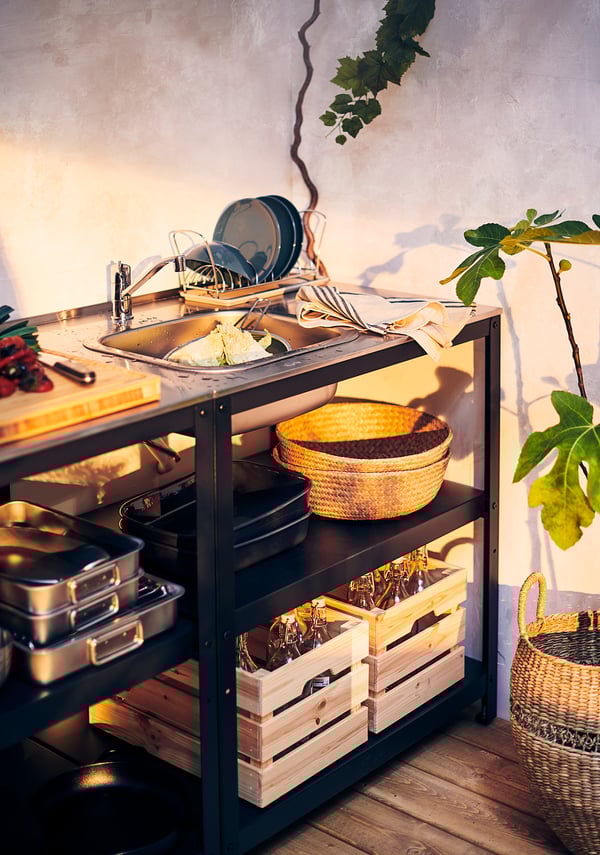

Developed for outdoor use and works perfectly together with GRILLSKÄR outdoor sink unit.
Suitable for indoor use as a cold water tap with swivel spout.
Technical information
KALLSJÖN
Pillar tap, chrome-plated
Article number604.863.53| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 23-37 mm (7/8-1 7/16") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Third party certified according to local standards by | TISI, BSMI |

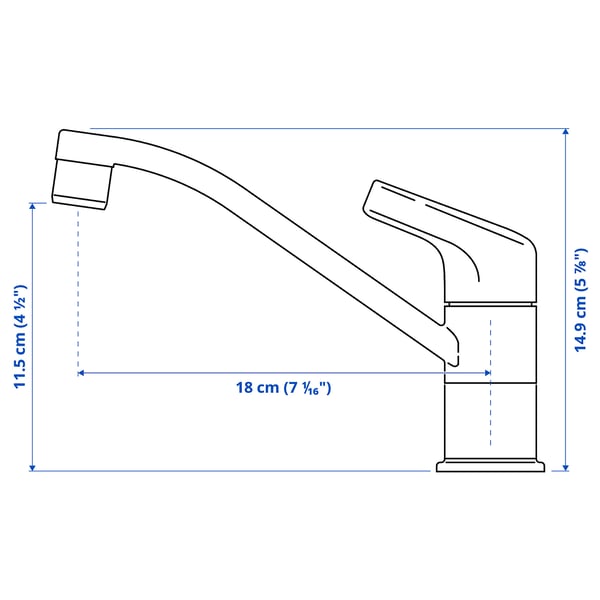

Measurements
- Length: 18 cm
- Height: 15 cm
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
