LAGAN Single-lever kitchen mixer tap, chrome-plated
How to get it
2 year warranty
This kitchen mixer tap can outlast many years of pouring, washing and rinsing. We’ve given it durable parts and put it through some of the toughest tests, so we can give you a guarantee of quality.
Delivery and assembly prices not included.Product details
MRP Rs.4,800 (incl. tax)
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Mikael Warnhammar
CHINA
IKEA India Pvt. Ltd., Plot C1, Commercial Complex, Sector 47, Urban Estate, near BPCL Petrol Pump, Gurgaon- 122018, Haryana
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Additional water and energy saving aerator (8 l/min.) for high-pressure system included.
Flow guide for low and high pressure systems included.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout: 360°.
Materials and care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Advice and care instructions
LAGAN Single-lever kitchen mixer tap803.674.91TECHNICAL INFORMATION
LAGAN
Single-lever kitchen mixer tap, chrome-plated
Article number803.674.91| Type of tap | Single-lever kitchen mixer tap |
| Max. flow rate at 3 bar | 8 l/min (2.1 gpm) |
| Recommended working pressure | 0.2 - 5 bar (0.02 - 0.5 MPa) (2.9 - 72.5 psi) |
| Min. working pressure | 0.1 bar (0,01MPa) (1.45 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |

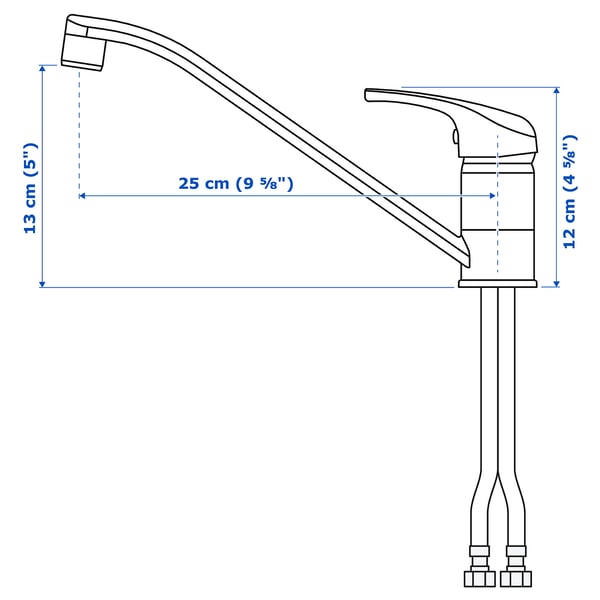

Measurements
- Height: 16 cm (6 1/4 ")
Packaging
LAGAN
Article number803.674.91- Width: 25 cm (9 ¾ ")
- Height: 5 cm (2 ")
- Length: 30 cm (11 ¾ ")
- Weight: 1.06 kg (2 lb 5 oz)
- Package(s): 1
Customer reviews
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
