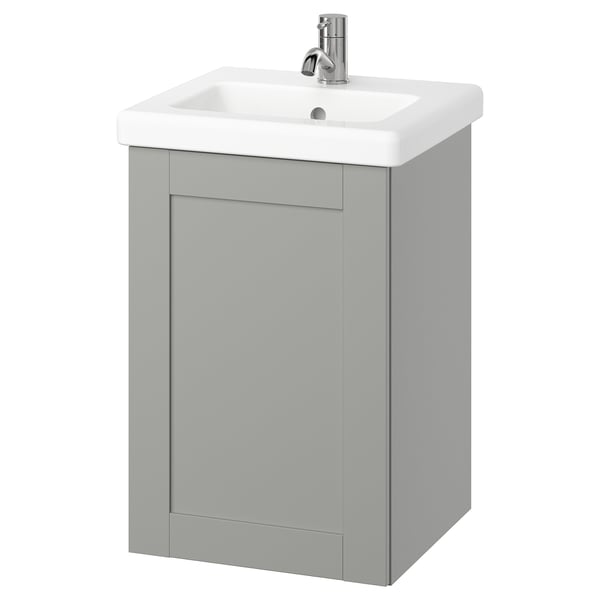

ENHET / TVÄLLEN Wash-stnd w door/wash-basin/tap, grey/grey frame, 44x43x65 cm (17 3/8x16 7/8x25 5/8 ")
How to get it
10 year warranty
ENHET series makes it easy to start fresh with a new bathroom solution. This base cabinet for wash-basin with shelf keeps towels handy and the grey framed door feels warm and inviting.
Product details

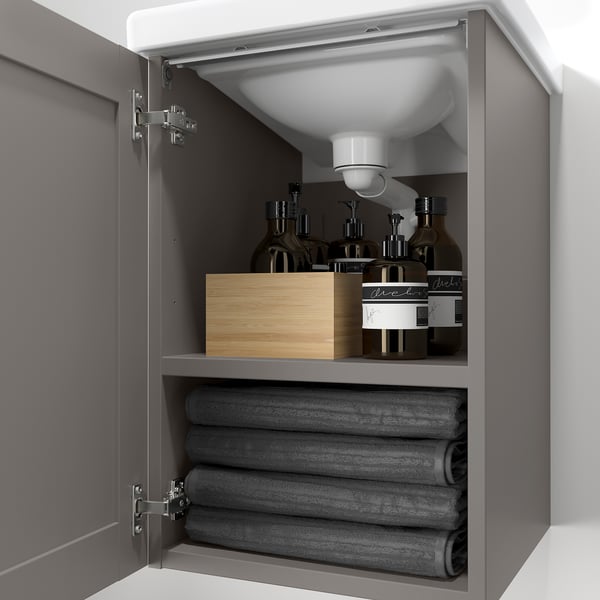

A base cabinet for wash-basin with shelf that is perfect for hiding towels and hygiene products that often create clutter.

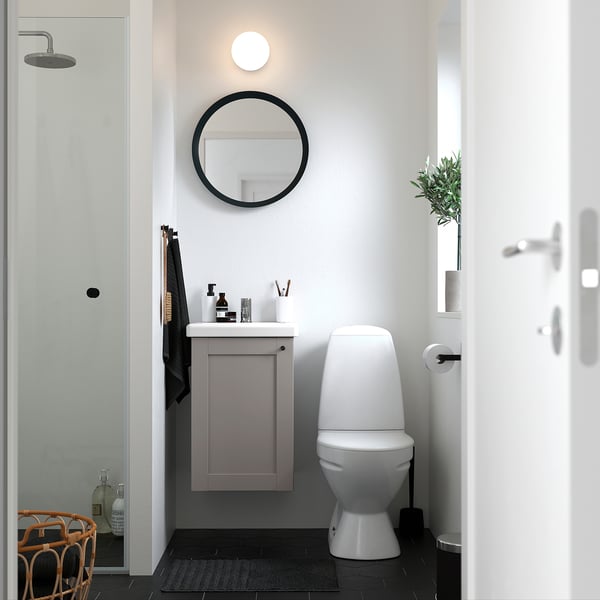

A perfect fit in the smallest bathrooms since the base cabinet is only 40 cm wide.
Smooth, durable and easy-to-clean ceramic wash-basin with space for toothbrushes, soap dispenser and other smaller things on the wide back edge.
You save water and energy every time you lift the lever of the mixer tap thanks to the aerator device that prevents unnecessary use of water.
Cleaning the floor is a breeze since this combination is wall-mounted.

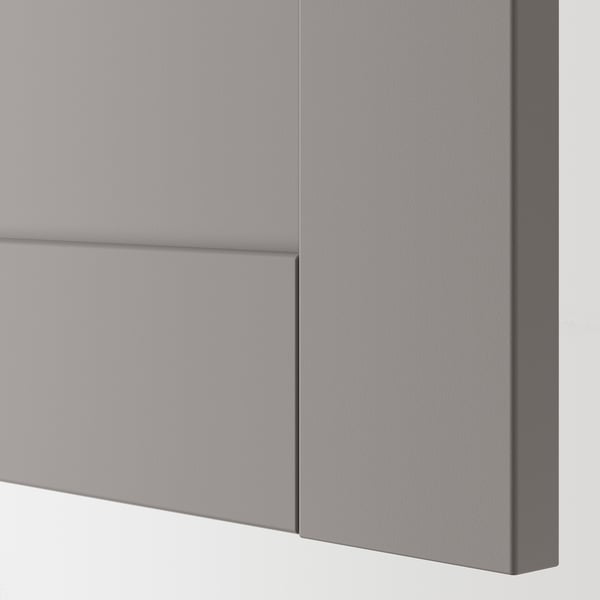

ENHET fronts in grey with frame go with everything and create a warm, cosy feel. A perfect choice if you want a discreet colour as a base. Modern or classic – you decide the style.
The unique wedge dowels make assembly easy and the fittings are nearly invisible.
Good to know
Mixer tap and strainer are included.
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Two persons are needed for the assembly of this furniture.
Ceramic wash-basins are kiln-fired, which makes each one unique and the size may vary slightly from the measurements given.
Water-trap is included.
Knobs and handles are sold separately.
Materials and care
Material
Fibreboard, Plastic foil
- Side panel/ Bottom panel/ Shelf:
- Particle- and fibreboard with honeycomb paper filling (100% recycled paper), Plastic foil, Plastic edging
- Back rail:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Safety and compliance
Assembly and documents
Assembly instructions
TECHNICAL INFORMATION
PILKÅN
Wash-basin mixer tap, chrome-plated
Article number605.328.59| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 0.2 - 5 bar (0.02 - 0.5 MPa) (2.9 - 72.5 psi) |
| Min. working pressure | 0.1 bar (0,01MPa) (1.45 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 44 cm (17 3/8 ")
- Wash-stand width: 40 cm (15 3/4 ")
- Depth: 43 cm (16 7/8 ")
- Height: 65 cm (25 5/8 ")
Packaging
This product comes as 5 packages.
ENHET
Article number804.814.39- Width: 41 cm (16 ")
- Height: 2 cm (¾ ")
- Length: 66 cm (26 ")
- Weight: 2.98 kg (6 lb 9 oz)
- Package(s): 1
ENHET
Article number504.405.96- Width: 41 cm (16 ¼ ")
- Height: 9 cm (3 ½ ")
- Length: 67 cm (26 ½ ")
- Weight: 10.92 kg (24 lb 1 oz)
- Package(s): 1
RÄNNILEN
Article number305.624.33- Width: 31 cm (12 ¼ ")
- Height: 8 cm (3 ")
- Length: 45 cm (17 ¾ ")
- Weight: 0.50 kg (1 lb 1 oz)
- Package(s): 1
TVÄLLEN
Article number104.816.35- Width: 48 cm (18 ¾ ")
- Height: 20 cm (7 ¾ ")
- Length: 48 cm (18 ¾ ")
- Weight: 13.70 kg (30 lb 3 oz)
- Package(s): 1
PILKÅN
Article number605.328.59- Width: 18 cm (7 ")
- Height: 6 cm (2 ¼ ")
- Length: 35 cm (13 ½ ")
- Weight: 0.90 kg (1 lb 16 oz)
- Package(s): 1
