VOXNAN Bath/shower set thermostatic faucet, chrome plated

Price $ 159.99

How to get it

DeliveryChecking availability...
Click & CollectChecking availability...
In storeChecking availability...
8 VOXNAN images
Skip images

Perfect for the tub as you can easily switch between shower mixer and bath spout. The 38°C safety stop button prevents water from getting too hot.

Article Number003.426.21

Product details

10 year limited warranty on the faucet and 3 year limited warranty on other parts. Read about the terms in the limited warranty brochure.

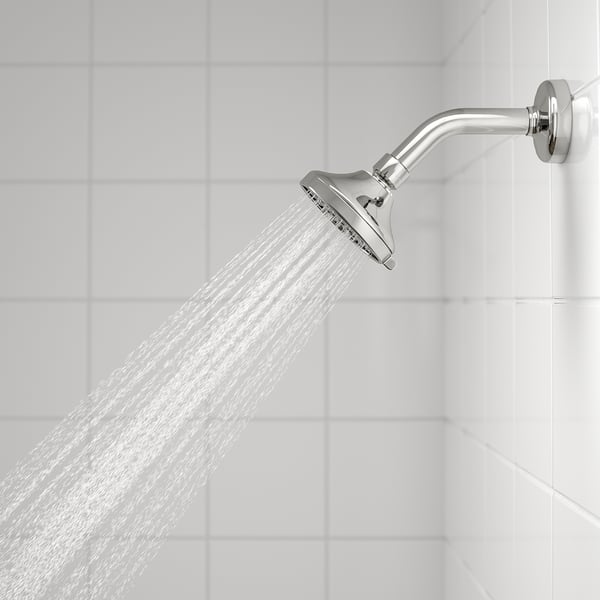

This showerhead with full spray function gives a wide and even coverage for a relaxing shower experience.

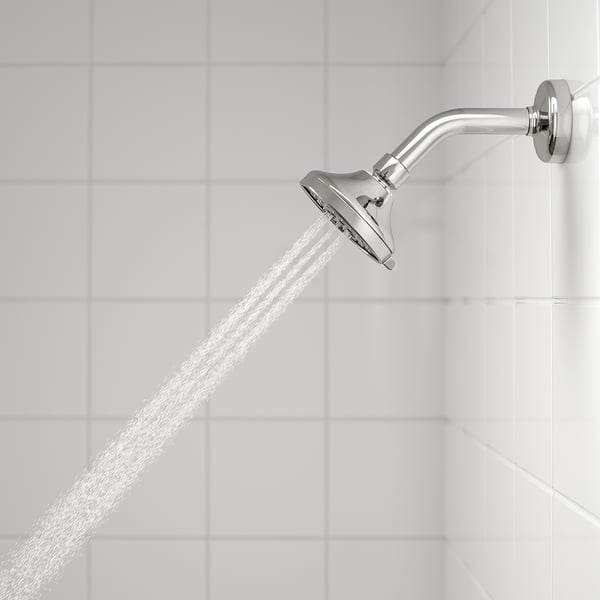

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.

You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.

A 100°F safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.

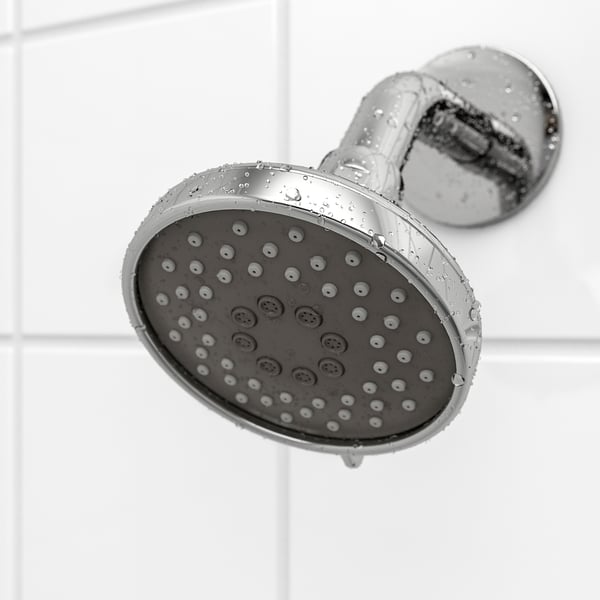

Easy to clean by rubbing the rubber nozzles on the showerhead.


H Preutz/N Karlsson

  • Comes with full, mist, full/mist spray functions.

    Separate flow and temperature controls.

    You can override the safety stop temperature by pressing the override button.

    Wall fittings included.

    Pressure compensating flow regulator included.

    The thermostatic faucet is pre-set to a safety stop temperature of 100°F. Since operating conditions in each supply system varies, it might be necessary to calibrate the faucet according to the service and installation instructions.

    Max. temperature hot water system 176°F.

    Recommended hot water temperature: 140°F-149°F.

    Recommended cold water temperature: 50°-59°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

  • Material
    Handheld showerhead inner housing/ Overhead showerhead inner housing/ Faceplate:
    Acetal plastic
    Handheld showerhead outer housing/ Overhead showerhead outer housing:
    ABS plastic, Chrome plated
    Synthetic rubber
    Stainless steel
    Thermostat faceplate:
    Brass, Chrome plated
    Zinc, Chrome plated

    To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.

    Rub away limescale deposits with your hands.

    Turn the thermostat from full cold to full hot from time to time.

    Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.

    Check the washers on a regular basis.

    Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.

    Warning:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • The thermostatic shower faucet can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
  • By creating all our faucets and showers in a way that helps people use less water and energy, we contribute to enabling a more sustainable life at home.

Technical information


Bath/shower set thermostatic faucet

Max. flow rate at 3 bar, head shower6.6 l/min (1.75 gpm)
Max. hot water temperature80˚C (176˚F)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Number of spray functions3
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Third party certified according to local standards by
Third party certified according to local standards byIAPMO
Type of showerBuilt-in thermostatic mixer
Type of showerShower Set

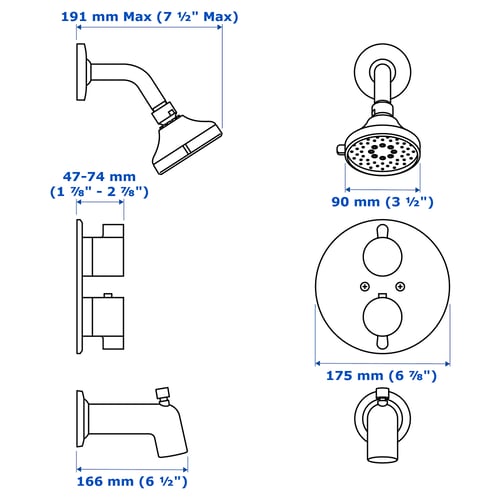

Thermostatic faucet diameter: 7 "

Spout, depth: 6 ½ "

Shower head diameter: 3 ½ "

  • VOXNANArticle Number003.426.21

    Width: 8 "

    Height: 6 ¼ "

    Length: 14 ¼ "

    Weight: 9 lb 3 oz

    Package(s): 1

Good QualityKat123123I have always been very happy with IKEA bathroom and kitchen faucets. I was excited to try the IKEA shower fixtures and I am not disappointed.5
Chrome spotted with first useHueyetteInternal parts are heavy brass and should last a long time, the chrome finish on the other hand spotted from the very first time it was used. The spotting was not caused by minerals, just some weird blueish spots all over the chrome parts.3
VOXNAN Bath/shower set thermostatic faucet, chrome plated

Efficient showers for everyday indulgence

With VOXNAN, BROGRUND and VALLAMOSSE showers, we want to help you save water and energy while enjoying a warm and nice shower. To succeed, we had to find just the right balance between the pressure in the water spray of the showers and water consumption. So how could we find out that the balance was right? It was all about changing into swimwear and turning on the mixer.

But before we got that far ― even before looking at all the technical details ― we interviewed people in different countries about their bathrooms and shower habits. Then we understood how important a few minutes under spraying water can be. Since it's not just about being clean, getting in the shower can also be a way to rinse off stress and unwind ― to take a moment for yourself or just wake up to a new day. When you rub the sleep out of your eyes in the shower, the spraying water naturally helps. But did you know that only 3% of all water on the planet is freshwater? And most of it is actually bound in ice. Since this limited freshwater is a vital resource for all of life, we must help to nurture it.

The engine of the shower

This is where the shower range comes in. We want to make it simple to save water and energy. With smart technology, the thermostatic mixer and shower arm make this simple. Antony Smith, who was part of the shower development team, has worked with mixers and showers since he finished university long ago. He describes the thermostatic mixer as the shower's engine "It's the mixer which ensures that there's an even water flow and the right temperature". Antony explains that it's thanks to the thermostatic mixer that your shower water is not affected if someone turns on the water in the kitchen. You can calmly continue singing in the shower ― without the risk of being burned or getting a cold shock. The mixers that the team developed also have a 38°C safety stop button, so there's no risk of you or any child accidentally raising the temperature.

Shower testing in swimwear

Another important key to creating both a comfortable and sustainable shower range is the small washer that sits in the shower arm which regulates the water flow. The challenge for the team was to find just the right balance between the water flow and pressure, so that you can use less water without affecting the shower experience. There was only one way for the team to see if they succeeded: "When we went to the supplier in China to test the first prototypes, we all packed our swimwear," says Antony smiling. With his swimwear on, he tested different water spray functions: full, mesh, mist, massage and various combinations of them. "How people prefer to shower is individual, and with the different streams, we allow everyone to adapt their shower experience. And maybe you'll enjoy showering a little more when you know that it's both water and energy efficient."


What is brass?

Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.

Function solution

Designed with safety in mind NA

IKEA thermostatic shower faucets have a 100°F safety button that must be deliberately pressed to reach higher temperatures, but will never exceed 110°F – which is safe for human skin. Another smart feature is the “cold touch”, anti-scald technology which ensures that the shower faucets will never heat up or cause burns. Whether the preference is modern or more traditional style, IKEA shower faucets offer a great shower experience with the highest safety in mind.
