BROGRUND Sink faucet with sensor, chrome plated
How to get it
Collect 200 points with
It's OK to change your mind
Low Price Guarantee
More ways to pay
Like magic, the water turns on at the slightest hand movement in front of the tap, at a pre-set temperature. A clean and simple design that is hygienic too, since you don’t need to touch the tap.
Product details
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
Built-in pressure compensating aerator keeps the water flow just right and enables water-efficiency.
H Preutz/N Karlsson
Good to know
A tool is included that makes it easy to install the faucet in place.
Water and energy saving aerator (4.5 l/min, 1.2 gpm) for high-pressure systems included.
Connection hoses with 9/16" x 24UNEF connection included. Connection length: 23".
4 batteries (LR6 AA 1.5V) included.
Max. temperature hot water system 176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Replacement batteries are available in most stores where alkaline batteries are sold.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA sinks and standard sinks from other manufacturers.
Flow rate: 1.2 gal./min. (4.5 l/min.)
The water turns on automatically when the sensor detects your hands or an object in front of it, and turns off automatically 2 seconds after removing them.
The water temperature is controlled using the lever on the side of the faucet.
Materials and care
Material
- Body:
- Zinc, Chrome plated
- Inner body:
- Brass
Care
Wipe clean with a water dampened soft cloth and a mild non-abrasive dish detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
BROGRUND Sink faucet with sensor804.233.50Technical information
BROGRUND
Sink faucet with sensor, chrome plated
Article Number804.233.50| Type of tap | Sink mixer tap with sensor |
|---|---|
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1⅜-1 7/16") |
| Connection hoses length | 450 mm (17¾") |
| Hose connection size | 9/16" x 24UNEF |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Amount of batteries | 4 pcs |
| Battery type | AA |
| Third party certified according to local standards by |

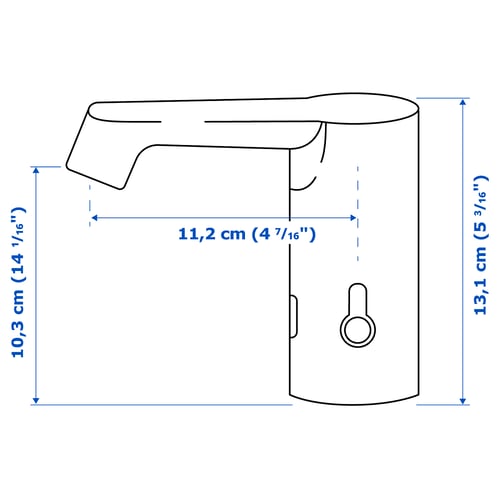

Measurements
- Height: 5 1/8 "
Packaging
BROGRUND
Article Number804.233.50- Width: 8 "
- Height: 2 ¾ "
- Length: 13 ½ "
- Weight: 3 lb 10 oz
- Package(s): 1
Reviews
Customer reviews
Related products
Explore more options
Recommended for you
SustainabilityPeople and planet
Energy and resources
Hygienic and convenient - Magic at the slightest movement of the hand
Morning rush hour can get a bit messy with all the activities around the wash-basin, which is sometimes shared by several people. BROGRUND wash-basin mixer tap with sensor makes things easier and more hygienic since the water turns on with a slight hand movement and then turns off automatically – without touching the mixer tap. No more puddles of water on or around the tap from wet hands – and the temperature is conveniently pre-set using the small lever on the side.
Material
What are zinc and zamak?
Zinc is a metallic element while zamak is a mixture of zinc, aluminium, magnesium and copper. Both are durable materials and easy to cast into different shapes. They are good at conducting heat and electricity. Objects made of zinc or zamak are often given a surface treatment to resemble metals like gold, brass or stainless steel. Both zinc and zamak retain their good properties when they are recycled to become new objects.
