ÄNGSJÖN / BACKSJÖN Wash-stnd w drawers/wash-basin/tap, oak effect, 60x48x69 cm
How to get it
10 year guarantee
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 2 spacious drawers and a wash-basin with crisp edges for a sleek look.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The oak effect finish with a natural wooden look transforms the space into a relaxing, at-home wellness retreat. A contemporary expression enhanced with integrated handles, minimising unnecessary details.
The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 integrated wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
Brass, Chrome-plated
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
- Frame/ Middle rail/ Bottom panel/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer front:
- Particleboard, Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer bottom:
- Fibreboard, Plastic foil
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
BACKSJÖN Wash-basin305.499.41BROGRUND Wash-basin mixer tap905.321.03RÄNNILEN Water trap w flexible pipe, 1 bowl305.624.33ÄNGSJÖN Wash-stand with drawers405.353.35Advice and care instructions
BROGRUND Wash-basin mixer tap905.321.03BROGRUND Wash-basin mixer tap905.321.03Technical information
BROGRUND
Wash-basin mixer tap, chrome-plated
Article number905.321.03| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 500 mm (19 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

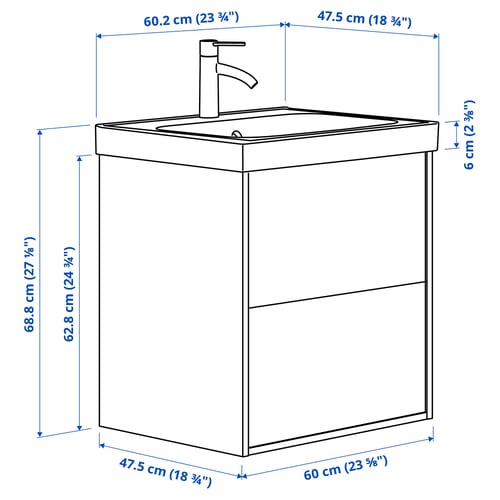

Measurements
- Width: 60.2 cm
- Depth: 47.5 cm
- Height: 68.8 cm
Packaging
BACKSJÖN
Article number305.499.41- Width: 51 cm
- Height: 16 cm
- Length: 70 cm
- Weight: 12.50 kg
- Package(s): 1
BROGRUND
Article number905.321.03- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
RÄNNILEN
Article number305.624.33- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.50 kg
- Package(s): 1
ÄNGSJÖN
Article number405.353.35- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 10.48 kg
- Package(s): 1
