How to get it
10 year guarantee
This kitchen tap has a high-arc gooseneck spring with pull-down spout, offers full sink coverage for easy prep and clean-up. The tap aerator generates a smooth flow, while supporting water conservation.
Product details
The pull-down spout lets you easily pivot the spray to rinse veggies, fill pots and clean every corner of your sink.
Dual-spray functionality allows you to switch between regular flow and spray for tasks like filling pots and a spray mode for rinsing dishes.
The tap aerator combines air with the stream and generates a smooth gentle flow, while supporting water conservation over time.
High-quality spout hose for reliability and outstanding performance.
PVD coating provides exceptional hardness, wear resistance and attractive finish.
The upward movement of the side lever makes it harder for small children to reach and operate, reducing the risk of accessing hot water.
Adjustable spout swivel, 120° or 360°.
Ceramic disc cartridge ensures long-term drip-free operation.
10-year guarantee. Read about the terms in the guarantee brochure.
Ebba Strandmark
Good to know
Max. 7.5 l/min water flow at 3 bar pressure.
Connection hoses with G3/8" (R10) connection included.
To be mounted in a 34-37 mm hole in a max. 55 mm thick sink/worktop.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Spring:
- Stainless steel
- Knob/Handle/Body/Spout:
- Zinc
Care
Wipe dry with a clean cloth.
Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Safety and compliance
Assembly and documents
Assembly instructions
TAKSJÖN Kitchen mixer tap pull down w spray506.023.05Advice and care instructions
TAKSJÖN Kitchen mixer tap pull down w spray506.023.05TAKSJÖN Kitchen mixer tap pull down w spray506.023.05Technical information
TAKSJÖN
Kitchen mixer tap pull down w spray, stainless steel colour
Article number506.023.05| Brand Name | IKEA |
| Max. flow rate at 3 bar | 7.5 l/min |
| Annual energy consumption | 655 kWh/p.a. |
| Min. working pressure | 1.4 bar (0,14MPa) (20.3 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

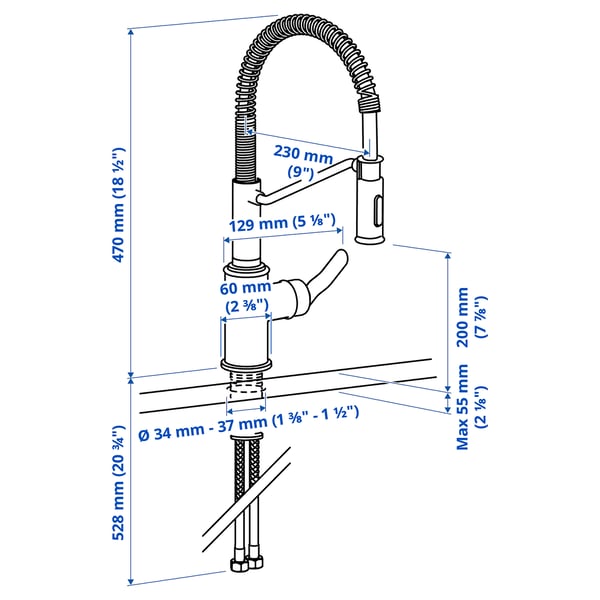

Measurements
- Height: 470 mm
Packaging
TAKSJÖN
Article number506.023.05- Width: 31 cm
- Height: 7 cm
- Length: 69 cm
- Weight: 2.97 kg
- Package(s): 1
