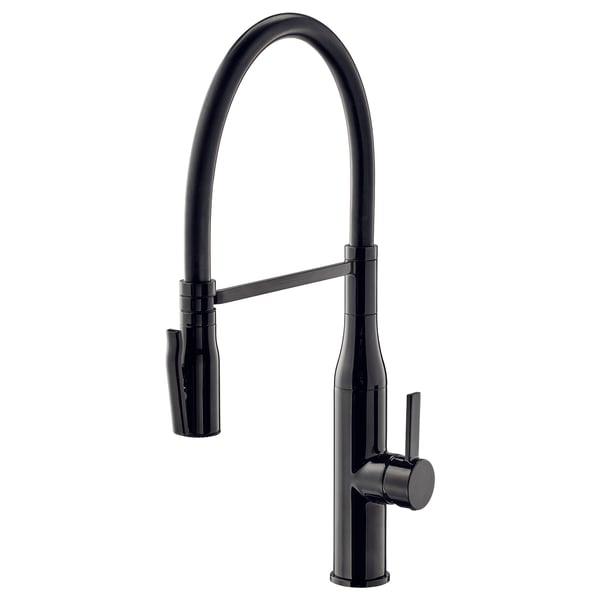

TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
How to get it
10 year guarantee
TOLLSJÖN tap in black helps lower water- and energy-use – so you can lower your bills too. The handspray is practical for cleaning veggies and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

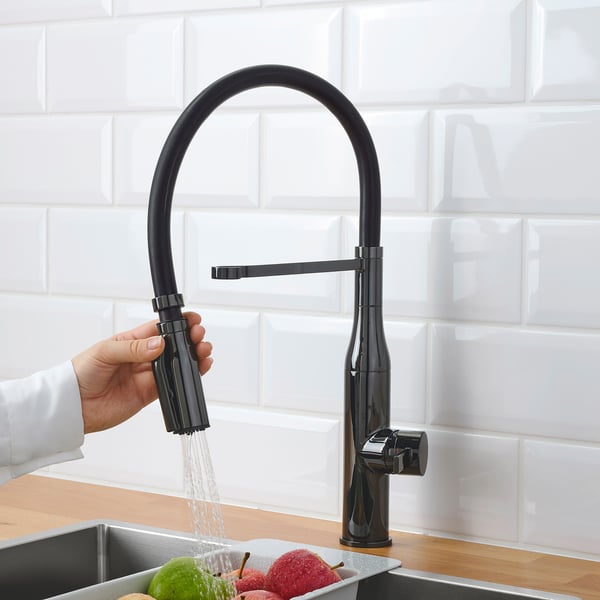

The tap functions two ways, so you can switch between a concentrated stream and a shower function.
Washing and rinsing are easier thanks to the detachable handspray.
Equipped with check valve to prevent back flow.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
To have sufficient room to use the handspray there must be at least 55 cm of space between your worktop and wall cabinet.
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
Brass, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe clean with a dry cloth.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
TOLLSJÖN Kitchen mixer tap/handspray604.938.67Advice and care instructions
TOLLSJÖN Kitchen mixer tap/handspray604.938.67TECHNICAL INFORMATION
TOLLSJÖN
Kitchen mixer tap/handspray, black polished metal
Article number604.938.67| Type of tap | Kitchen mixer tap/sep handspray |
| WELS rating | A |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | SASO |

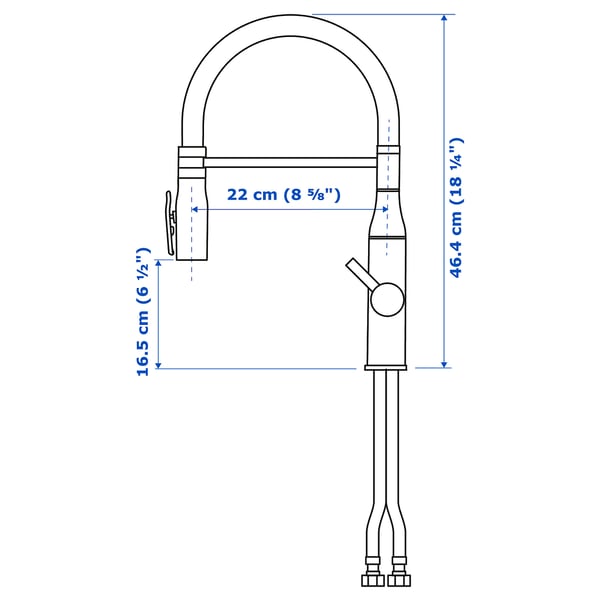

Measurements
- Length: 22 cm
- Height: 46 cm
Package details
TOLLSJÖN
Article number604.938.67- Width: 29 cm
- Height: 6 cm
- Length: 53 cm
- Weight: 3.09 kg
- Package(s): 1
