- Type of tapKitchen mixer tap with pull-out spout
- WELS ratingB
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length450 mm (17 3/4")
- Hose connection sizeG 3/8" (R10)
- Swivel spout120 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Third party certified according to local standards bySASO

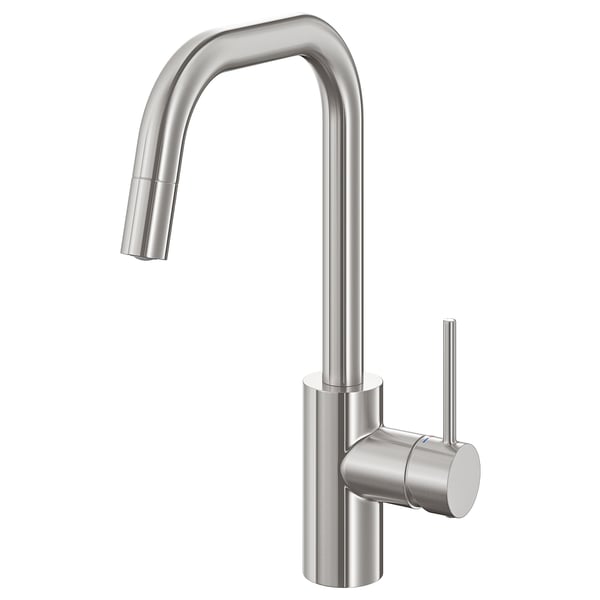

ÄLMAREN Kitchen mixer tap w pull-out spout, stainless steel colour
﷼ 699
Price incl. VAT
Price excludes shipping costs
How to get it
Checking availability...ÄLMAREN
004.941.6710 year guarantee. Read about the terms in the guarantee brochure.
Product features
10 year guarantee
More information
Material
- Spout:
- Stainless steel, Metallized
- Body:
- Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Assembly instructions
ÄLMAREN Kitchen mixer tap w pull-out spout004.941.67Advice and care instructions
ÄLMAREN Kitchen mixer tap w pull-out spout004.941.67

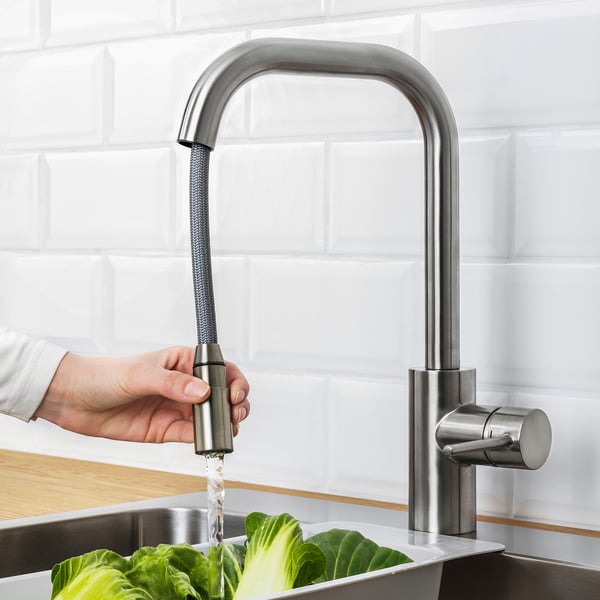

Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Equipped with check valve to prevent back flow.
Designer
Brickstad/Palleschitz/Petersén
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
Material
- Spout:
- Stainless steel, Metallized
- Body:
- Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
- Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
ÄLMAREN Kitchen mixer tap w pull-out spout004.941.67Advice and care instructions
ÄLMAREN Kitchen mixer tap w pull-out spout004.941.67
- 004.941.67
1 × ÄLMAREN
Kitchen mixer tap w pull-out spout- Width: 29 cm
- Height: 7 cm
- Length: 55 cm
- Weight: 2.90 kg
