INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated

Name: INSJÖN Kitchen mixer tap w pull-out spout - chrome-plated
Brand: IKEA
SKU: 404.941.70

﷼695﷼ 695

Last chance to buy

: ﷼779﷼ 779

Price incl. VAT

Price excludes shipping costs

How to get it

10 year guarantee

INSJÖN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.

Article number404.941.70

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

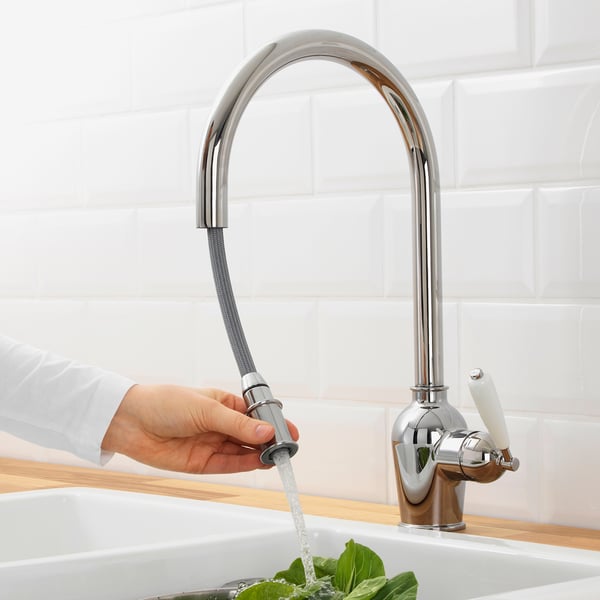

Rinsing dishes is easier with the pull-out spout.

A counterweight makes the hose easily retract back into the kitchen mixer tap.

The high spout makes it easier to wash dishes, including large pots.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

Brickstad/Palleschitz/Petersén

If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
Material
Zinc, Chrome-plated
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
INSJÖN Kitchen mixer tap w pull-out spout404.941.70
Advice and care instructions
INSJÖN Kitchen mixer tap w pull-out spout404.941.70

TECHNICAL INFORMATION

INSJÖN

Kitchen mixer tap w pull-out spout, chrome-plated

Article number404.941.70

Type of tap	Kitchen mixer tap with pull-out spout
WELS rating	B
Recommended working pressure	1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure	0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure	10 bar (1,0MPa) (145.0 psi)
Max. worktop thickness	50 mm (2")
Mounting hole measurement	34-37 mm (1 3/8-1 7/16")
Connection hoses length	450 mm (17 3/4")
Hose connection size	G 3/8" (R10)
Swivel spout	120 °
Recommended cold water temperature	10-15˚C (50-59˚F)
Recommended hot water temperature	60-65°C (140-150°F)
Max. hot water temperature	80˚C (176˚F)
Strainer included	No
Third party certified according to local standards by	SASO
