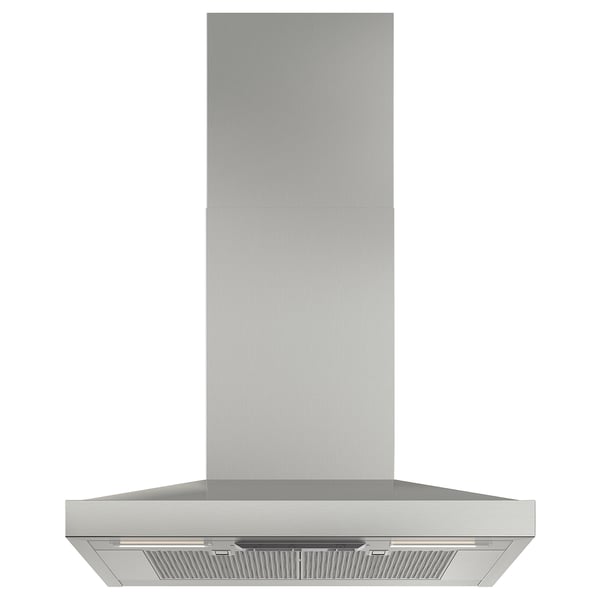

VINSTGIVANDE Wall mounted extractor hood, stainless steel
How to get it
5 year guarantee

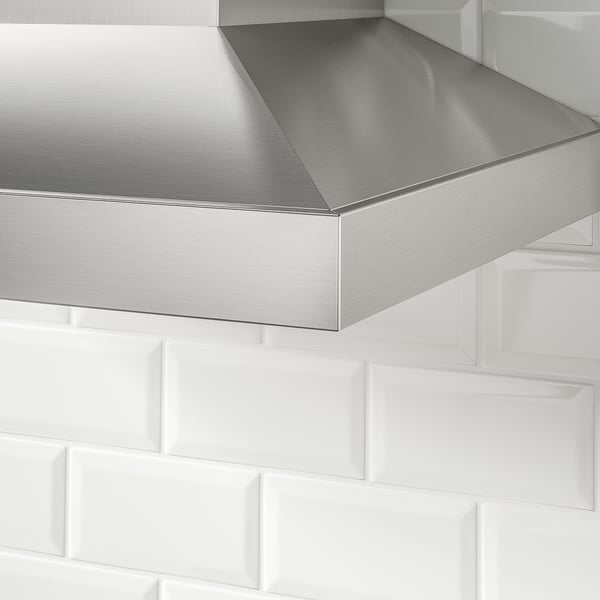

Classic hood with all the basic functions needed. The timeless stainless steel design fits most kitchens and all of our other stainless steel appliances. A LED light source gives even work lighting.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.

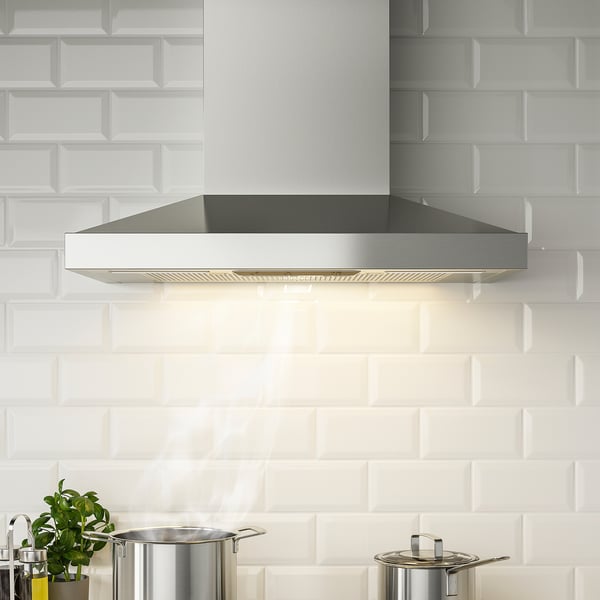

2 LED bulbs included; effectively illuminate the cooking surface.
You can easily remove and clean the grease filter. 2 grease filters included.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
7.0 sones.
360 CFM.
Motor power: 240W.
Voltage: 120V.
Wall-mounted extractor hood with 3 speeds.
For optimal performance when using your extractor hood on a daily basis, it is recommended that you replace your filter every 6 months.
For recirculation installation: to be completed with NYTTIG FIL 01 and NYTTIG FIL 10 charcoal filter with conversion kit.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
2 grease filters included.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly and documents
Assembly instructions
VINSTGIVANDE Wall mounted extractor hood504.660.01Advice and care instructions

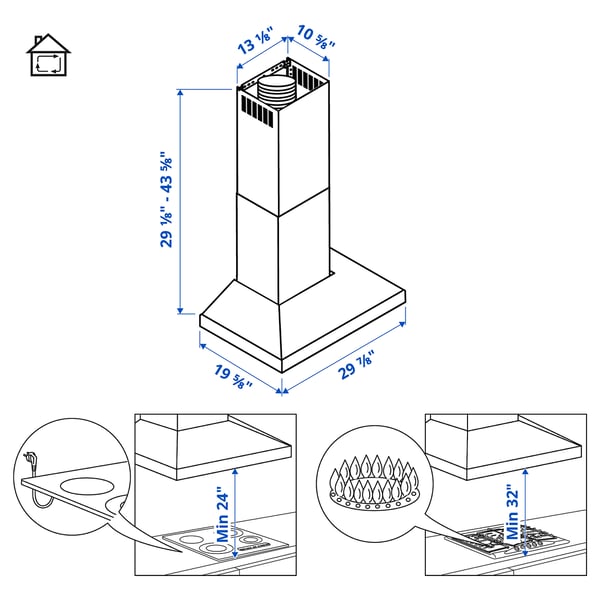

VINSTGIVANDE Wall mounted extractor hood504.660.01Measurements
- Max. height extraction: 99.7 cm
- Min. height extraction: 62.7 cm
- Max. height recirculation: 110.8 cm
- Min. height recirculation: 74.1 cm
- Width: 76.0 cm
- Depth: 50.0 cm
- Height: 49.3 cm
- Weight: 17.20 kg
- Width of chimney: 33.3 cm
- Depth of chimney: 26.9 cm
Packaging
VINSTGIVANDE
Article number504.660.01- Width: 67 cm
- Height: 46 cm
- Length: 87 cm
- Weight: 23.70 kg
- Package(s): 1
Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
