How to get it
10 year guarantee
- Pull-down spout
- Swivel spout 120° and 360°
- Shower-spray
- Aerator

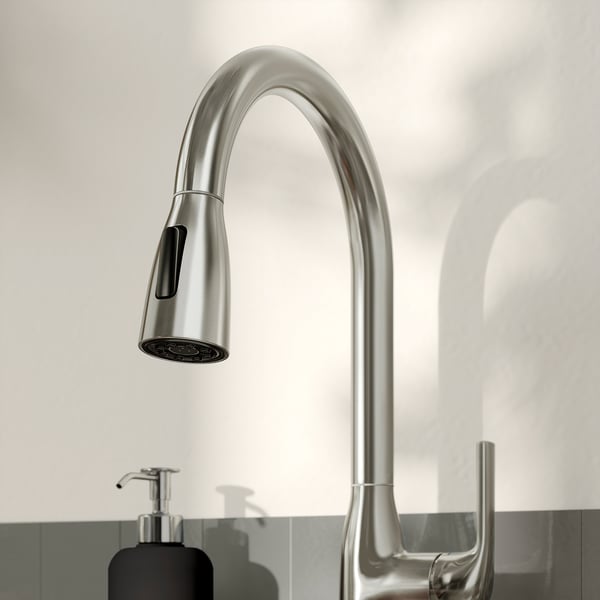

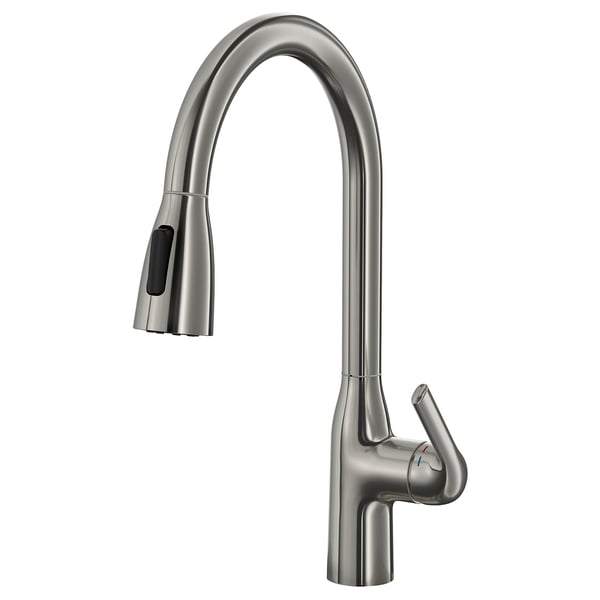

This MACKSJÖN kitchen mixer tap has a high-arc gooseneck spout with pull-down spray, offering both aerated stream and powerful spray, for easy cleaning or food prep in all corners of your sink.
Product details
Peace of mind with our 10-year guarantee, bringing you years of worry-free living at home with lasting quality and dependable performance.
Ergonomically designed two-function spray head for comfortable grip.
The tap aerator combines air with the water stream and generates a smooth gentle flow, while enabling water efficiency over time.
Dual-function spray head switches between aerated stream and full spray.
Flexible hose allows for easy movement, pivoting and reaching every corner of the sink.
Premium spout hose for high reliability and outstanding performance.
Smooth and fast spout hose retraction thanks to a snap-on weight under the sink/countertop.
PVD coating offers exceptional hardness, wear resistance, and a visually pleasing finish.
Ceramic disc cartridge to ensure long-term drip-free operation.
360° rotating spout for enhanced versatility.
IKEA of Sweden
Good to know
Connection hoses with 1/2"-14 NPSM connection included.

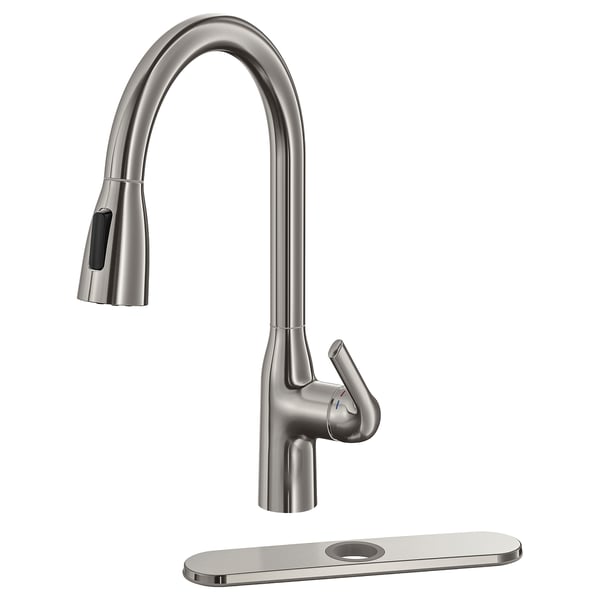

Deck plate to cover existing holes included.
Fitted with an integral flow regulator for consistent water flow and an aerator for a soft stream.
The spout can be pulled out approx. 30 cm.
Swivel spout: 360°.
To be mounted in a 34-37 mm hole in a max. 55 mm thick sink/worktop.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Recommended hot water temperature is 60°C. Max. temperature hot water connection 80°C.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Body/ Handle:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide plastic
- Spout:
- Stainless steel, Metallized
Care
Wipe dry with a clean cloth.
Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Safety and compliance
Assembly and documents
Assembly instructions
MACKSJÖN Kitchen mixer tap pull down w spray506.138.51Technical information
MACKSJÖN
Kitchen mixer tap pull down w spray, stainless steel colour
Article number506.138.51| Type of tap | Kitchen mixer tap/handspray |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Hose connection size | ½"-14 NPSM |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | IAPMO |

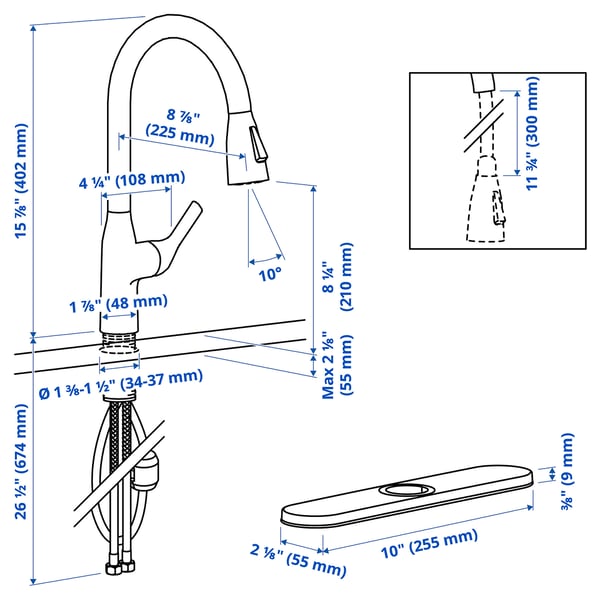

Measurements
- Height: 42 cm
Packaging
MACKSJÖN
Article number506.138.51- Width: 28 cm
- Height: 6 cm
- Length: 58 cm
- Weight: 2.40 kg
- Package(s): 1
