VOXNAN Shower set with thermostatic mixer, chrome-plated
How to get it
3 year guarantee

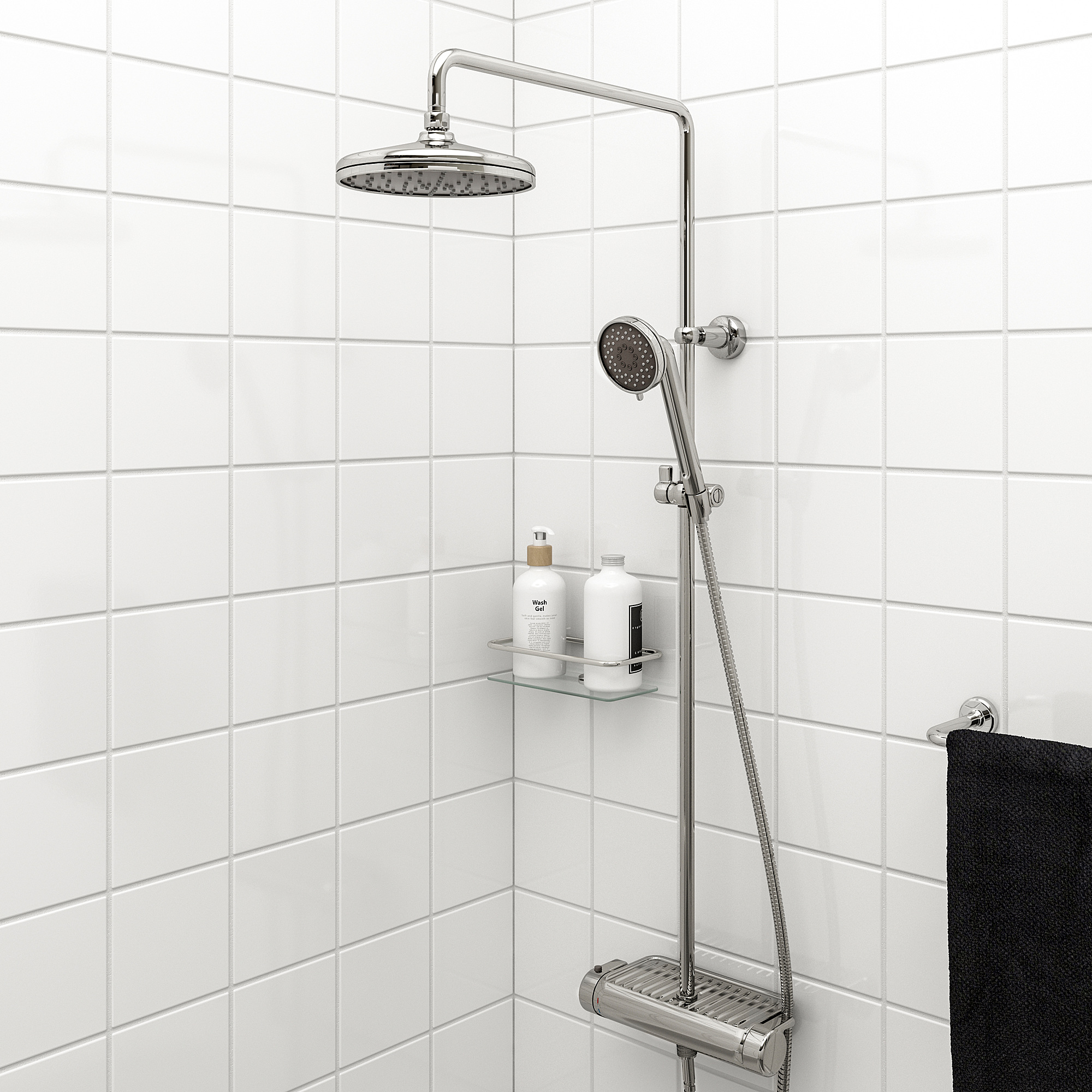

A head/hand shower set with full spray and mesh spray with boosted force. The 38°C safety stop prevents water from getting too hot and the “cold touch” feature keeps a safe temperature on the mixer bar.
Product details
3 year guarantee. Read about the terms in the guarantee brochure.

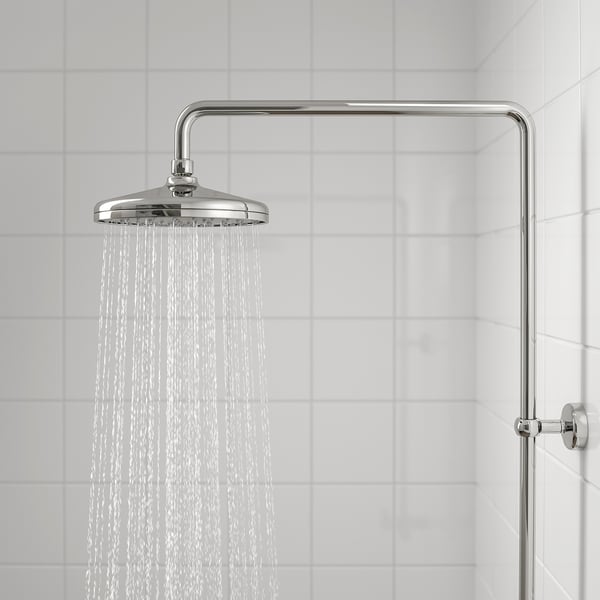

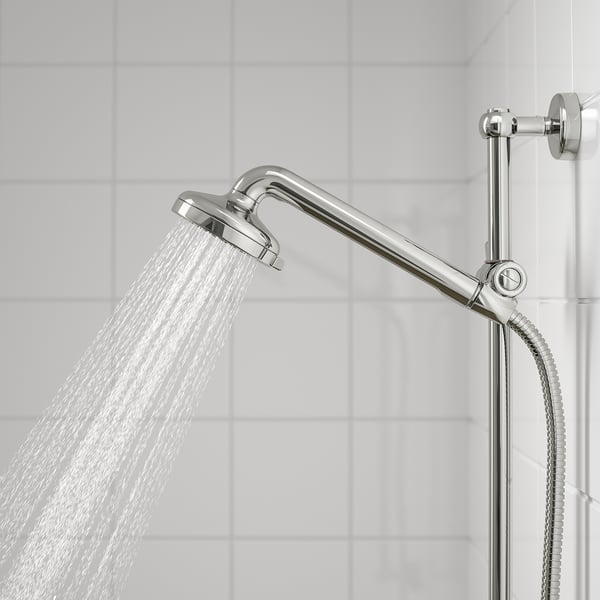

The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

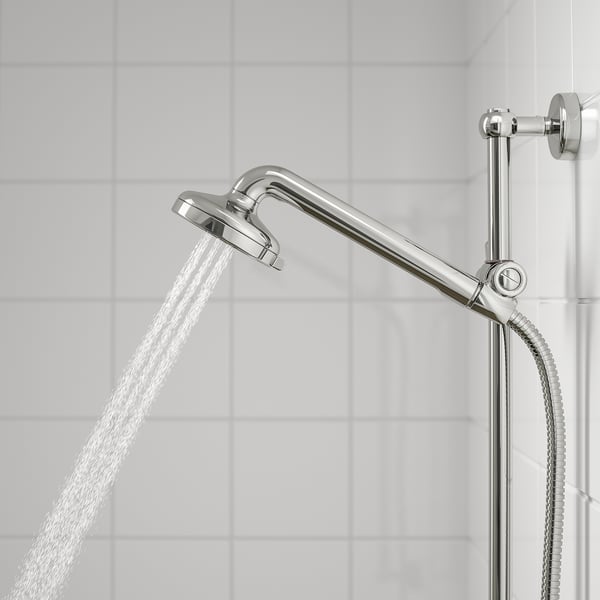

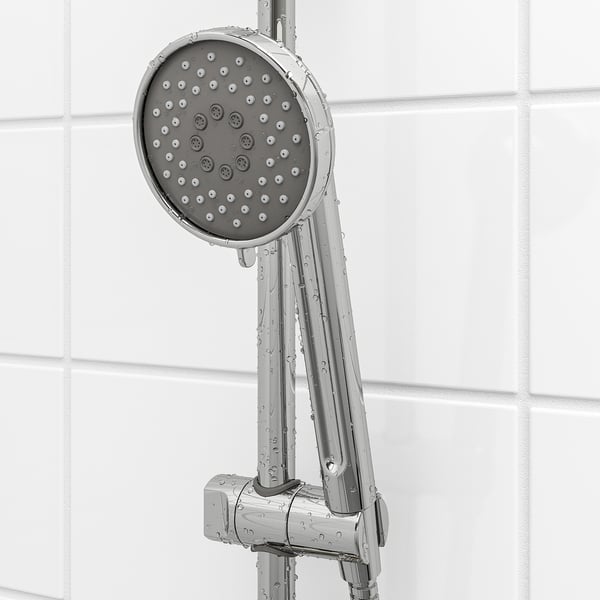

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.
You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.

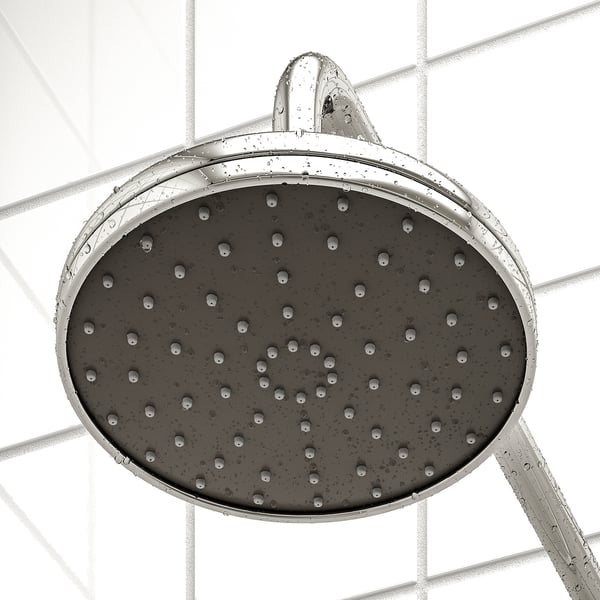

Easy to clean by rubbing the rubber nozzles on the shower heads.

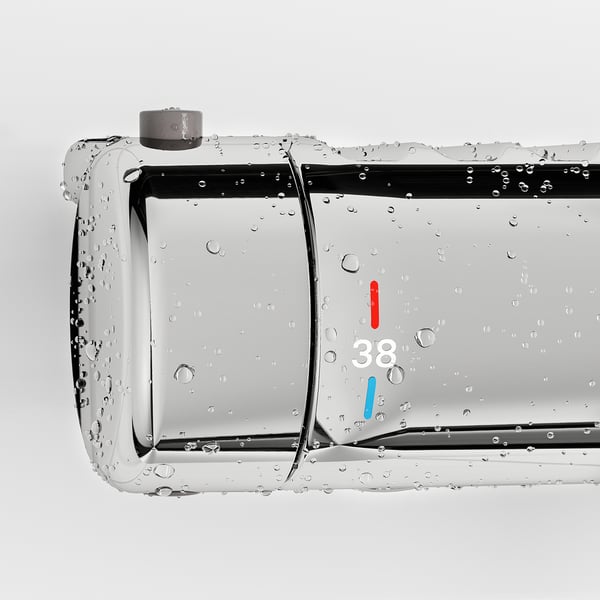

A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.
The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch.
The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.
You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.
A washer integrated in the shower keeps the water flow just right while less water and energy is used.
H Preutz/N Karlsson
Good to know
Pressure compensating washers included with the shower head/hand shower.
Wall fittings included.
Pressure compensating flow regulator included.
The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.

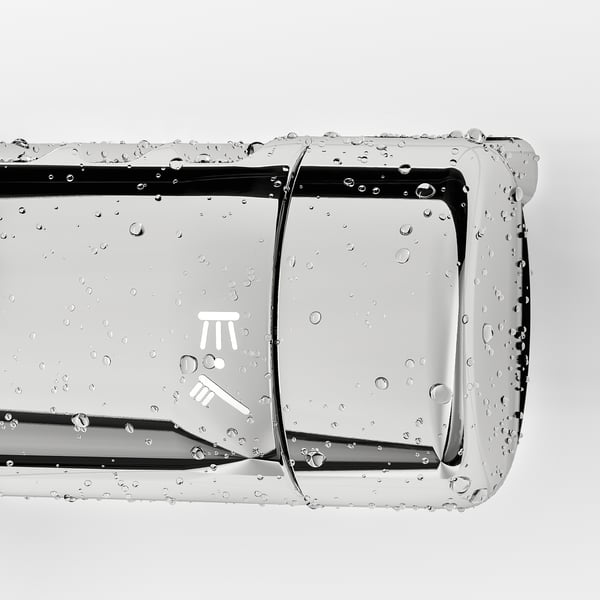

Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
150 mm fixed inlet centres.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
The hand shower consumes 8 l of water/min. and the head shower consumes 9.5 l of water/min.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Nozzle:
- Synthetic rubber
- Inner hose:
- Silicone rubber
- Outer hose:
- Stainless steel
- Pipe:
- Brass, Chrome-plated
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Holder:
- Acetal plastic, Chrome-plated
- Thermostat body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
VOXNAN Shower set with thermostatic mixer403.426.00Advice and care instructions

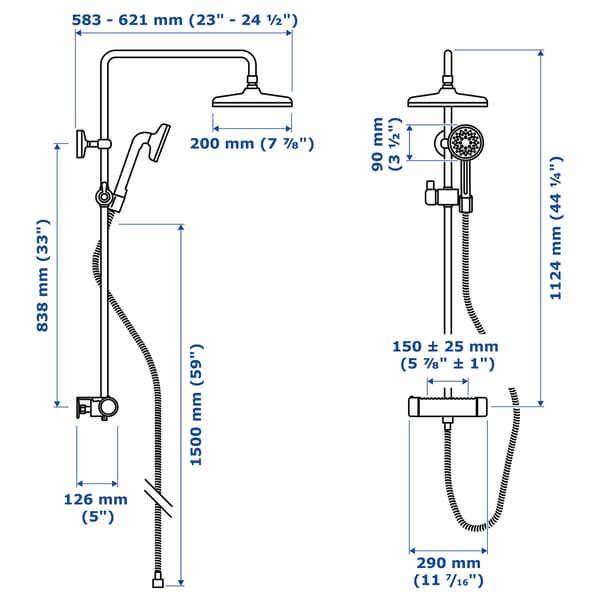

VOXNAN Shower set with thermostatic mixer403.426.00VOXNAN Shower set with thermostatic mixer403.426.00Measurements
- Connection centre distance: 150 mm
- Handshower diameter: 90 mm
- Headshower diameter: 200 mm
- Length of hose: 1500 mm
- Width: 290 mm
- Depth: 580 mm
- Height: 1160 mm
Packaging
VOXNAN
Article number403.426.00- Width: 34 cm
- Height: 11 cm
- Length: 86 cm
- Weight: 6.74 kg
- Package(s): 1
