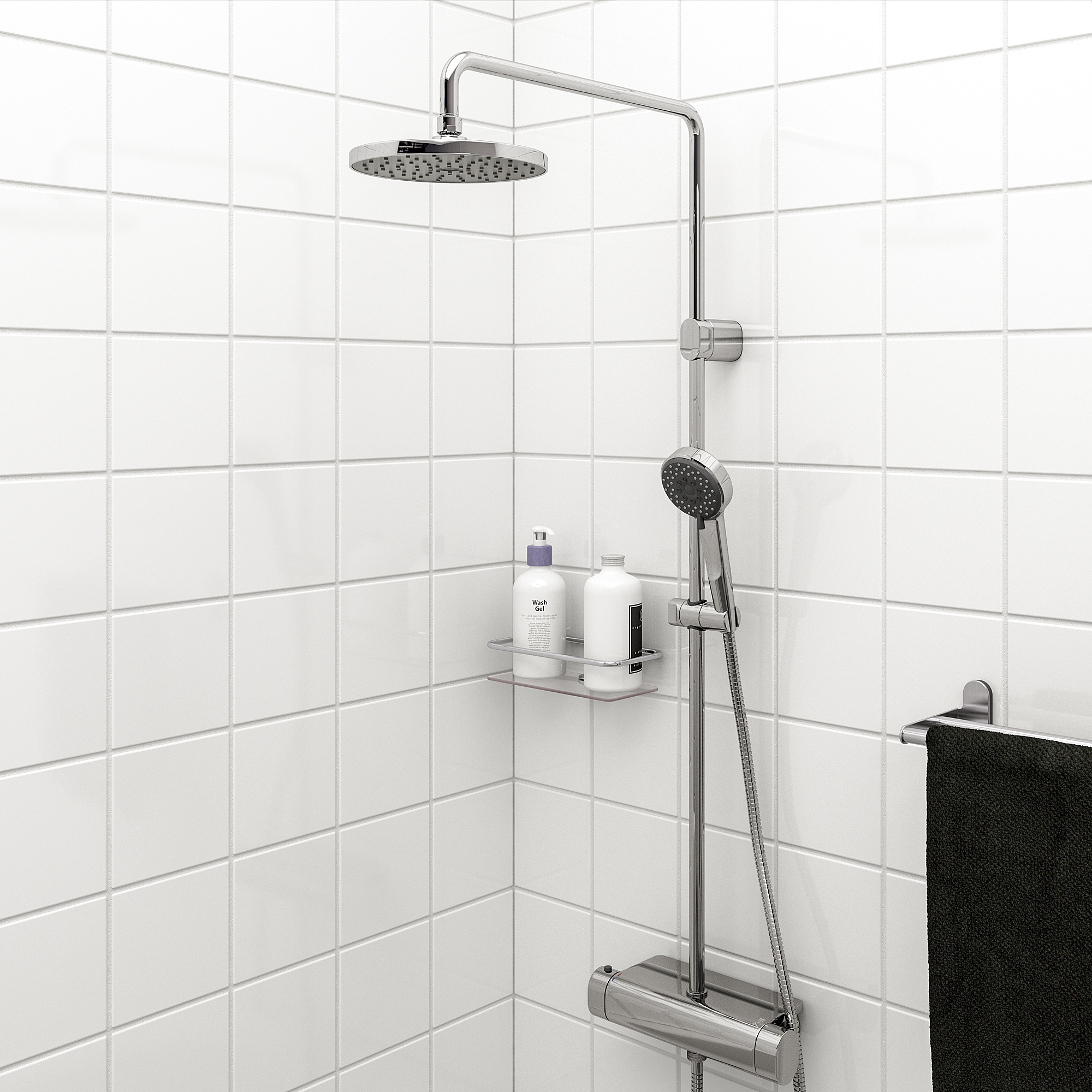

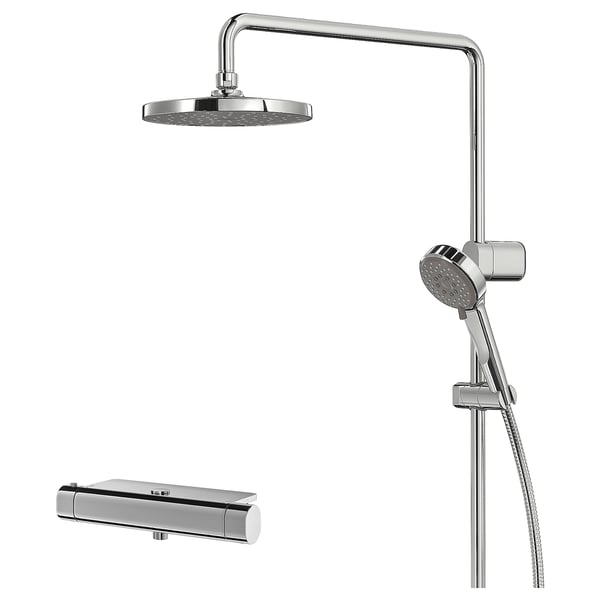

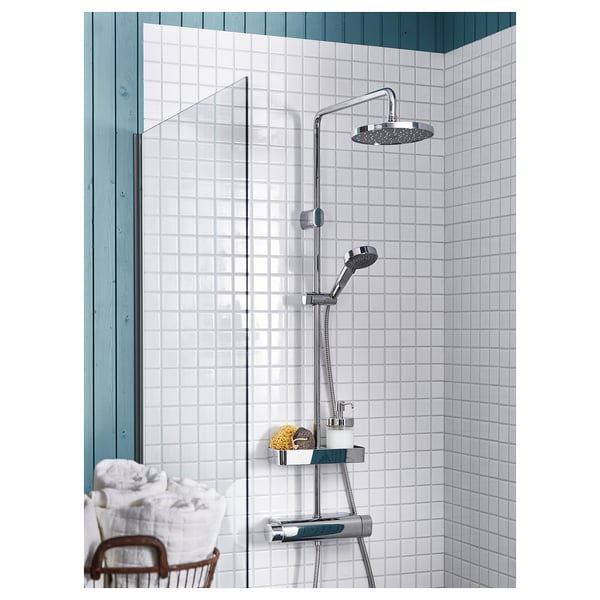

A head/hand shower set with different spray functions. Feel secure with the 38°C safety stop that prevents water from getting too hot, and “cold touch” feature keeps a safe temperature on the mixer bar.
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Nozzle:
- Synthetic rubber
- Inner hose:
- Silicone rubber
- Outer hose:
- Stainless steel
- Pipe:
- Brass, Chrome-plated
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Holder:
- Acetal plastic, Chrome-plated
- Thermostat body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
BROGRUND Shower set with thermostatic mixer203.425.35Advice and care instructions
BROGRUND Shower set with thermostatic mixer203.425.35BROGRUND Shower set with thermostatic mixer203.425.35
3 year guarantee. Read about the terms in the guarantee brochure.

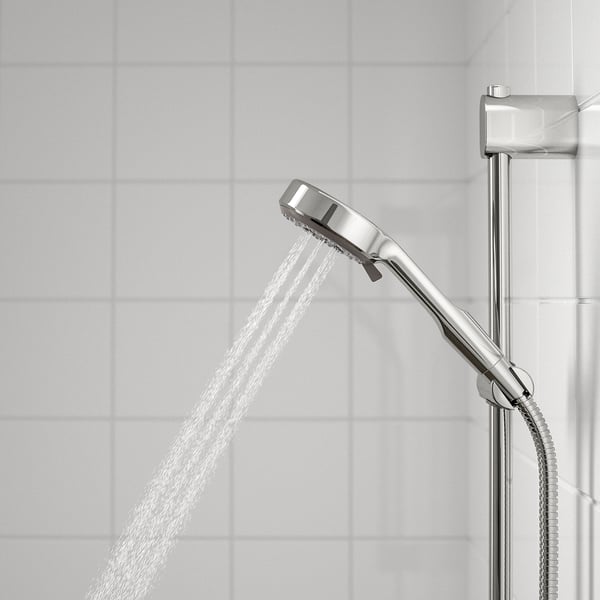

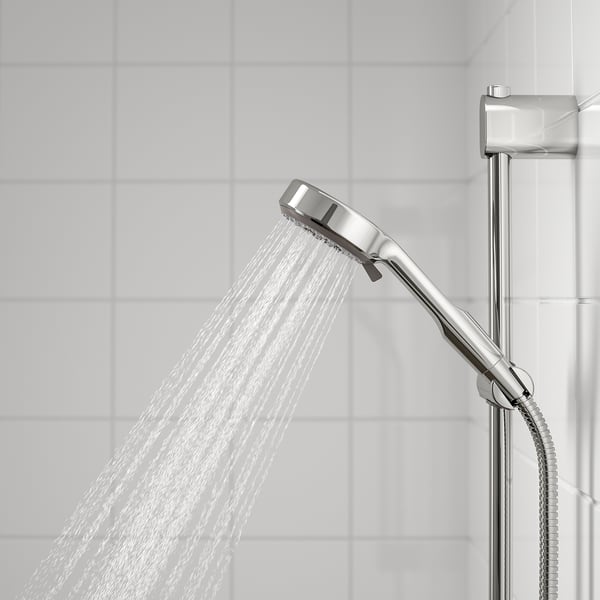

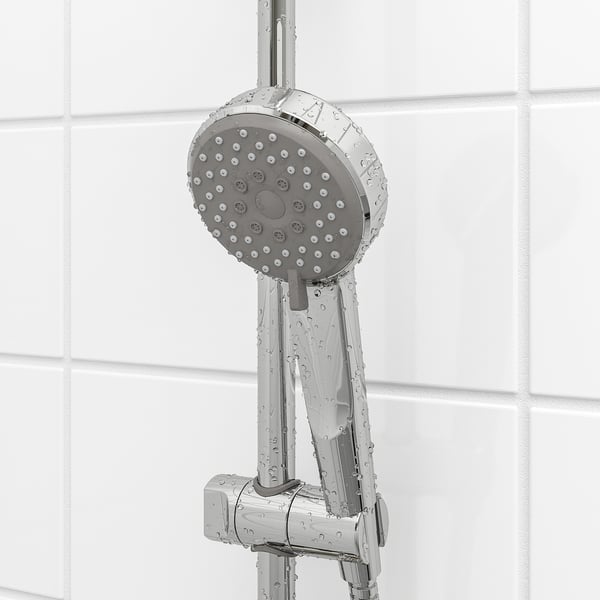

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
The chrome-plated surface is a hard, durable and easy to clean.
H Preutz/N Karlsson

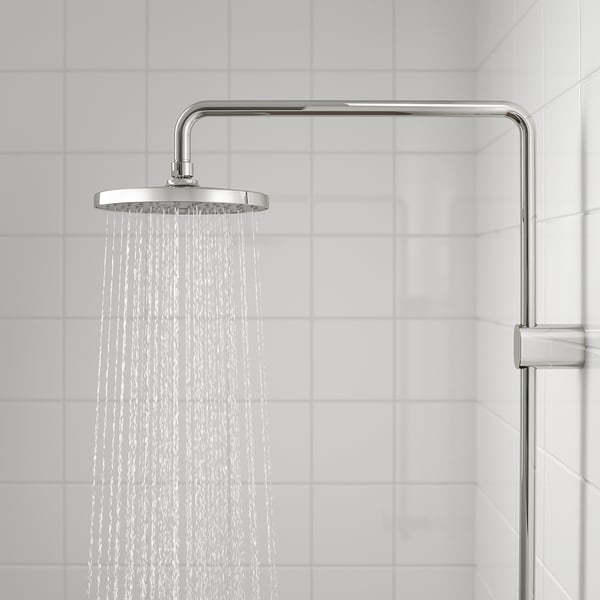

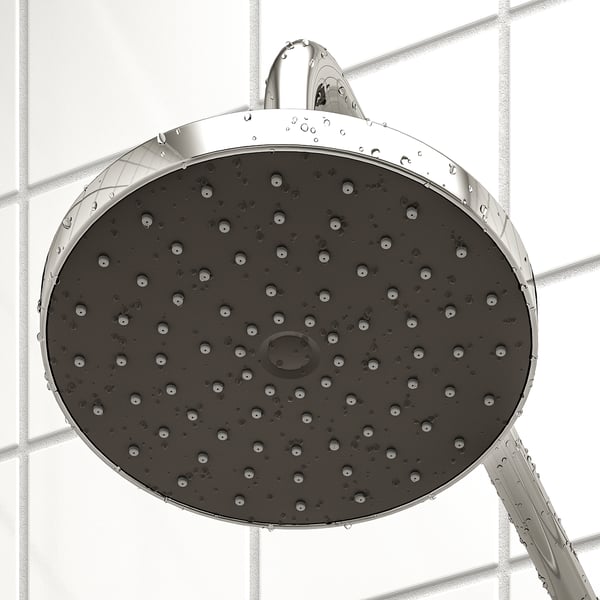

The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.

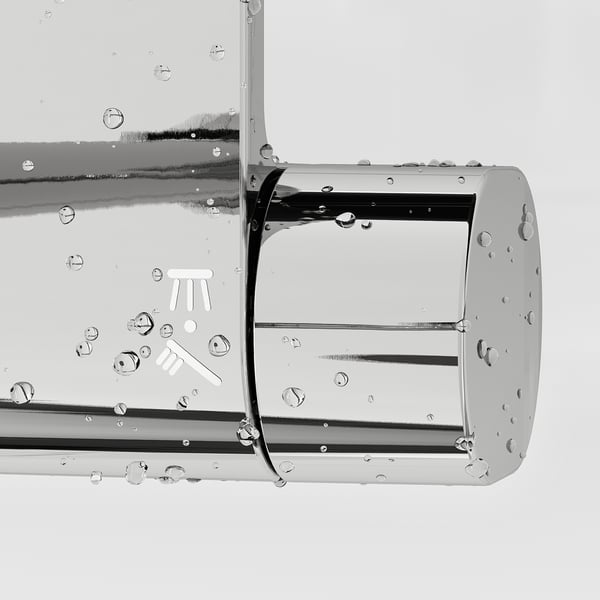

Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.

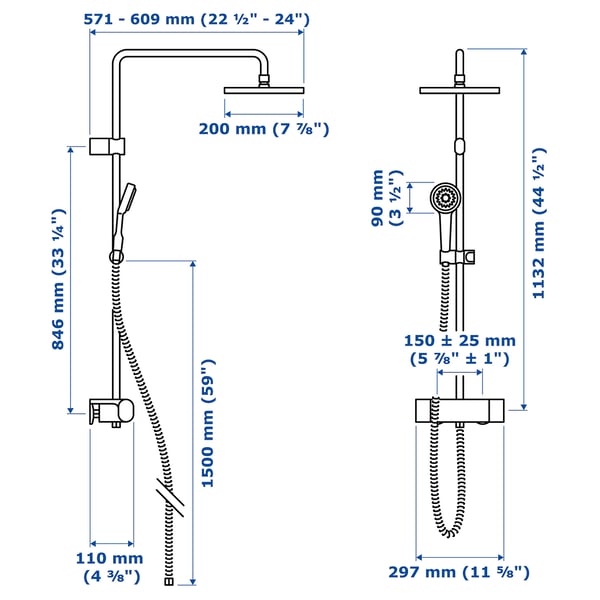

150 mm fixed inlet centres.
Wall fittings included.
Pressure compensating flow regulator included.

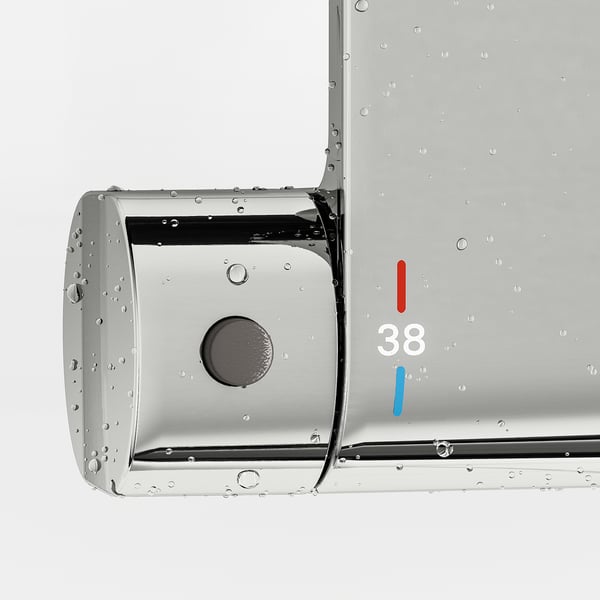

The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
The hand shower consumes 8 l of water/min. and the head shower consumes 9.5 l of water/min.
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Nozzle:
- Synthetic rubber
- Inner hose:
- Silicone rubber
- Outer hose:
- Stainless steel
- Pipe:
- Brass, Chrome-plated
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Holder:
- Acetal plastic, Chrome-plated
- Thermostat body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
- The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
Assembly instructions
BROGRUND Shower set with thermostatic mixer203.425.35Advice and care instructions
BROGRUND Shower set with thermostatic mixer203.425.35BROGRUND Shower set with thermostatic mixer203.425.35
- 203.425.35
1 × BROGRUND
Shower set with thermostatic mixer- Width: 34 cm
- Height: 11 cm
- Length: 86 cm
- Weight: 7.55 kg
Reviews
Customer reviews
Accessories for BROGRUND
Explore more options
Function solution
A shower just the way you like it
Our head and hand showers provide individual comfort with the option to choose between 1, 3 or 5 spray functions. Choose FULL for a wide and even coverage; MESH to boost the force; MASSAGE to vary to flow; or MIST to de-stress with fine, gentle droplets. You can also choose combinations like FULL/MIST, FULL/MESH or FULL/MASSAGE. All shower mixers have a pressure compensating function that reduces water-use and gives you an even flow – even when the water pressure changes.
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
