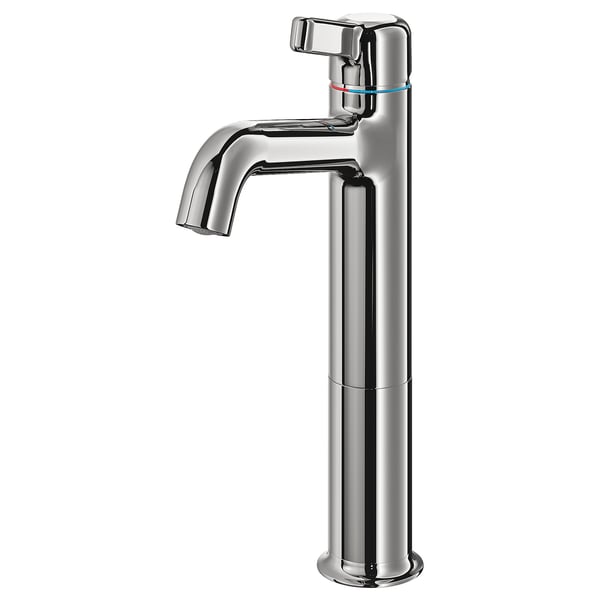

A VOXNAN chrome faucet with a sleek, modern design, featuring a single lever handle.
VOXNAN chrome faucet & sink set

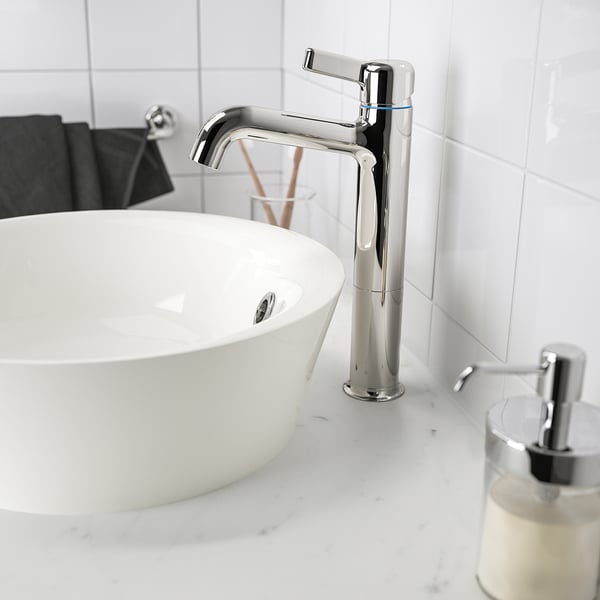

Modern bathroom faucet with chrome finish, sleek handle, and energy-saving mounted on a white sink.

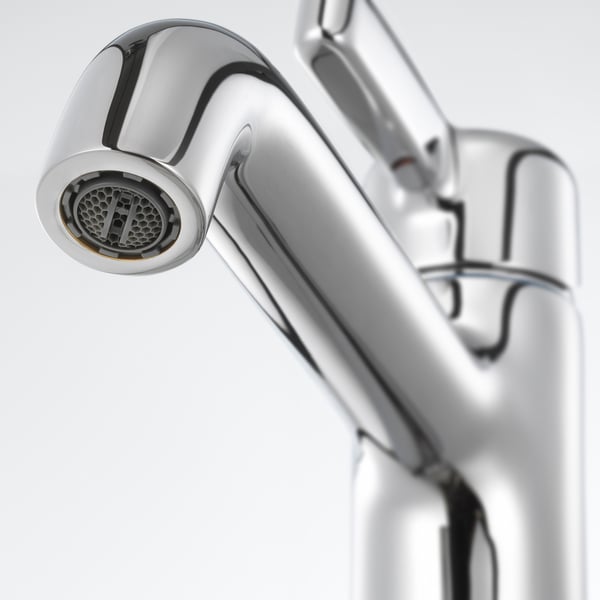

Chrome faucet close-up, sleek design with aerator.

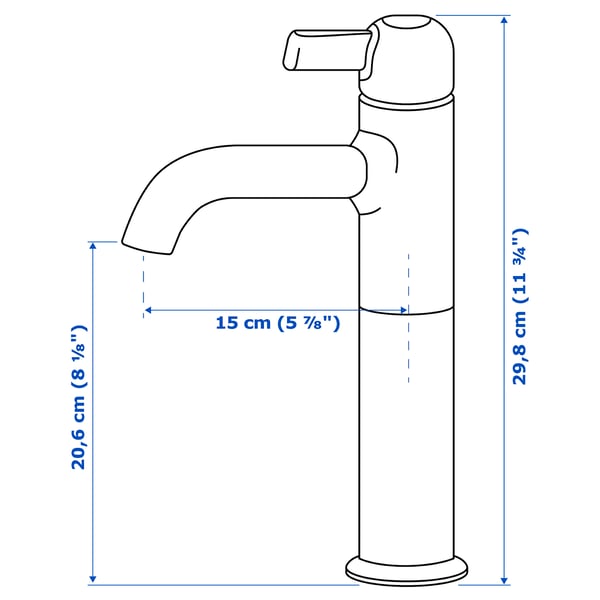

Illustration with measurements for the product: VOXNAN.

VOXNAN Wash-basin mixer tap, tall, chrome-plated

Reward 2490,–
Price incl. tax

How to get it

  • 10 year guarantee

You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.

Article number505.331.66

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.

Hot water is released by turning the lever to the left. It is only then that hot water is consumed.

This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

H Preutz/N Karlsson

  • Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.

    Connection hoses with 3/8" connection included. Connection length: 35 cm.

    A tool is included that makes it easy to install the mixer tap in place.

    Max. temperature hot water system 80°C/176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    Suitable for bathroom countertops only. For mounting behind or to the side of the wash basin according to assembly instructions.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Material

    Body:
    Brass, Metallized
    Spout:
    Brass, Brass, Metallized

    Care

    Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.

    Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.

  • Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.

  • Assembly instructions

    VOXNAN Wash-basin mixer tap, tall505.331.66

    Advice and care instructions

    VOXNAN Wash-basin mixer tap, tall505.331.66VOXNAN Wash-basin mixer tap, tall505.331.66

Technical information

VOXNAN

Wash-basin mixer tap, tall, chrome-plated

Article number505.331.66
Brand NameIKEA
Type of tapWash-basin mixer tap
Max. flow rate at 3 bar5.7 l/min
Annual energy consumption343 kWh/p.a.
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length475 mm (18 3/4")
Hose connection sizeG 3/8" (R10)
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedYes
Third party certified according to local standards byACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF

Measurements

  • Height: 30 cm

  • VOXNAN

    Article number505.331.66
    • Width: 23 cm
    • Height: 7 cm
    • Length: 41 cm
    • Weight: 1.75 kg
    • Package(s): 1
