UTDRAG Built-in extractor hood, stainless steel,

Price incl. tax
2 990,–
Energy efficiency class B
Product fiche
Flexible pipe for fan and charcoal filter sold separately.

5 year guarantee

How to get it

DeliveryChecking availability...
Click & CollectChecking availability...
In storeChecking availability...
Top seller
8 UTDRAG images
Skip images

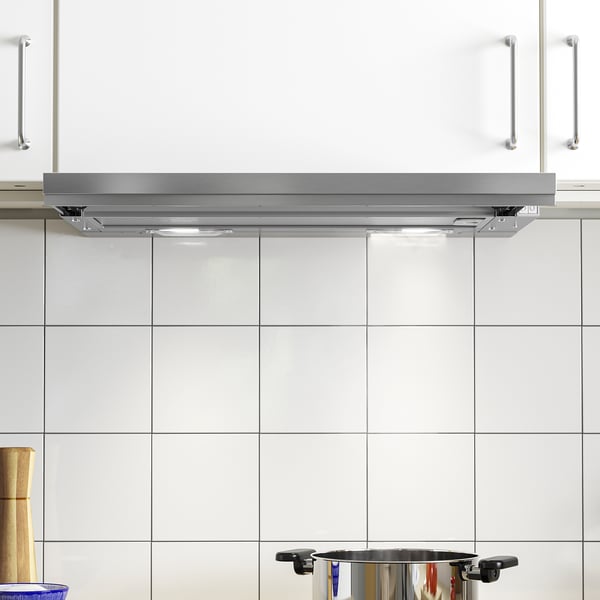

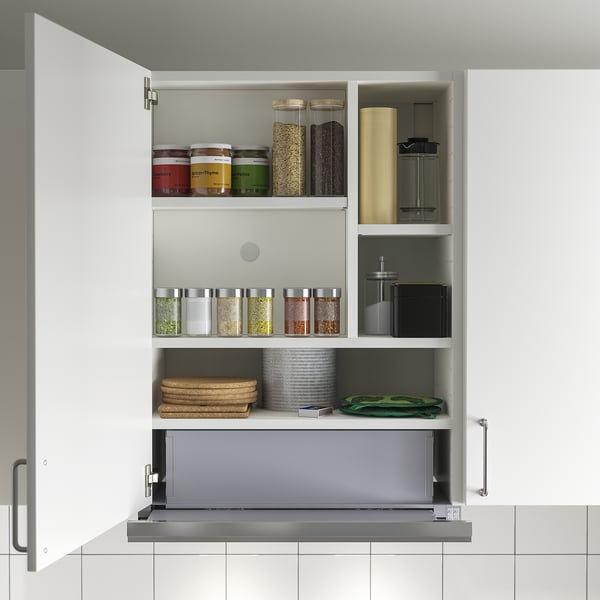

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.

Article number103.891.42

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

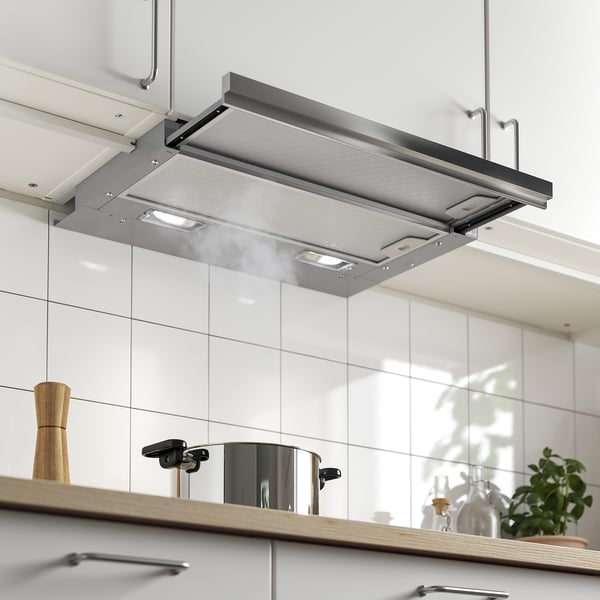

Pulls out to provide a larger exhaust area.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer

IKEA of Sweden

Article number103.891.42

  • Extraction rate in exhausting mode: 340 m³/h.

    Noise level at max. exhaust speed: 67 dB (A).

    Extraction rate in re-circulation mode: 140 m³/h.

    Noise level at max. re-circulation speed: 72 dB (A).

    Voltage: 220-240V.

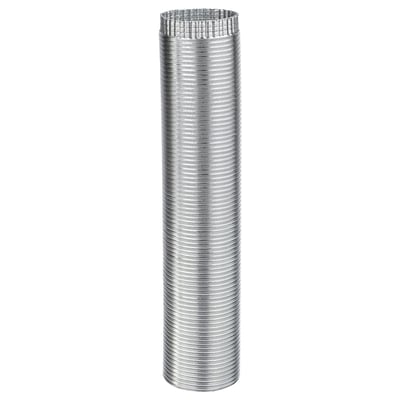

    For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

    For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.

    Built in extractor hood with 3 different speeds.

    Flexible pipe for fan and charcoal filter sold separately.

  • 0Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the CE mark.
  • Assembly instructionsUTDRAG Built-in extractor hood103.891.42
    Other documentsUTDRAG Built-in extractor hood103.891.42UTDRAG Built-in extractor hood103.891.42UTDRAG Built-in extractor hood103.891.42
    Disassembly & Recycling (For industry professionals)UTDRAG Built-in extractor hood103.891.42

Technical information

UTDRAG

Built-in extractor hood

Brand NameIKEA
Model IdentifierUTDRAG 103.891.42
Energy efficiency classB
Annual energy consumption39 kWh/annum
Fluid Dynamic Efficiency18,1 %
Fluid Dynamic Efficiency classC
Lighting Efficiency16 Lux/watt
Lighting Efficiency classD
Grease Filtering Efficiency85,1 %
Grease Filtering Efficiency classB
Air flow at minimum speed in normal use170 m³/h
Air flow at maximum speed in normal use340 m³/h
Air flow at intensive or boost settingn/a m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use54 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use67 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingn/a dB
Power consumption in Off mode0 Watt
Power consumption in standby moden.a. Watt
Air flow at maximum speed in normal use, recirculation140 m³/h
Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation72 dB

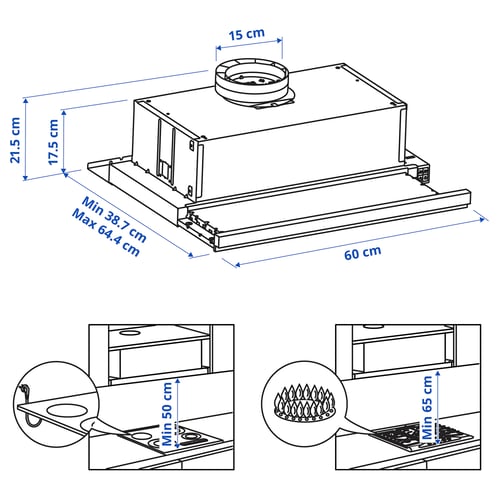

Measurements

Width: 60.0 cm

Min. depth: 38.7 cm

Max. depth: 64.4 cm

Height: 21.5 cm

Weight: 7.60 kg

Cord length: 109.0 cm

Motor power: 110 W

  • UTDRAGArticle number103.891.42

    Width: 38 cm

    Height: 27 cm

    Length: 68 cm

    Weight: 8.80 kg

    Package(s): 1
