UNDERVERK Built-in extractor hood, stainless steel,

Price incl. tax
5 990,–
Energy efficiency class A+
Product fiche
Flexible pipe for fan and charcoal filter sold separately.

5 year guarantee

How to get it

DeliveryChecking availability...
Click & CollectChecking availability...
In storeChecking availability...
Top seller
8 UNDERVERK images
Skip images

A powerful hood hidden in the cabinet ‒ you just choose a door you like to get a uniform look in the kitchen. A LED lighting strip gives even work lighting ‒ making cooking more comfortable.

Article number703.891.39

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

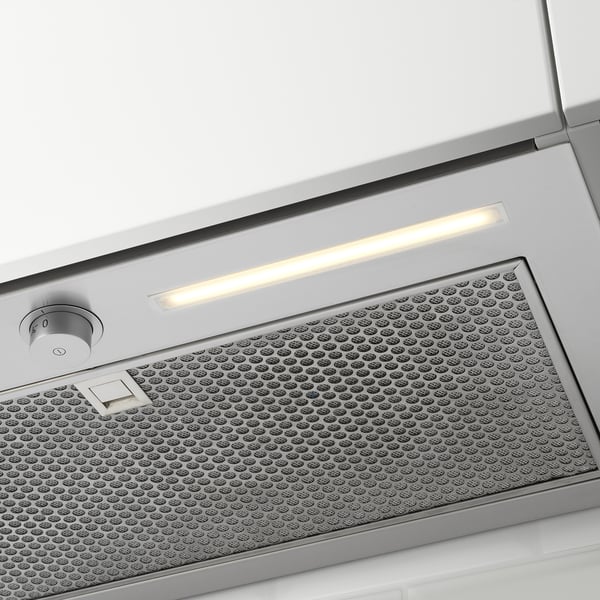

LED light source included; effectively illuminates the cooking surface and provide energy saving.

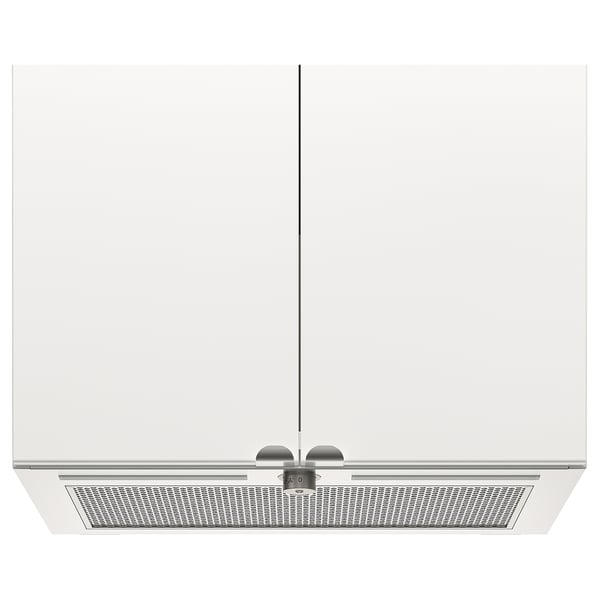

Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer

IKEA of Sweden

Article number703.891.39

  • Extraction rate in exhausting mode: 630 m³/h.

    Noise level at max. exhaust speed: 64 dB (A).

    Extraction rate in re-circulation mode: 365 m³/h.

    Noise level at max. re-circulation speed: 79 dB (A).

    Voltage: 220-240V.

    Wall mounted extractor hood with 3 different speeds.

    For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

    For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

    Flexible pipe for fan and charcoal filter sold separately.

  • 0Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the CE mark.
  • Assembly instructionsUNDERVERK Built-in extractor hood703.891.39
    Other documentsUNDERVERK Built-in extractor hood703.891.39UNDERVERK Built-in extractor hood703.891.39UNDERVERK Built-in extractor hood703.891.39
    Disassembly & Recycling (For industry professionals)UNDERVERK Built-in extractor hood703.891.39

Technical information

UNDERVERK

Built-in extractor hood

Brand NameIKEA
Model IdentifierUNDERVERK 70389139
Energy efficiency classA+
Annual energy consumption39 kWh/annum
Fluid Dynamic Efficiency34.8 %
Fluid Dynamic Efficiency classA
Lighting Efficiency37.0 Lux/watt
Lighting Efficiency classA
Grease Filtering Efficiency95.1 %
Grease Filtering Efficiency classA
Air flow at minimum speed in normal use240 m³/h
Air flow at maximum speed in normal use630 m³/h
Air flow at intensive or boost settingn/a m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use45 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use64 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingn/a dB
Power consumption in Off mode0 Watt
Power consumption in standby mode0 Watt
Air flow at maximum speed in normal use, recirculation365 m³/h
Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation79 dB

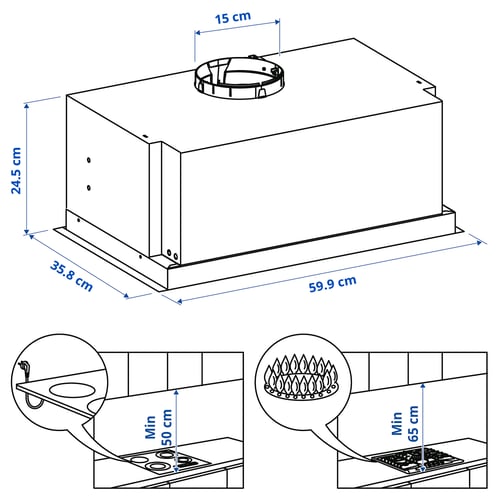

Measurements

Width: 59.9 cm

Depth: 35.8 cm

Height: 24.5 cm

Weight: 11.00 kg

Cord length: 1.1 m

Motor power: 250 W

  • UNDERVERKArticle number703.891.39

    Width: 45 cm

    Height: 39 cm

    Length: 67 cm

    Weight: 11.30 kg

    Package(s): 1
