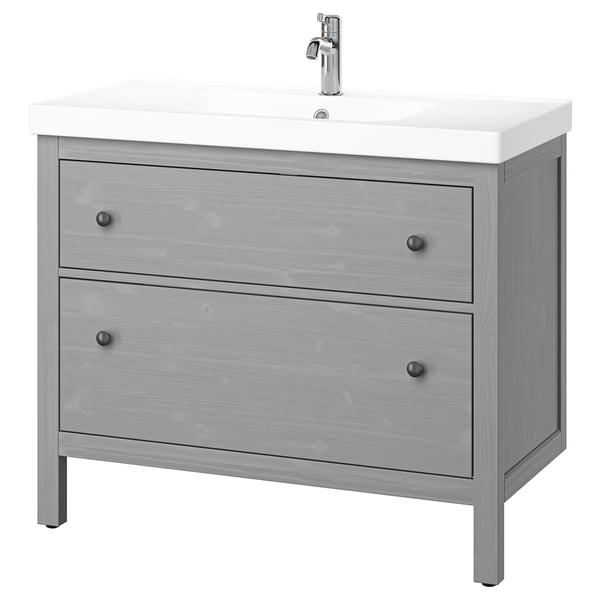

HEMNES / ORRSJÖN Wash-stnd w drawers/wash-basin/tap, grey, 102x49x89 cm
How to get it
A crafted Scandinavian expression with clean lines combined with smooth-running drawers and a water-saving mixer tap. The grey finish feels warm and timeless.
Product details
Smooth-running and soft-closing drawers with pull-out stop.
You can easily see and reach your things because the drawers pull out fully.
The included water trap is easy to connect to the drain, washing machine and dryer because it is flexible.
Unique water trap design gives room for a full sized drawer.
Good to know
Knobs included.
Strainer and water-trap are included.
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Two persons are needed for the assembly of this furniture.
Please note that the wash-basin may be up to 2 cm wider than the wash-stand to protect it from water leakage.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Basematerial/ Drawer front:
- Solid pine, Adhesive, Stain, Clear acrylic lacquer
- Drawer sides/ Drawer back/ Drawer divider:
- Solid pine, Adhesive, Clear acrylic lacquer
- Drawer bottom:
- Particleboard, High-pressure melamine laminate, High-pressure melamine laminate, Plastic edging
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a cloth dampened in a mild cleaner.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
HEMNES Wash-stand with 2 drawers603.487.95ORRSJÖN Wash-basin705.450.69VOXNAN Wash-basin mixer tap005.332.58RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
ORRSJÖN Wash-basin705.450.69VOXNAN Wash-basin mixer tap005.332.58VOXNAN Wash-basin mixer tap005.332.58Technical information
VOXNAN
Wash-basin mixer tap, chrome-plated
Article number005.332.58| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

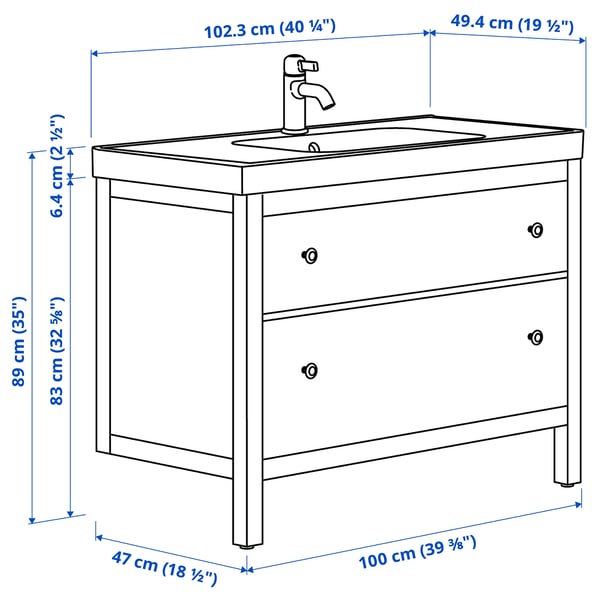

Measurements
- Width: 102 cm
- Wash-stand width: 100 cm
- Depth: 49 cm
- Height: 89 cm
Packaging
HEMNES
Article number603.487.95- Width: 48 cm
- Height: 8 cm
- Length: 96 cm
- Weight: 11.99 kg
- Package(s): 1
- Width: 35 cm
- Height: 9 cm
- Length: 111 cm
- Weight: 14.72 kg
- Package(s): 1
ORRSJÖN
Article number705.450.69- Width: 55 cm
- Height: 19 cm
- Length: 106 cm
- Weight: 30.20 kg
- Package(s): 1
VOXNAN
Article number005.332.58- Width: 18 cm
- Height: 7 cm
- Length: 35 cm
- Weight: 1.36 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
