How to get it
The wall frame is teamed up with a sliding mirror so you can get up close and personal. There’s ample storage space in the cabinet below while the container and drill-free hooks keep the wash-basin area tidy.
Product details
Cabinet code ENHET B111
Different types of storage complement each other. The wash-basin cabinets with drawers gives a good overview of smaller items anda mirror attached to the wall frame, it is easier to prepare for the day ahead.
The handy hooks and container free up space around the wash-basin without having to drill holes in the walls.
You can easily add ENHET accessories to extend the use of your storage combination. And best of all – you don’t have to drill. Sold separately.
The unique wedge dowels make assembly easy and the fittings are nearly invisible.
With white doors and drawer fronts you create a clean, bright and fresh expression that you can match with accents in all colours of the rainbow. Easy to enjoy and always in style.
Good to know
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Knob or handle, sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Side panel:
- Particle- and fibreboard with honeycomb paper filling (100% recycled paper), Plastic foil, Plastic edging
- Bottom panel/ Back rail:
- Particleboard, Plastic foil
- Drawer:
- Steel, Epoxy/polyester powder coating
- Drawer bottom:
- Fibreboard, Plastic foil
- Basematerial:
- Particleboard
- Front side/ Backside:
- Plastic foil
- Edge:
- Plastic edging
- Frame/ Mounting plate:
- Galvanized steel, Powder coating
- Mirror:
- Glass, Plastic foil
- Plastic fitting:
- Acetal plastic
- Tubes:
- Steel, Powder coating
- Shelf:
- Galvanized steel, Powder coating
- Wedge:
- Steel, Epoxy/Acrylic coating
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Ceramics, Coloured glaze
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.
Safety and compliance
Assembly and documents
Assembly instructions
Technical information
PILKÅN
Wash-basin mixer tap, chrome-plated
Article number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

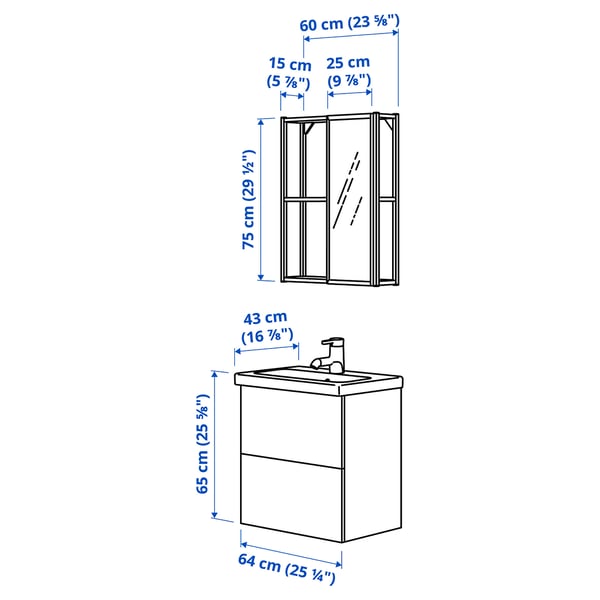

Measurements
- Width: 64 cm
- Depth: 43 cm
- Height: 65 cm
Packaging
This product comes as 7 packages.
ENHET
Article number804.405.09- Width: 42 cm
- Height: 12 cm
- Length: 65 cm
- Weight: 13.84 kg
- Package(s): 1
ENHET
Article number804.521.68- Width: 31 cm
- Height: 4 cm
- Length: 66 cm
- Weight: 4.40 kg
- Package(s): 1
ENHET
Article number404.490.74- Width: 26 cm
- Height: 4 cm
- Length: 81 cm
- Weight: 3.07 kg
- Package(s): 1
ENHET
Article number004.489.67- Width: 20 cm
- Height: 8 cm
- Length: 76 cm
- Weight: 5.37 kg
- Package(s): 1
PILKÅN
Article number505.328.50- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
TVÄLLEN
Article number504.508.25- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
