Related products
3 year guarantee. Read about the terms in the guarantee brochure.
3 year guarantee
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Inner hose:
- Silicone rubber
- Outer hose/ Pipe:
- Stainless steel
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Holder:
- Acetal plastic, Chrome-plated
- Thermostat body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
BROGRUND Shower set with thermostatic mixer806.247.68Advice and care instructions
BROGRUND Shower set with thermostatic mixer806.247.68
This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
The chrome-plated surface is a hard, durable and easy to clean.
H Preutz/N Karlsson
The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
150 mm fixed inlet centres.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
The hand shower consumes 6.8 l of water/min. and the head shower consumes 9.5 l of water/min.
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Inner hose:
- Silicone rubber
- Outer hose/ Pipe:
- Stainless steel
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Holder:
- Acetal plastic, Chrome-plated
- Thermostat body:
- Brass
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
- The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
Assembly instructions
BROGRUND Shower set with thermostatic mixer806.247.68Advice and care instructions
BROGRUND Shower set with thermostatic mixer806.247.68
- 806.247.68
1 × BROGRUND

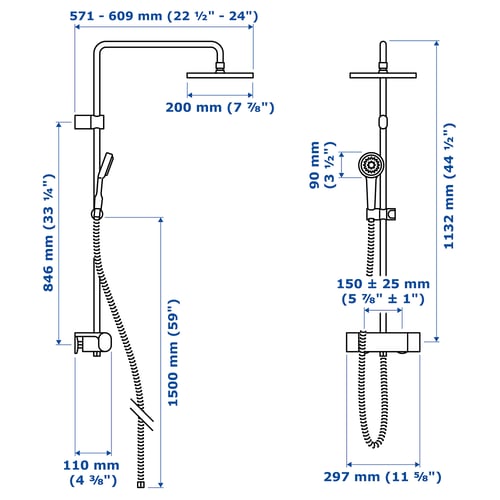

Shower set with thermostatic mixer- Width: 34 cm
- Height: 11 cm
- Length: 86 cm
- Weight: 7.20 kg
